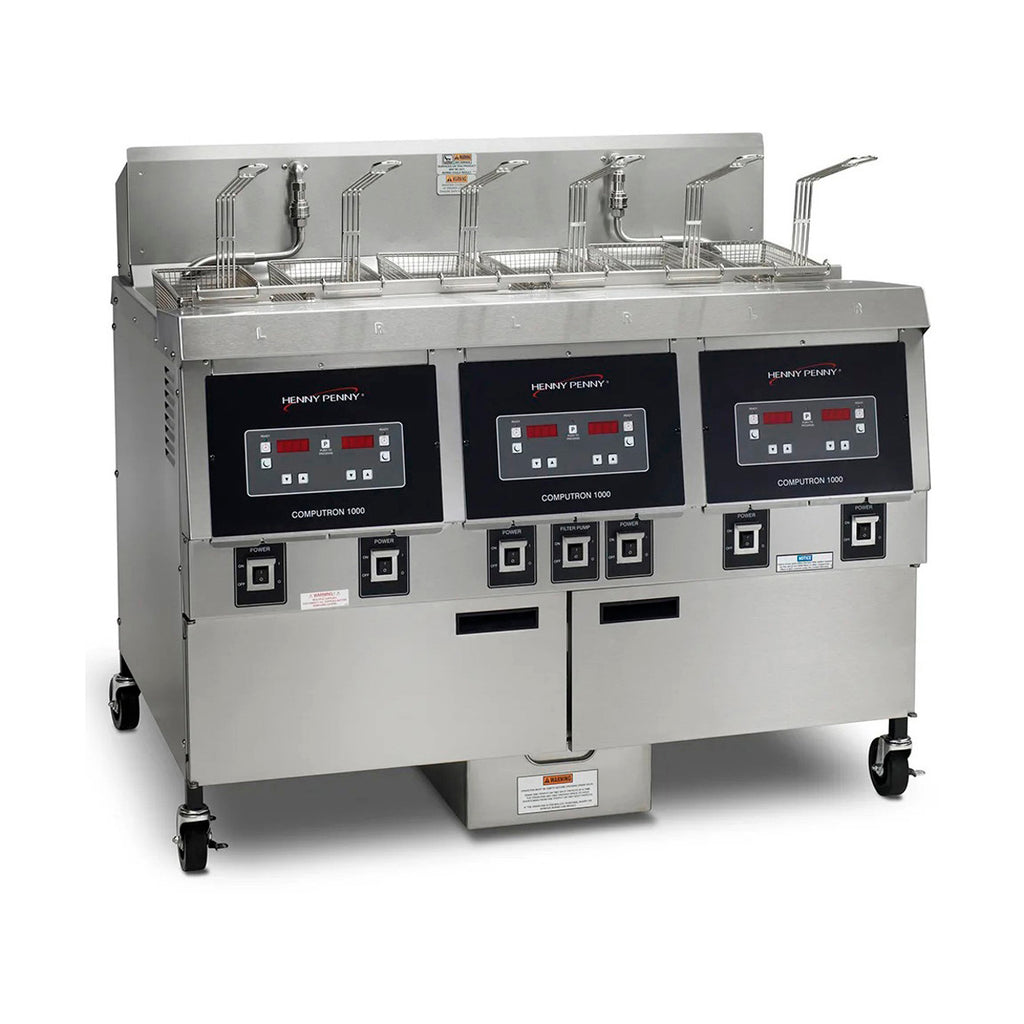

Henny Penny OFE323.06 49-3/8" 3-Well Electric Open Fryer, 3 x 65 lb. Vats, 43.2 kW, 3-Phase, Computron 8000, Built-In Filtration
A 49-3/8" 3-well electric open fryer with built-in filtration for high-volume frying.
The Henny Penny OFE323.06 is a 320 Series open fryer for quick-service kitchens, chicken programs, restaurants and caterers that fry in volume. Its three full vats hold 65 lb. of oil each, heated by immersed elements rated 43.2 kW in total. A built-in filter system filters the hot oil and returns it to the vat in minutes, and the Computron 8000 control handles cook timing. It stands 49-3/8" wide on 4 heavy-duty casters, 2 locking.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 37-3/8" depth. Plan the electrical connection and the 30" of front space for the filter pan before delivery.
The filter system filters hot oil and returns it to the vat in minutes, so staff never carry hot oil. Frequent filtering extends oil life and keeps food quality steady.
Immersed elements, 14.4 kW per well, bring the oil back to temperature quickly between loads.
The Computron 8000 stores 12 cook cycles, has melt, idle and clean-out modes, load compensation and optional filter prompts.
Heavy-duty stainless steel vats with a cold zone below the elements, high-limit protection and a stainless steel cabinet on locking casters.
It runs on 3-phase power: 208V, 240V or 440-480V, 60 Hz, depending on configuration. Each well needs its own connection, about 39.9 amps per well at 208V with a full vat. Call us to confirm the voltage of this configuration before ordering.
It is 49-3/8" wide, 37-3/8" deep and 44" high. Leave 30" in front to remove the filter pan. It ships crated at 55" x 39" x 54".
65 lb. (30 L) per vat, 195 lb. across the three vats. The cold zone below the elements helps extend oil life.
It stores 12 programmable cook cycles, has melt, idle and clean-out modes, load compensation and proportional control, optional filter prompts with filter tracking, and a 16-character display with several languages.
The fryer filters the hot oil and returns it to the vat in minutes, with no separate pump or pan to handle. It ships with a filter screen and filter envelope; Henny Penny does not cover filter system failures caused by non-OEM filters.
Henny Penny covers parts for 2 years and labor, including up to 200 miles round-trip travel, for 1 year from installation; baskets are covered for 90 days. The fry pot is covered up to 7 years from manufacture: fully replaced for the first 3 years, then replaced or credited with freight and labor on the owner. Register the fryer online with Henny Penny within 10 days of installation or the warranty is not honored.
Specs
| Manufacturer | Henny Penny |
|---|---|
| Model Number | OFE323.06 |
| Base Model | OFE-323 |
| Configuration Code | .06 |
| Series | 320 Series Electric Open Fryer |
| Quantity | 1/Each |
| Shipping Weight | 523 lb. |
| Crated Size | 55" L x 39" D x 54" H67 cu. ft. |
| Width | 49-3/8 Inches |
| Depth | 37-3/8 Inches |
| Height | 44 Inches |
| Front Clearance | 30 Inches to Remove the Filter Pan |
| Available Voltages | 208V, 240V or 440-480V, 3-Phase, 60 Hz, by Configuration |
| Amps per Well | 39.9 at 208V37.2 at 240V17.5 at 440-480VFull Vat Values |
| Wiring | 3 Wires + GroundSeparate Electrical Connection for Each Well |
| Cord and Plug | Contact Henny PennyUnits Shipped Without Cord and Plug Need One Installed On Site by a Qualified Electrician |
| Heating | Immersed Electric Elements |
| Power | 14.4 kW per Well43.2 kW Total |
| Capacity | 3 x 65 lb. = 195 lb. Oil |
| Oil Capacity per Full Vat | 65 lb. or 30 L |
| Oil Capacity per Split Vat | 25 lb. or 12 L |
| Number of Wells | 3 |
| Vat Type | Full Vats |
| Cold Zone | Below the Heating Elements |
| Safety | High-Limit Temperature Protection |
| Controls | Computron 800012 Programmable Cook CyclesMelt, Idle and Clean-Out ModesLoad Compensation and Proportional ControlOptional Filter Prompt and Filter Tracking16-Character Digital Display, Multiple Languages |
| Filtration | Built-In, Filters and Returns Hot OilSingle Vat/Sequential Filter Pan or Multi-Vat Filter Pan |
| Fry Vats | Heavy-Duty Stainless Steel |
| Exterior | Stainless Steel |
| Casters | 4 Heavy-Duty Casters, 2 Locking |
| Ships With | Fry Baskets: 1 Full or 2 Half per Well, Chosen at Order1 Basket Support per VatFilter Screen and Filter Envelope |
| Henny Penny Options | Fryer Shortening ShuttleFry Well CoversFilter Rinse Hose or Direct Connect Shortening Disposal |
| Certifications | cULus, UL EPH, CE, ENERGY STAR |
| ENERGY STAR Listing | OFE-32#85% Cooking Energy Efficiency, 84% Split Vat |
| Warranty | 2 Years Parts, 1 Year Labor |
| Fry Pot Warranty | 7 Years |
| Warranty Detail | Labor and Up to 200 Miles Round-Trip Travel in Year 1Baskets 90 DaysRegister Online Within 10 Days of Installation |
| Fry Pot Coverage | Years 1-3: Replaced, Parts, Labor and Freight CoveredYears 4-7: Replaced or Credited, Owner Pays Freight and Labor |
