Description

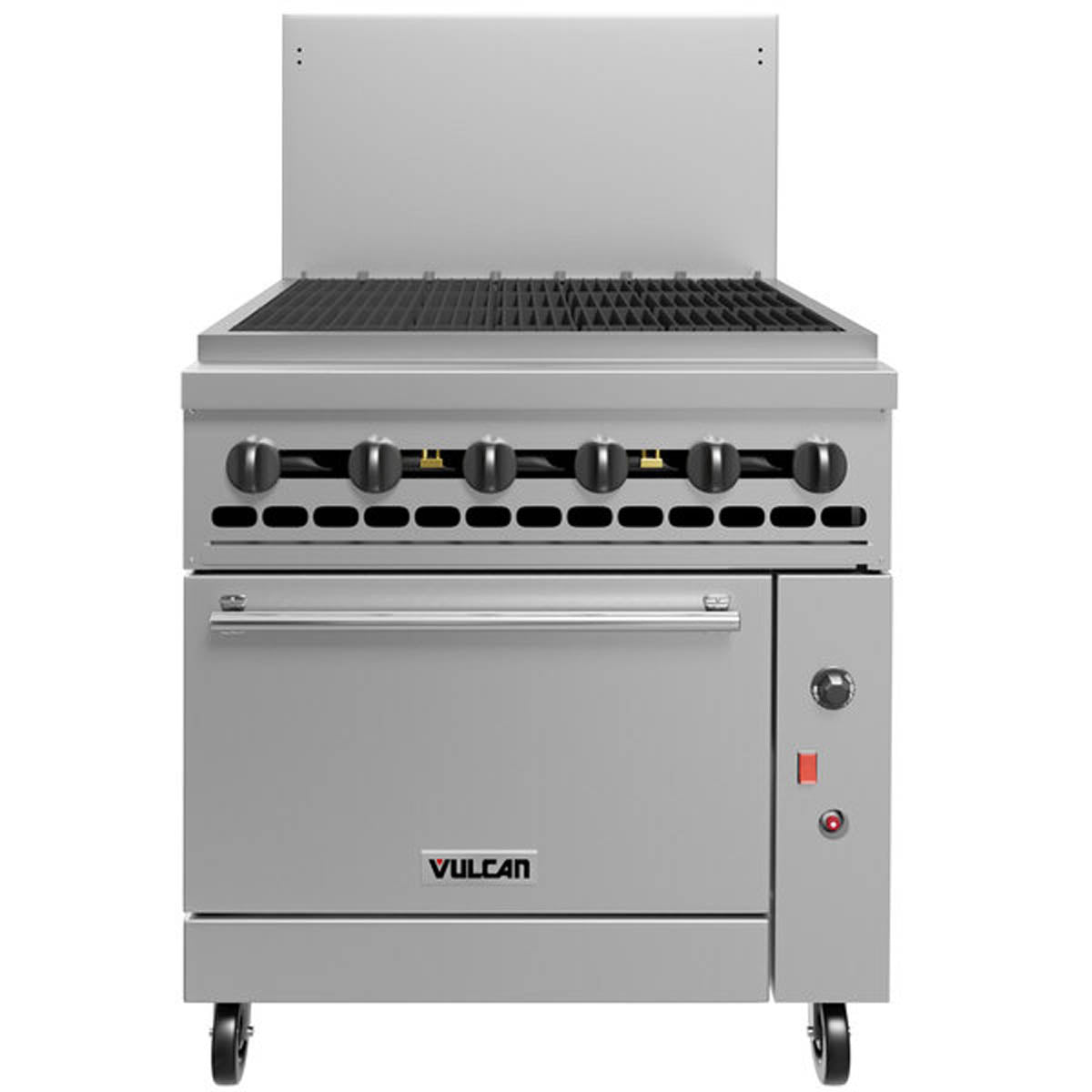

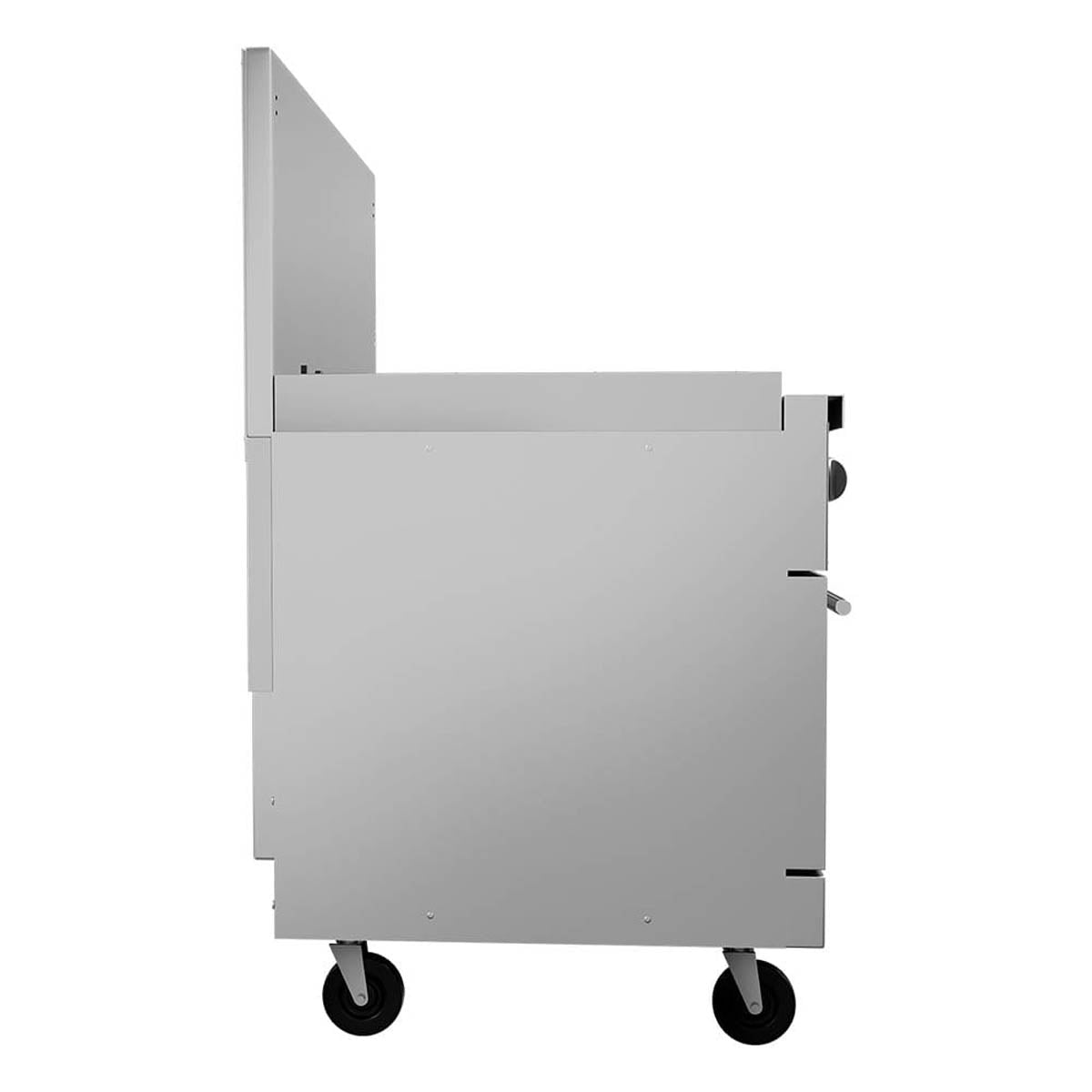

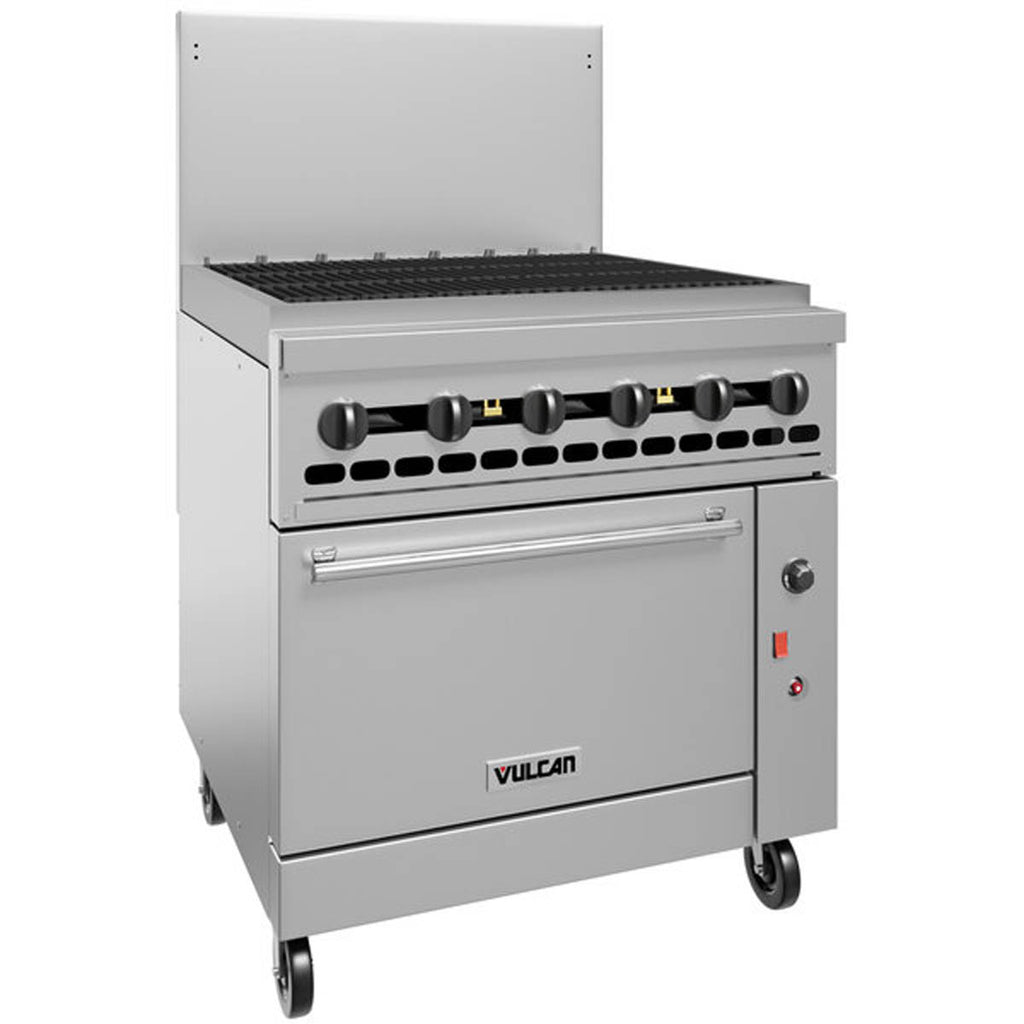

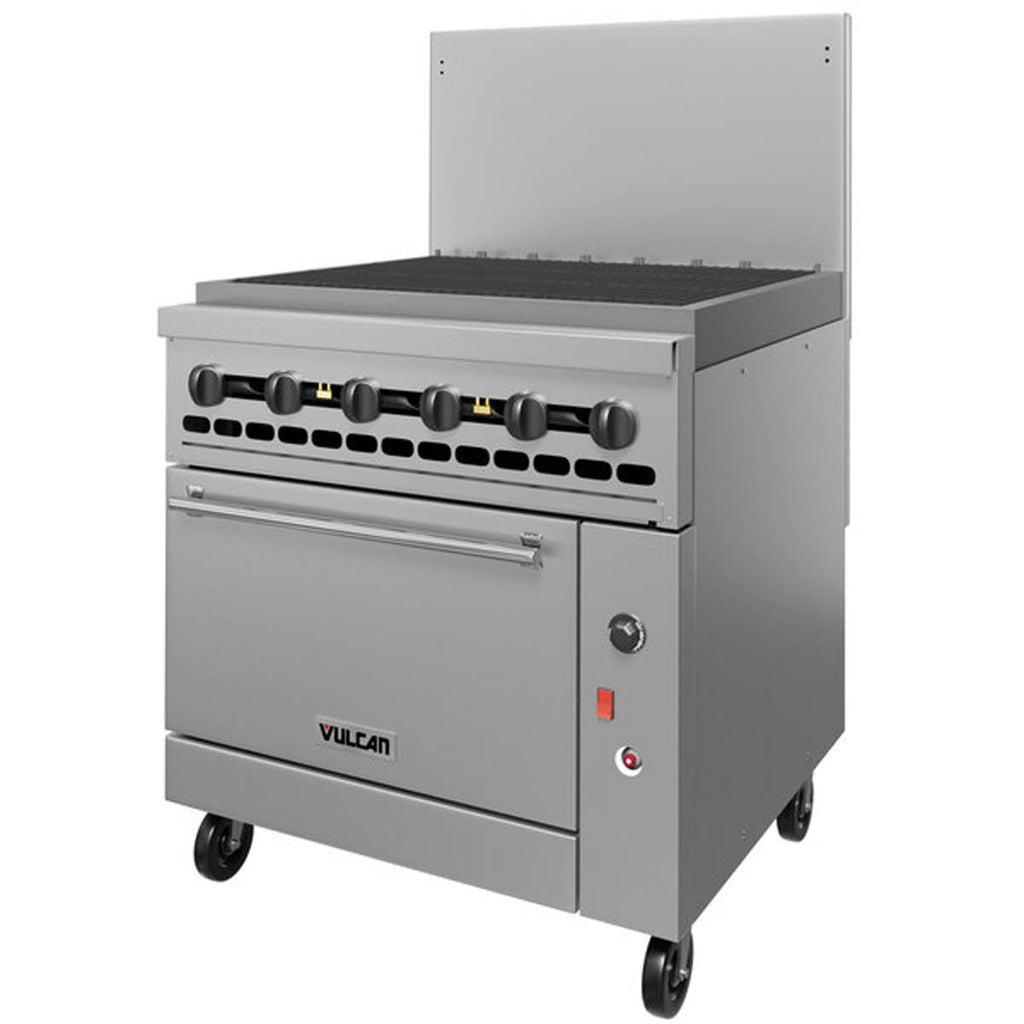

Vulcan 36C-36CBN Commercial Gas Range
The Vulcan 36C-36CBN is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 36.07 inches wide, 33.96 inches deep and 58.12 inches high. The top configuration is (1) charbroiler. Its exterior specification is stainless steel front & sides.
Configuration and daily use
- Top: (1) charbroiler
- Number Of Ovens: 1
- Oven Type: convection oven
- Control Type: manual control
- Base Type: oven base
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | 36C-36CBN |
| Weight | 624 lbs |
| Width | 36.07 in. |
| Depth | 33.96 in. |
| Height | 58.12 in. |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Gas Type | natural gas |
| Base Type | oven base |
| Oven Type | convection oven |
| Number Of Ovens | 1 |
| Control Type | manual control |
| Top Configuration | charbroiler |
| Exterior Finish | stainless steel front & sides |
| Top | (1) charbroiler |
| Vent | backriser with hi-shelf |
| Total BTU | 131.000 |
| Oven BTU | 35,000 |
| Griddle/Charbroiler BTU | 96,000 |
| Griddle/Charbroiler Location | full surface |
Planning your installation
Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
