Description
A 27" mega top sandwich prep table that keeps 12 pans of ingredients cold at the cutting board, with storage below.
The Atosa MSF8305GR is built for sandwich, salad and burrito lines: 12 1/6-size pans sit in a deep, 3-row mega top rail above a 9-1/4" cutting board, and a 7.2 cu. ft. refrigerated base holds backup product behind 1 self-closing door. It holds 35°F to 38°F, plugs into a standard 115V outlet (2.3 amps) and rolls on 2" casters. The work surface is 34-1/4" high.
Will it fit · Will it plug in
- Outside size
- 27-1/2" W × 36-3/4" D × 46-5/8" H (with 2" casters)
- Work surface
- 34-1/4" high (Atosa drawing)
- Doors open
- 55-3/8" deep with the door open (Atosa drawing)
- Power
- 115V, 60 Hz, 1-phase, 2.3 amps; NEMA 5-15P plug
- Shipping weight
- 212 lb. (170 lb. net)
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width. Leave room behind the unit for the rear-mounted compressor to breathe, as Atosa asks.
Pans at the board
12 1/6-size, 6" deep poly pans come installed, held by locking divider bars over a removable stainless liner.
Even cold air
Atosa's concentrated airflow design moves cold air around the pans and through the cabinet.
Storage below
7.2 cu. ft. base with 1 pre-installed shelf and self-closing doors that stay open for loading.
Add-ons that fit
Double overshelf MROS-2RE, night cover MSF8305234000, and drawer cartridge MSF8309227A00 (all sold separately).
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight on pre-installed 2" casters.
- Inspect it for damage before signing for the delivery.
Questions buyers ask
What outlet does it need?
A grounded 115V outlet for the NEMA 5-15P plug (2.3 amps). Atosa's warranty does not cover damage from extension cords, low voltage or voltage drops.
What pans come with it?
12 1/6-size, 6" deep poly pans, pre-installed. The locking divider bars can be moved, and Atosa sells 12" cross bars (part 82021902).
Which overshelf and night cover fit?
Atosa lists the MROS-2RE double overshelf and the MSF8305234000 night cover for this table.
Can I add drawers?
Yes. Atosa's field-retrofittable drawer cartridge MSF8309227A00 fits this table; each set replaces one door and holds up to 100 lb per drawer.
Will it fit through my door?
It is 27-1/2" wide, 36-3/4" deep and 46-5/8" tall on its casters. Atosa does not publish a minimum doorway, so measure against the 27-1/2" width.

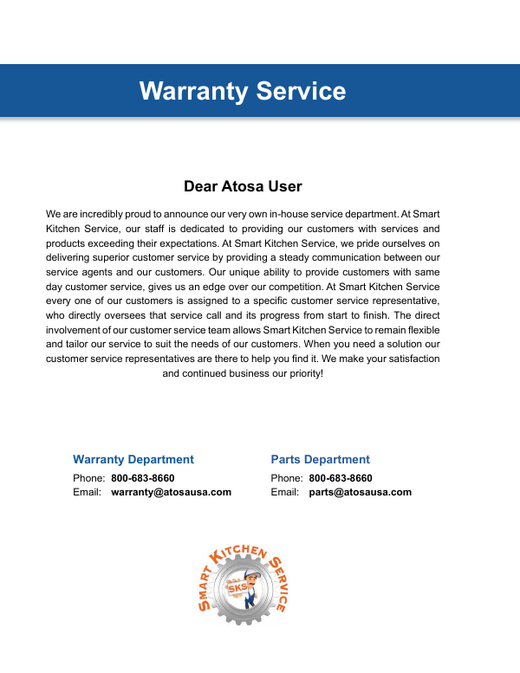

What does the warranty cover?
Atosa's 2026 refrigeration warranty gives 3 years parts and labor and 5 years on the sealed compressor (the extra 2 years cover compressor parts only), counted from the date Atosa ships it. Claims go through Atosa with the model, serial number and proof of purchase.
Do you match lower prices?
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.
Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | MSF8305GR |
| Quantity | 1/Each |
| Shipping Weight | 212 lb. |
| Net Weight | 170 lb. |
| Width | 27-1/2 Inches |
| Depth | 36-3/4 Inches |
| Height | 46-5/8 Inches (with 2" casters) |
| Work Surface Height | 34-1/4 Inches |
| Depth with Doors Open | 55-3/8 Inches |
| Cutting Board Depth | 9-1/4 Inches |
| Caster Size | 2 Inches |
| Voltage | 115 Volts |
| Amps | 2.3 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Capacity | 7.2 cu. ft. |
| Temperature Range | 35 - 38 Degrees F |
| Horsepower | 1/7 hp |
| Refrigerant | R290 (Hydrocarbon) |
| Compressor Location | Rear Mount |
| Controls | Electronic Temperature Controller |
| Top Type | Mega Top |
| Pans Included | 12 1/6-Size, 6" Deep Poly Pans |
| Exterior Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Number of Doors | 1 |
| Door Features | Self-Closing with Stay-Open FeatureRecessed HandlesMagnetic Gaskets |
| Number of Shelves | 1 |
| Pan Rail | Removable Stainless Steel LinerLocking Divider Bars |
| Casters | Pre-Installed 2" Casters |
| Overshelf | MROS-2RE (Optional) |
| Night Cover | MSF8305234000 (Optional) |
| Cross Bar | 82021902, 12" (Optional) |
| Drawer Cartridge | MSF8309227A00 (Optional) |
| Certifications | ETL Sanitation, cETLus |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
