Description
2 freezer drawers of ready-to-use ingredients right at the cook line, under a 27" work surface.
The Atosa AUF27D2 keeps frozen ingredients in 1/6-size pans inside 2 pull-out drawers, so cooks reach them without bending into a door cabinet. It has 6.5 cu. ft. at -8°F to 1°F, a reinforced stainless steel top, and runs on a standard 115V outlet (3.9 amps). Atosa ships it with 1/6-size pans; its standard layout is 9 pans in the top drawer and 6 in the bottom (15 pans).
Will it fit · Will it plug in
- Outside size
- 27-1/2" W × 30" D × 32-3/8" H (with 2" casters)
- Drawers open
- 54-1/8" deep with a drawer fully open (drawer travel 21-7/8")
- Pans
- Standard layout: 9 pans in the top drawer and 6 in the bottom, 15 1/6-size pans in all (Atosa pan chart)
- Power
- 115V, 60 Hz, 1-phase, 3.9 amps; NEMA 5-15P plug
- Shipping weight
- 233 lb. (178 lb. net)
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width. Leave at least 5" behind the unit and 54-1/8" of clear depth in front for the drawers (Atosa).
Pans at the line
Drawers hold 1/6-size pans side by side; Atosa also shows optional layouts with larger 1/1, 1/2, 1/3 or 1/4-size pans.
Work-top ready
The reinforced stainless steel top can serve as a prep surface.
Easy to move
Pre-installed 2" plate casters, two with brakes; 1.2" to 5" casters are available from Atosa.
Simple controls
Electronic controller with digital display.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight with the 2" casters pre-installed (2 lock).
- Inspect it for damage before signing for the delivery.
- Run it empty for at least an hour before loading food (Atosa manual).
Questions buyers ask
What outlet does it need?
A dedicated, grounded 115V outlet for the NEMA 5-15P plug (3.9 amps). Atosa asks for its own outlet with no extension cord; damage from extension cords or low voltage is not covered by the warranty.
What pans fit in the drawers?
Atosa ships it with 1/6-size pans. Its standard layout is 9 pans in the top drawer and 6 in the bottom; optional layouts use larger pans. Pan depth is not published, so call us if you need a specific depth.
Can I put a griddle or charbroiler on top?
Atosa calls the top reinforced stainless steel but does not publish a load rating or heat rating for it. Call us before placing hot cooking equipment on it.
How much space does it need around it?

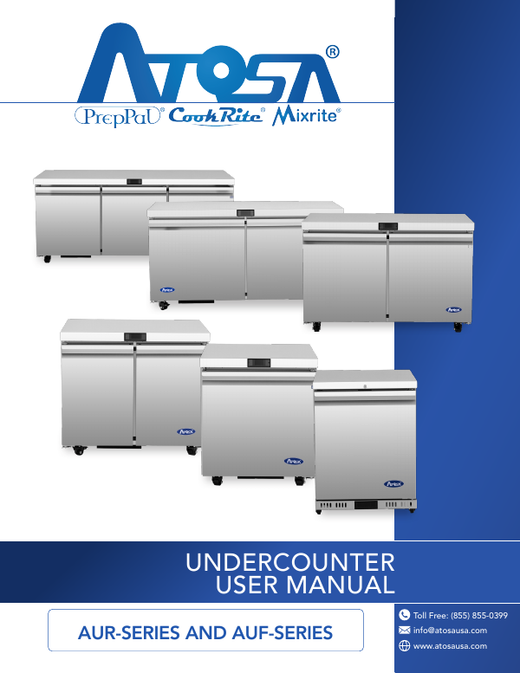

The manual asks for at least 5" between the back of the unit and the wall, a level floor, and a room between 50°F and 100°F. Keep the front grille clear and clean the condenser monthly.
Will it fit under my counter?
It is 32-3/8" tall on the standard 2" casters, or 31-1/4" with Atosa's optional 1.2" casters. Measure the opening first.
What does the warranty cover?

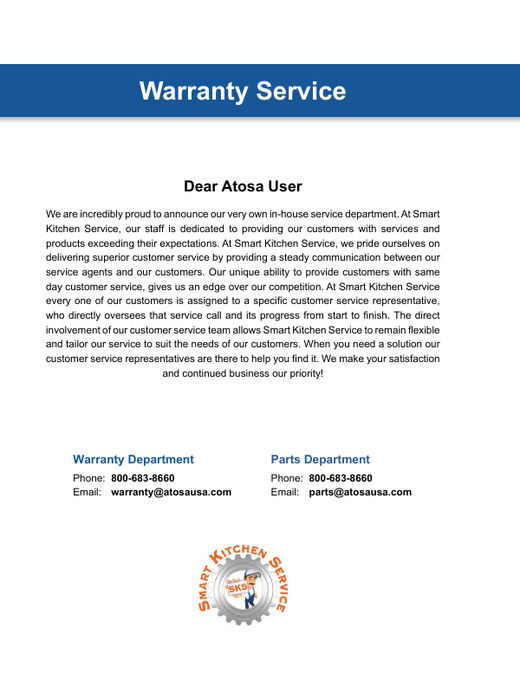

Atosa's current spec sheet and its 2026 refrigeration warranty give 3 years parts and labor and 5 years on the compressor (parts only for the extra 2 years), counted from shipment from Atosa. The 2025 owner's manual still prints 2 years parts and labor, so keep your invoice and register the unit with Atosa.
Do you match lower prices?
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.
Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | AUF27D2 |
| Quantity | 1/Each |
| Shipping Weight | 233 lb. |
| Net Weight | 178 lb. |
| Width | 27-1/2 Inches |
| Depth | 30 Inches |
| Height | 32-3/8 Inches (with 2" casters) |
| Depth with Drawer Open | 54-1/8 Inches |
| Drawer Travel | 21-7/8 Inches |
| Caster Size | 2 Inches |
| Voltage | 115 Volts |
| Amps | 3.9 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Capacity | 6.5 cu. ft. |
| Temperature Range | -8 - 1 Degrees F |
| Horsepower | 1/5+ hp |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Self-Contained |
| Controls | Electronic Temperature Controller |
| Exterior Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Top | Reinforced Stainless Steel |
| Access Type | Drawers |
| Number of Drawers | 2 |
| Drawer Features | Recessed HandlesMagnetic Gaskets |
| Pans | 1/6-Size Pans IncludedStandard Layout 9 + 6 per Drawer Stack |
| Casters | Pre-Installed 2" Plate Casters2 with Brakes |
| Optional Casters | 1.2", 1.5" Plate4", 5" Stem |
| Certifications | ETL Sanitation, cETLus |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor UseAmbient 50 - 100 Degrees F |
