Description
A 60" undercounter freezer that keeps frozen product right under the prep line.
The Atosa AUF60SD puts 15 cu. ft. of frozen storage at -8°F to 0°F under a 60" counter, behind two self-closing stainless doors. It is 32-1/2" tall on 2" casters, runs on a standard 115V outlet at 2.6 amps, and suits restaurants, bars and bakeries that need freezer space without a reach-in.
Will it fit · Will it plug in
- Outside size
- 60-1/4" W × 30" D × 32-1/2" H (with 2" casters)
- Door open
- 57-3/8" deep with the doors open
- Inside
- 56-3/4" W interior, 21-3/4" interior height
- Power
- 115V, 60 Hz, 1-phase, 2.6 amps; NEMA 5-15P plug
- Shipping weight
- 287 lb. (218 lb. net)
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 30" depth. Atosa asks for room around the unit to breathe; keep the front grille clear.
Under-counter height
32-1/2" tall on the standard casters; optional casters change it from 31-1/4" to 35-1/4".
Doors that stay put
Self-closing doors with a stay-open feature, field reversible.
Four shelves
Two epoxy-coated shelves per section come installed.
Stainless build
Stainless steel inside and out with R290 refrigerant.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight on a pallet with the casters pre-installed.
- Inspect the cabinet and glass for damage before signing for the delivery.
Questions buyers ask
What outlet does it need?
A dedicated, grounded 115V outlet for the NEMA 5-15P plug, with no extension cord. Atosa does not cover damage from extension cords or low voltage.
What temperature does it hold?
Atosa rates it to hold -8°F to 0°F with the electronic controller, and recommends setting it in that range for best food preservation.
Will it fit under my counter?
It is 32-1/2" tall on the standard 2" casters. Atosa sells 1.2" casters (31-1/4" overall), 1.5" (31-7/8"), 4" (34-3/8") and 5" (35-1/4"). Measure the opening and leave room behind for airflow.
Can I switch the door hinge side?
Yes. Atosa lists the doors as field reversible.
Is there a matching refrigerator?
Yes. The Atosa AUR60SD is the 60" solid door undercounter refrigerator in the same series; the AUF60SD itself is a freezer only.

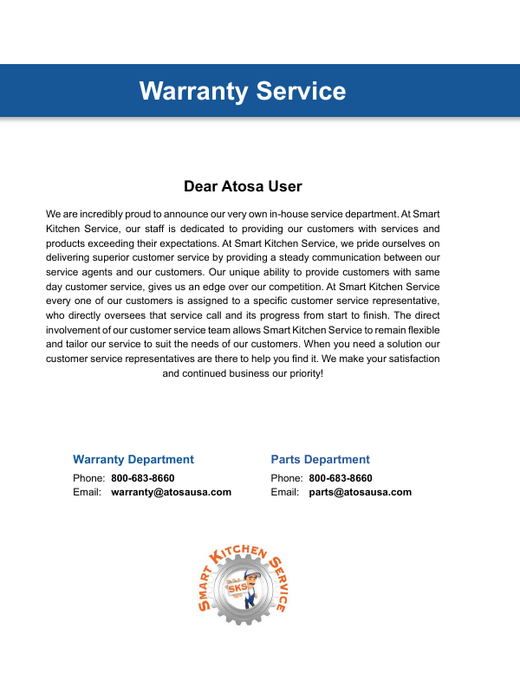

What does the warranty cover?
Atosa's 2026 refrigeration warranty gives 3 years parts and labor and 5 years on the sealed compressor (parts only for the extra 2 years), counted from shipment from Atosa. Keep your invoice and register the unit with Atosa.
Do you match lower prices?
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.

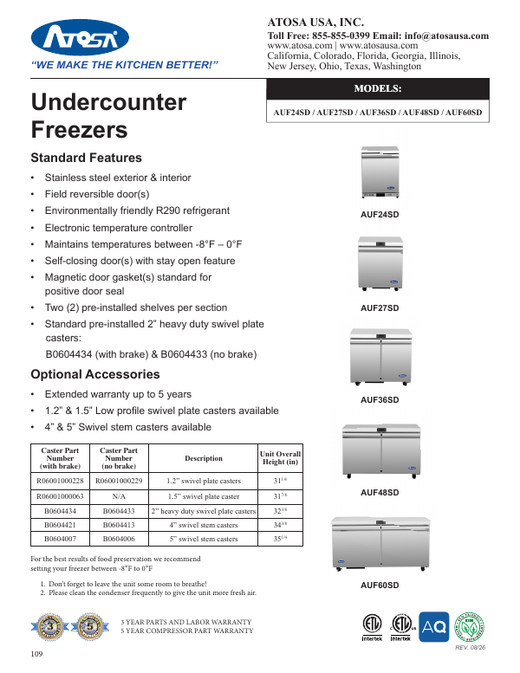

Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | AUF60SD |
| Quantity | 1/Each |
| Shipping Weight | 287 lb. |
| Net Weight | 218 lb. |
| Width | 60-1/4 Inches |
| Depth | 30 Inches |
| Height | 32-1/2 Inches (with 2" casters) |
| Depth with Door Open | 57-3/8 Inches |
| Interior Width | 56-3/4 Inches |
| Interior Height | 21-3/4 Inches |
| Caster Size | 2 Inches |
| Voltage | 115 Volts |
| Amps | 2.6 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Capacity | 15 cu. ft. |
| Temperature Range | -8 - 0 Degrees F |
| Horsepower | 1/3 hp |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Self-Contained, Bottom Mount |
| Controls | Electronic Temperature Controller |
| Exterior Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Number of Doors | 2 |
| Door Type | Solid |
| Door Style | Swing |
| Door Features | Field ReversibleSelf-Closing with Stay-Open FeatureMagnetic Gaskets105 Degree Swing |
| Number of Shelves | 4 (2 per Section, Epoxy-Coated) |
| Casters | Pre-Installed 2" Swivel Plate (B0604434 with Brake, B0604433 without) |
| Optional Casters | 1.2", 1.5" Plate4", 5" Stem |
| Certifications | ETL Sanitation, cETLus |
| Standards | UL 471, CSA C22.2 No. 120 |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
