Description

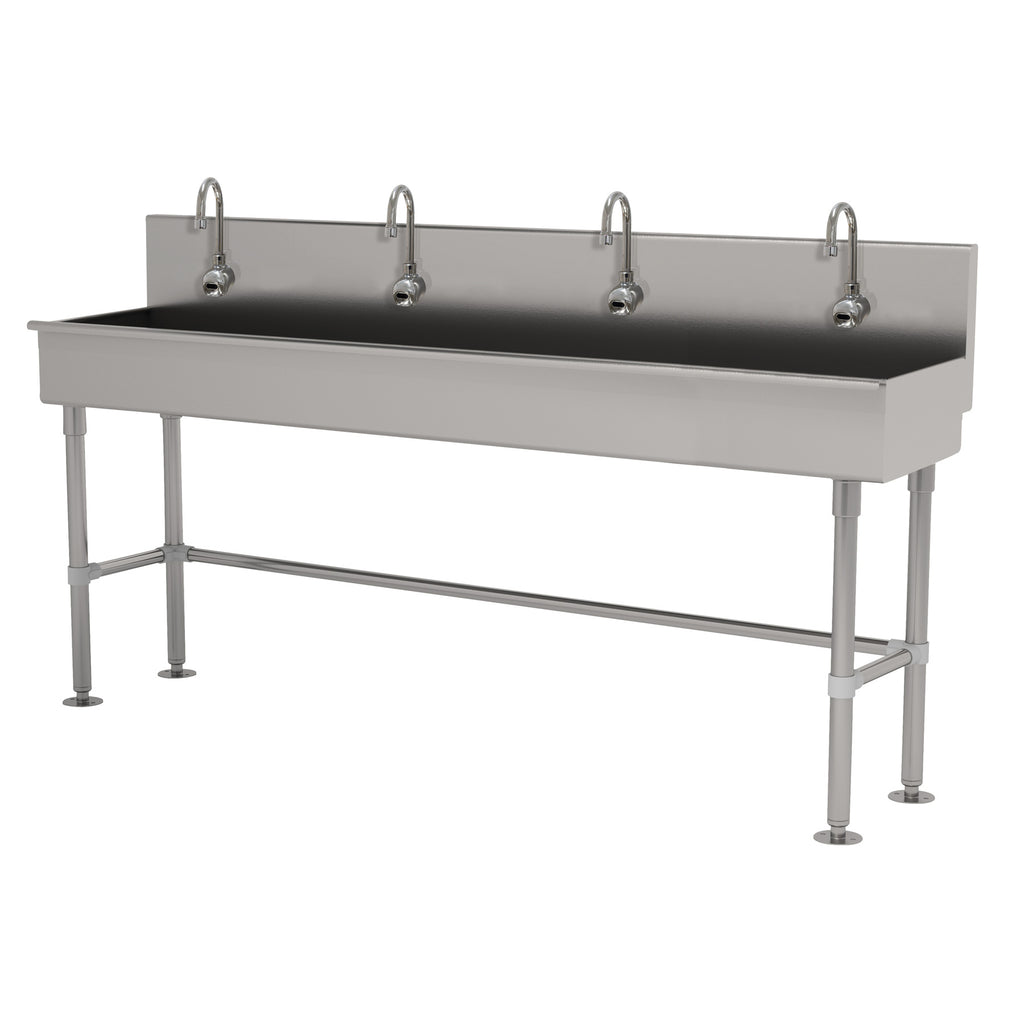

Advance Tabco 19-FM-96EFADA — Commercial Hand Wash Sinks
The Advance Tabco 19-FM-96EFADA is offered in the configuration shown below. Overall dimensions: 96 in. W × 19.5 in. D × 42.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Dimensions: 96" W x 19½" D x 42½" H overall, 16" front‑to‑back bowl, 5" deep.
- Four K‑175 electronic faucets with gooseneck spouts provide touch‑free operation.
- Constructed from 16‑gauge 304 stainless steel, TIG‑welded with a satin finish for longevity.
- Stainless steel tubular legs, flanged feet, and 8½" high backsplash enhance stability and splash protection.
- Includes a 3½" rear basket drain and meets ADA certification for accessibility.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 19-FM-96EFADA |
| Shipping Weight (Supplier Reference) | 140 lbs |
| Width | 96 in. |
| Depth | 19.5 in. |
| Height | 42.5 in. |
| Style | freestanding |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 5" deep |
| Faucet | faucet included |
| Certifications | ADA Compliant |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

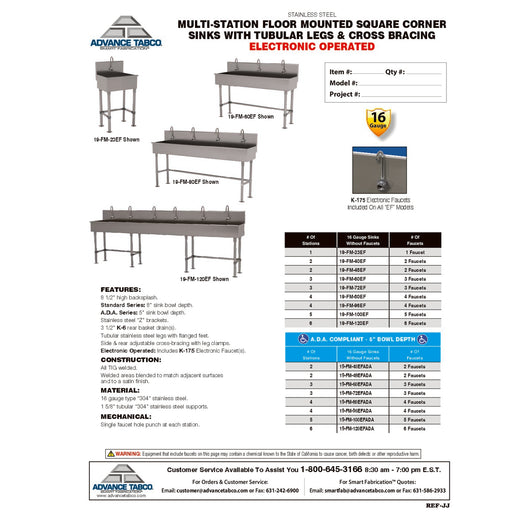

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
