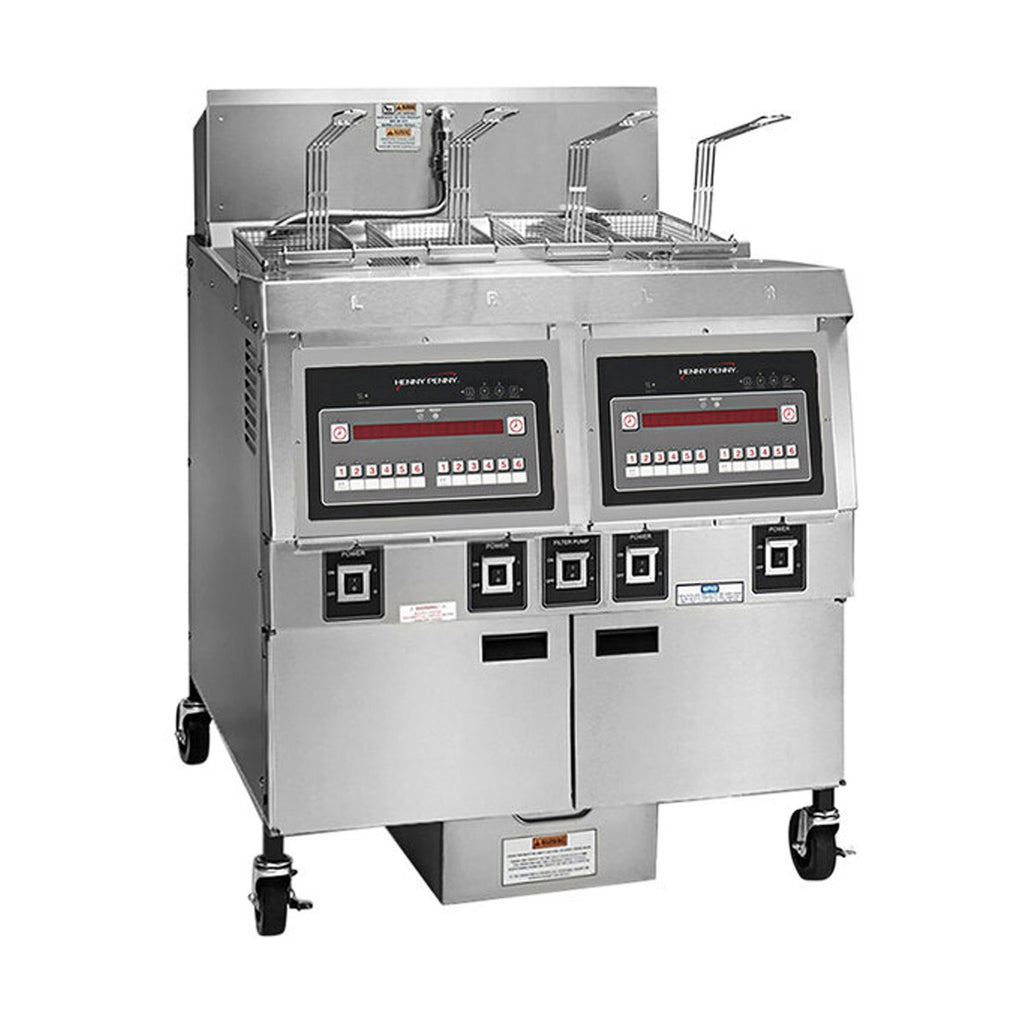

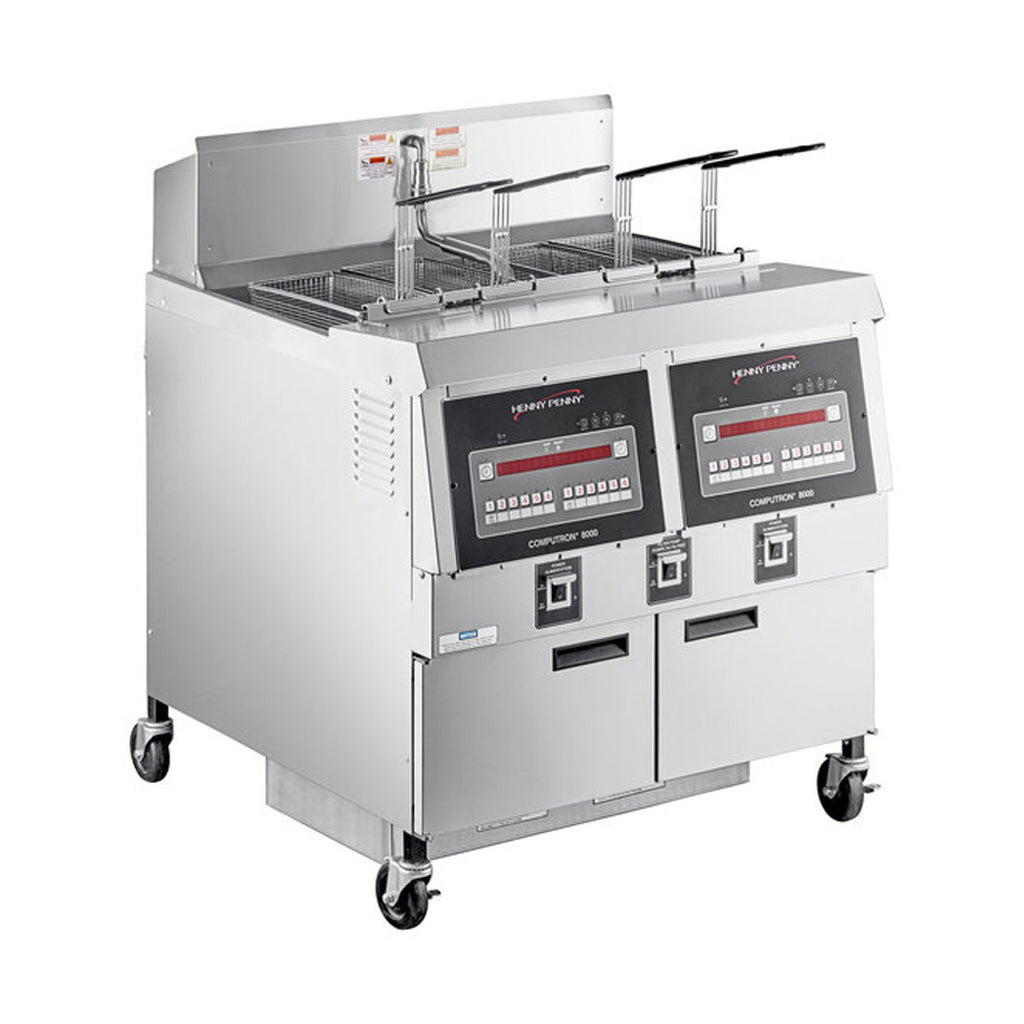

Henny Penny OFG322.06 33-3/8" 2-Well Natural Gas Open Fryer, 2 x 65 lb. Vats, 170,000 BTU, Computron 8000, Built-In Filtration
A 33-3/8" 2-well gas open fryer with built-in filtration for high-volume frying.
The Henny Penny OFG322.06 is a 320 Series open fryer for quick-service kitchens, chicken programs, restaurants and caterers that fry in volume. Its two full vats hold 65 lb. of oil each, heated by 4 burners rated 170,000 BTU/hr in total. A built-in filter system filters the hot oil and returns it to the vat in minutes, and the Computron 8000 control handles cook timing. It stands 33-3/8" wide on 4 heavy-duty casters, 2 locking.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 33-3/8" width. Plan the gas connection and the 30" of front space for the filter pan before delivery.

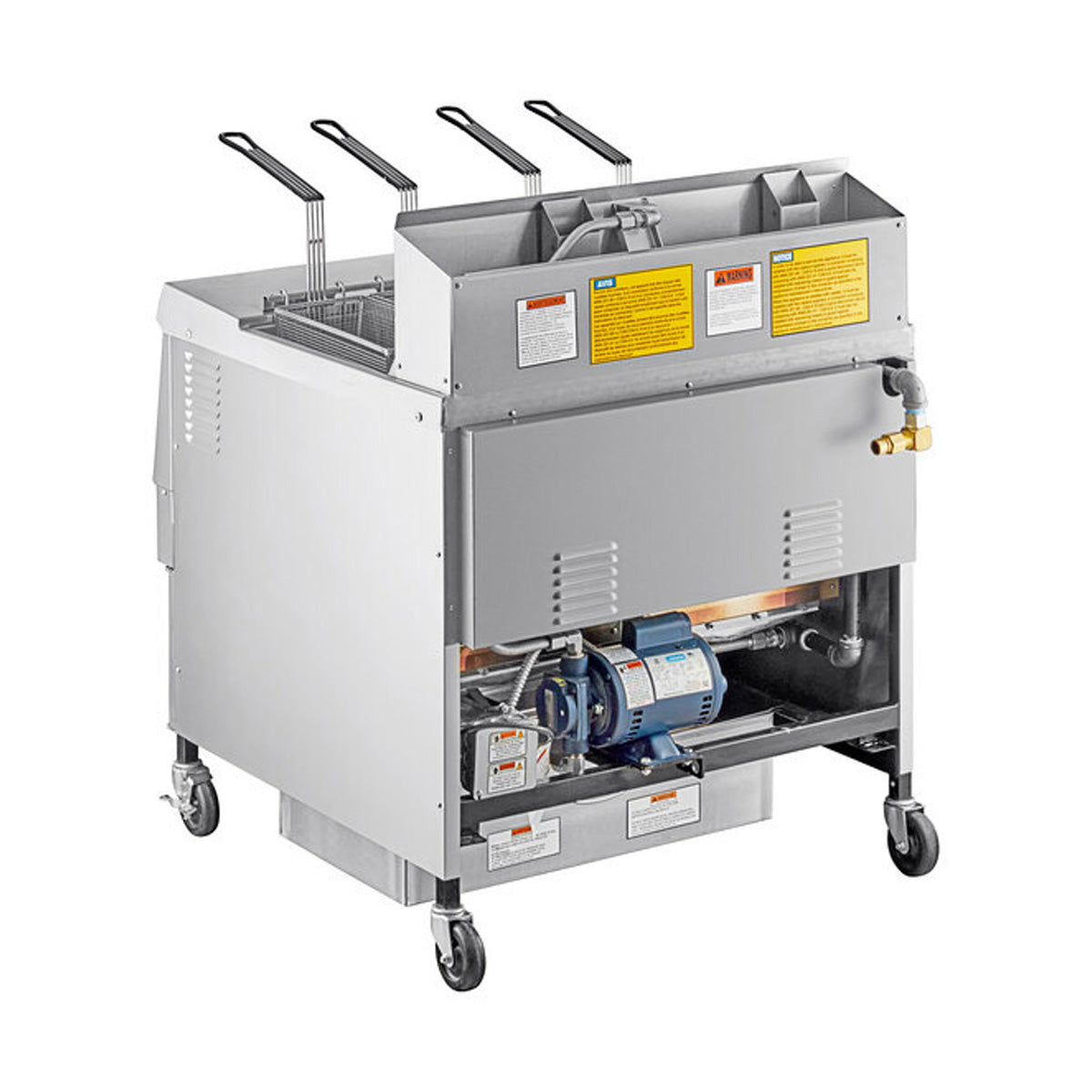

The filter system filters hot oil and returns it to the vat in minutes, so staff never carry hot oil. Frequent filtering extends oil life and keeps food quality steady.
A heat-exchange design with 4 high-efficiency burners and solid state ignition brings the oil back to temperature quickly.
The Computron 8000 stores 12 cook cycles, has melt, idle and clean-out modes, load compensation and optional filter prompts.

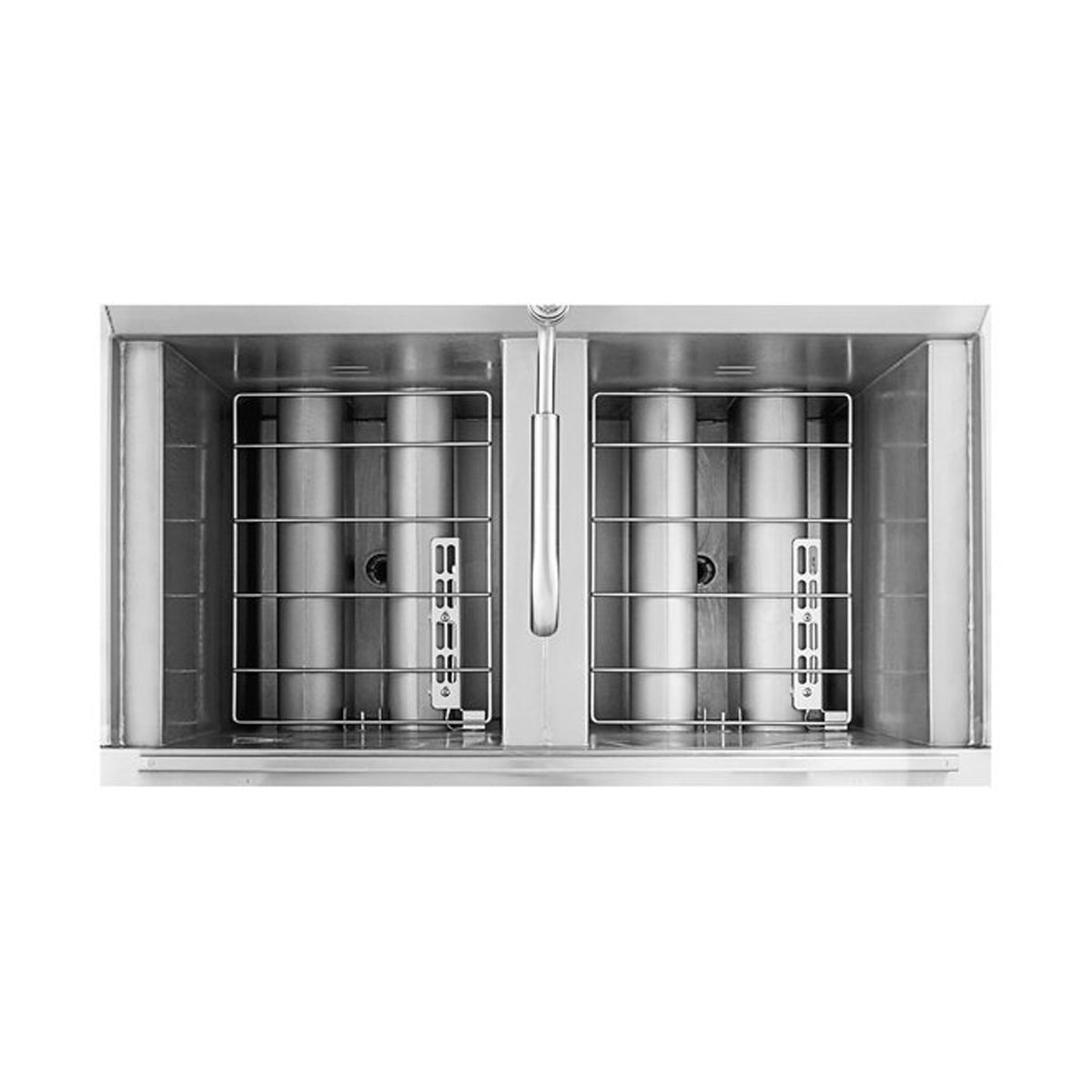

Heavy-duty stainless steel vats with a cold zone below the burners, high-limit protection and a stainless steel cabinet on locking casters.
This configuration runs on natural gas at 170,000 BTU/hr through a 3/4" gas line. It also needs a 120V, 1-phase outlet (12 amps); the cord and plug are included on 120V units.
It is 33-3/8" wide, 37-3/8" deep and 44" high. Leave 30" in front to remove the filter pan, and 4" at the sides and back. It ships crated at 40" x 39" x 54".
65 lb. (30 L) per vat, 130 lb. across the two vats. The cold zone below the burners helps extend oil life.
It stores 12 programmable cook cycles, has melt, idle and clean-out modes, load compensation and proportional control, optional filter prompts with filter tracking, and a 16-character display with several languages.
The fryer filters the hot oil and returns it to the vat in minutes, with no separate pump or pan to handle. It ships with a filter screen and filter envelope; Henny Penny does not cover filter system failures caused by non-OEM filters.
Henny Penny covers parts for 2 years and labor, including up to 200 miles round-trip travel, for 1 year from installation; baskets are covered for 90 days. The fry pot is covered up to 7 years from manufacture: fully replaced for the first 3 years, then replaced or credited with freight and labor on the owner. Register the fryer online with Henny Penny within 10 days of installation or the warranty is not honored.
Specs
| Manufacturer | Henny Penny |
|---|---|
| Model Number | OFG322.06 |
| Base Model | OFG-322 |
| Configuration Code | .06 |
| Series | 320 Series Gas Open Fryer |
| Quantity | 1/Each |
| Shipping Weight | 467 lb. |
| Crated Size | 40" L x 39" D x 54" H49 cu. ft. |
| Width | 33-3/8 Inches |
| Depth | 37-3/8 Inches |
| Height | 44 Inches |
| Front Clearance | 30 Inches to Remove the Filter Pan |
| Side Clearance | 4 Inches |
| Back Clearance | 4 Inches |
| Gas Type | Natural Gas |
| BTU | 170,000 BTU/H |
| Burners | 4 |
| Heating Output | 49.8 kW |
| Gas Line | 3/4 Inch |
| Voltage | 120 Volts |
| Phase | 1 |
| Hertz | 60 |
| Amps | 12 Amps |
| Cord and Plug | Included on 120V Units |
| Capacity | 2 x 65 lb. = 130 lb. Oil |
| Oil Capacity per Full Vat | 65 lb. or 30 L |
| Number of Wells | 2 |
| Vat Type | Full Vats |
| Cold Zone | Below the Burners |
| Safety | High-Limit Temperature Protection |
| Ignition | Solid State Ignition, High-Efficiency Burners, Heat-Exchange Design |
| Controls | Computron 800012 Programmable Cook CyclesMelt, Idle and Clean-Out ModesLoad Compensation and Proportional ControlOptional Filter Prompt and Filter Tracking16-Character Digital Display, Multiple Languages |
| Filtration | Built-In, Filters and Returns Hot OilSingle Vat/Sequential Filter Pan or Multi-Vat Filter Pan |
| Fry Vats | Heavy-Duty Stainless Steel |
| Exterior | Stainless Steel |
| Casters | 4 Heavy-Duty Casters, 2 Locking |
| Ships With | Fry Baskets: 1 Full or 2 Half per Well, Chosen at Order1 Basket Support per VatFilter Screen and Filter Envelope |
| Henny Penny Options | Fryer Shortening ShuttleFry Well CoversFilter Rinse Hose or Direct Connect Shortening Disposal |
| Certifications | cULus Gas-Fired, UL EPH, CE, ENERGY STAR |
| ENERGY STAR Listing | OFG32#.##50% Cooking Energy Efficiency |
| Warranty | 2 Years Parts, 1 Year Labor |
| Fry Pot Warranty | 7 Years |
| Warranty Detail | Labor and Up to 200 Miles Round-Trip Travel in Year 1Baskets 90 DaysRegister Online Within 10 Days of Installation |
| Fry Pot Coverage | Years 1-3: Replaced, Parts, Labor and Freight CoveredYears 4-7: Replaced or Credited, Owner Pays Freight and Labor |
