Description

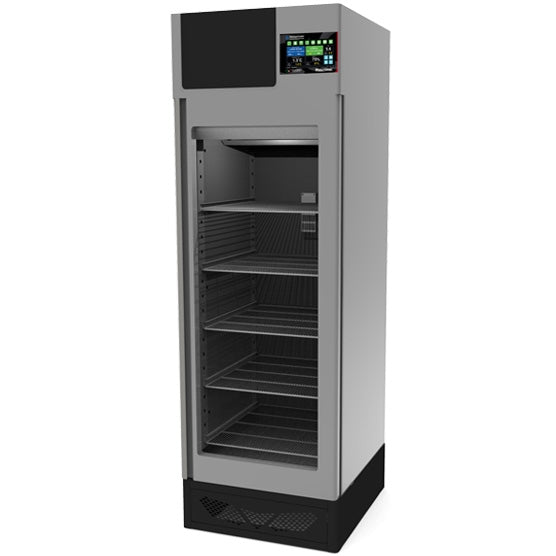

Omcan 40345 — Meat Dry Aging Cabinet, 28-3/4"W, 220lb Capacity, 14°F-158°F, Steel Glass Door, Climatouch Touch Control
The Omcan 40345 Meat Dry Aging Cabinet, 28-3/4"W, 220lb Capacity, 14°F-158°F, Steel Glass Door, Climatouch Touch Control is part of Atlantic’s meat curing chambers selection. Width: 28.74 in. Depth: 30.7 in. Height: 83 in.
Product Highlights
- ITEM NUMBER 40345
- MODEL MATC100TF
- DESCRIPTION Maturmeat® 100kg cabinet with ClimaTouch® and Fumotic®
- INTERIOR 5 Guide sets/ 5 stainless steel shelves
- WORKING TEMPERATURE -5 - 50 °C/ 23 - 122°F
- STORAGE TEMPERATURE -10 - 70 °C/ 14 - 158°F
- AMBIENT RELATIVE HUMIDITY Less than 90% RH
- ELECTRICAL 220V/2.376kW/10.8A
- INTERNAL MEMORY 352 Kb Ram (approx.100 recipes)
- NET WEIGHT 140 kg (308 lbs)
- GROSS WEIGHT 215 kg (473 lbs)
- DIMENSIONS (WDH) 30.7” x 28.74” x 83”/ 780 x 730 x 2110 mm
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 40345 |
| Listed Weight | 473 lbs |
| Width | 28.74 in. |
| Depth | 30.7 in. |
| Height | 83 in. |
| Meat Process Cabinet Type | meat dry aging cabinet |
| Door Type | glass door |
| Door Style | swing |
| Number of Doors | 1 door |
| Number of Guide Sets | 5 guide sets |
| Finish | stainless steel |
| Shelf Quantity | 5 shelves |
| Voltage | 220 |
| Certifications | Made in Italy |
| Wattage | 2376 watts |
| Load Capacity | 220 lb (100 kg) |
| İnterior Capacity | 42.38 cu ft |
| Working Temperature | 23°F - 122°F (-5°C – 50°C) |
| Storage Temperature | 14°F - 158°F (-10°C – 70°C) |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

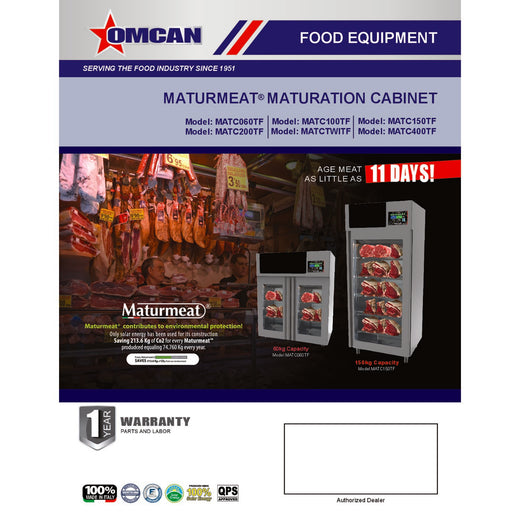

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
