Description

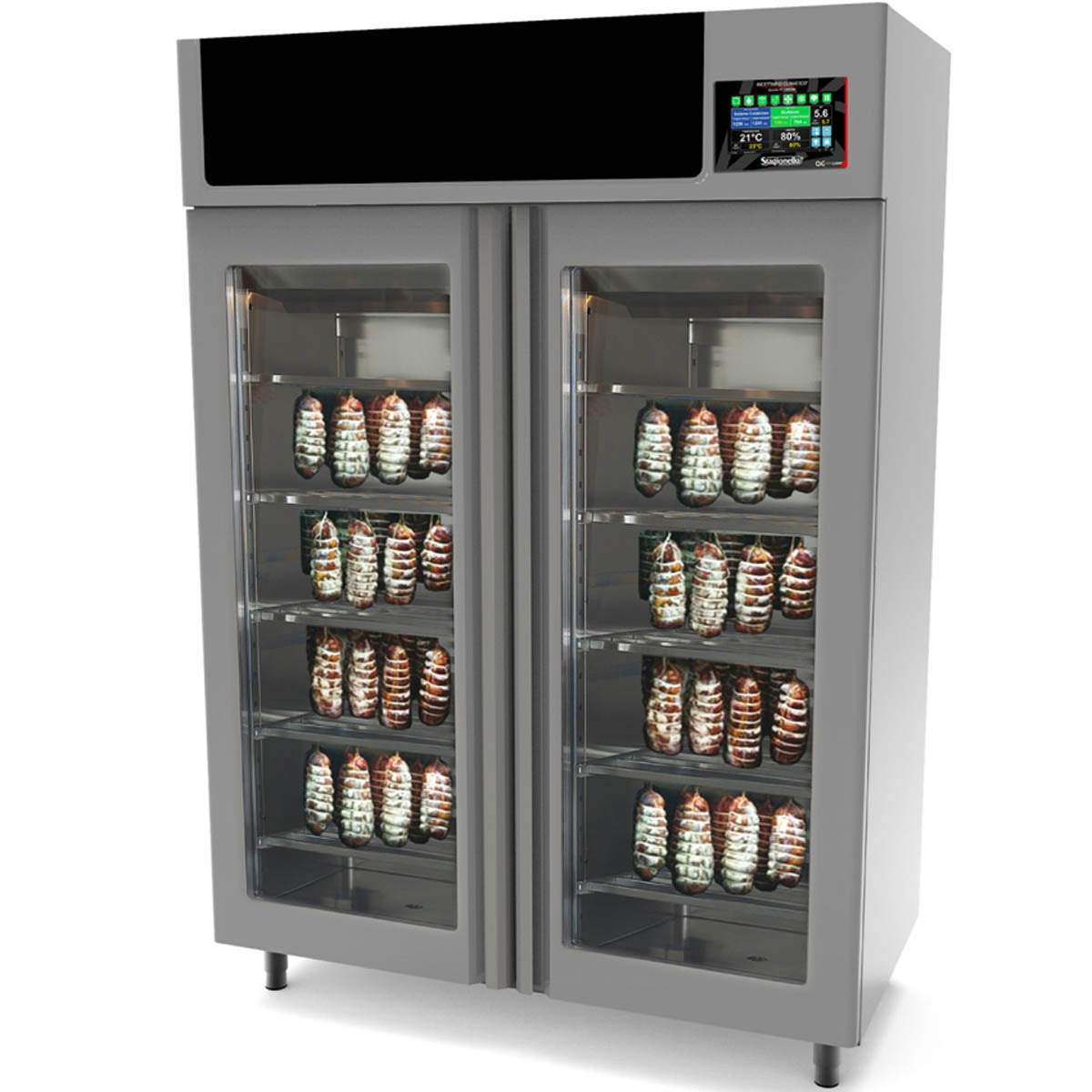

Omcan 45232 — Stagionello Evo Meat Curing Cabinet, 57.5" W, 200 kg Load, 35.6°F-95°F, 20 Stainless Rods, 3,540W 220V
The Omcan 45232 Stagionello Evo Meat Curing Cabinet, 57.5" W, 200 kg Load, 35.6°F-95°F, 20 Stainless Rods, 3,540W 220V is part of Atlantic’s meat curing chambers selection. Width: 57.48 in. Depth: 30.7 in. Height: 83 in.
Product Highlights
- ITEM NUMBER 41262
- MODEL STGTWITF0
- DESCRIPTION Stagionello® 100kg + 100kg cabinet with ClimaTouch® and Fumotic®
- INTERIOR 4+4 Guide sets/ 20+20 stainless steel hanging rods
- WORKING TEMPERATURE - 5 - 50°C / 23 - 122°F
- STORAGE TEMPERATURE -10 - 70°C / 14 - 158°F
- AMBIENT RELATIVE HUMIDITY Less than 90% RH
- ELECTRICAL 220V/4.19kW/18.2A
- INTERNAL MEMORY 352 Kb Ram (approx.100 recipes)
- NET WEIGHT 250 kg (550 lbs)
- GROSS WEIGHT 362 kg (798 lbs)
- DIMENSIONS(DWH) 57.48” x 30.7” x 83”/ 1460 x 780 x 2110 mm
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 45232 |
| Listed Weight | 798 lbs |
| Width | 57.48 in. |
| Depth | 30.7 in. |
| Height | 83 in. |
| Meat Process Cabinet Type | meat curing cabinet |
| Door Type | glass door |
| Door Style | swing |
| Number of Doors | 2 doors |
| Number of Guide Sets | 4 + 4 guide sets |
| Number of Hanging Rods | 20 + 20 hanging rods |
| Finish | stainless steel |
| Voltage | 220 |
| Certifications | Made in Italy |
| Phase | 3 |
| Wattage | 3,540 watts |
| Load Capacity | 440 lb (200 kg) |
| Working Temperature | 23°F - 122°F (-5°C – 50°C) |
| Storage Temperature | 14°F - 158°F (-10°C – 70°C) |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads
Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
