Description

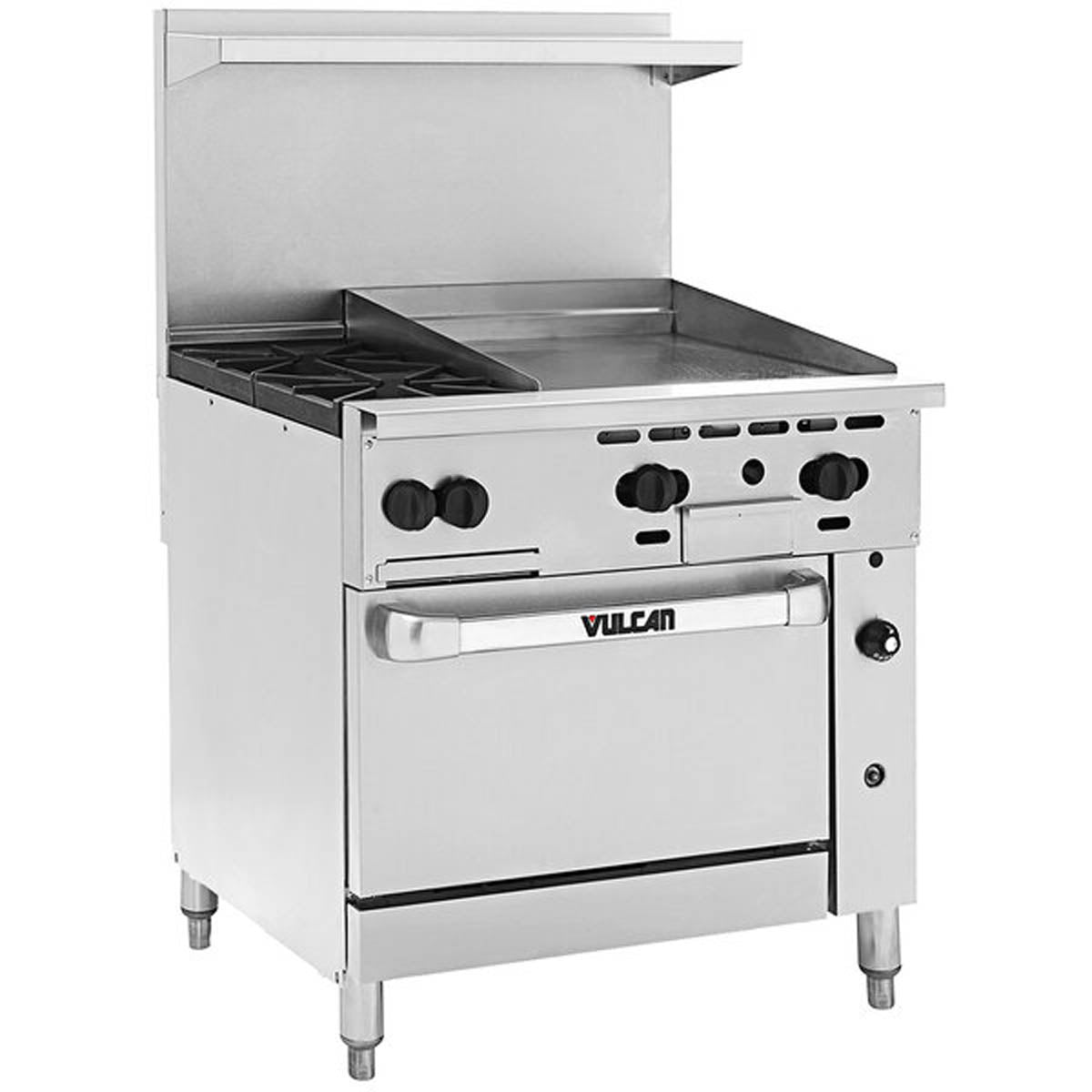

Vulcan 36R-2B24G Commercial Gas Range
The Vulcan 36R-2B24G is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 36 inches wide, 34 inches deep and 58 inches high. The top configuration is (2) open burners, (1) 24" griddle. Its exterior specification is all stainless steel exterior.
Configuration and daily use
- Top: (2) open burners, (1) 24" griddle
- Number of Burners: 2 burners
- Control Type: manual control
- Base Type: refrigerated base
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | 36R-2B24G |
| Weight | 350 lbs |
| Width | 36 in. |
| Depth | 34 in. |
| Height | 58 in. |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Number of Burners | 2 burners |
| Base Type | refrigerated base |
| Control Type | manual control |
| Top Configuration | burner & griddle |
| Plate Thickness | .750" = 3/4" |
| Exterior Finish | all stainless steel exterior |
| Top | (2) open burners, (1) 24" griddle |
| Vent | backriser with hi-shelf |
| Total BTU | 100,000 |
| Burner BTU | 30,000 |
| Griddle/Charbroiler BTU | 40,000 |
| Griddle/Charbroiler Location | right |
Planning your installation
Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
