Description

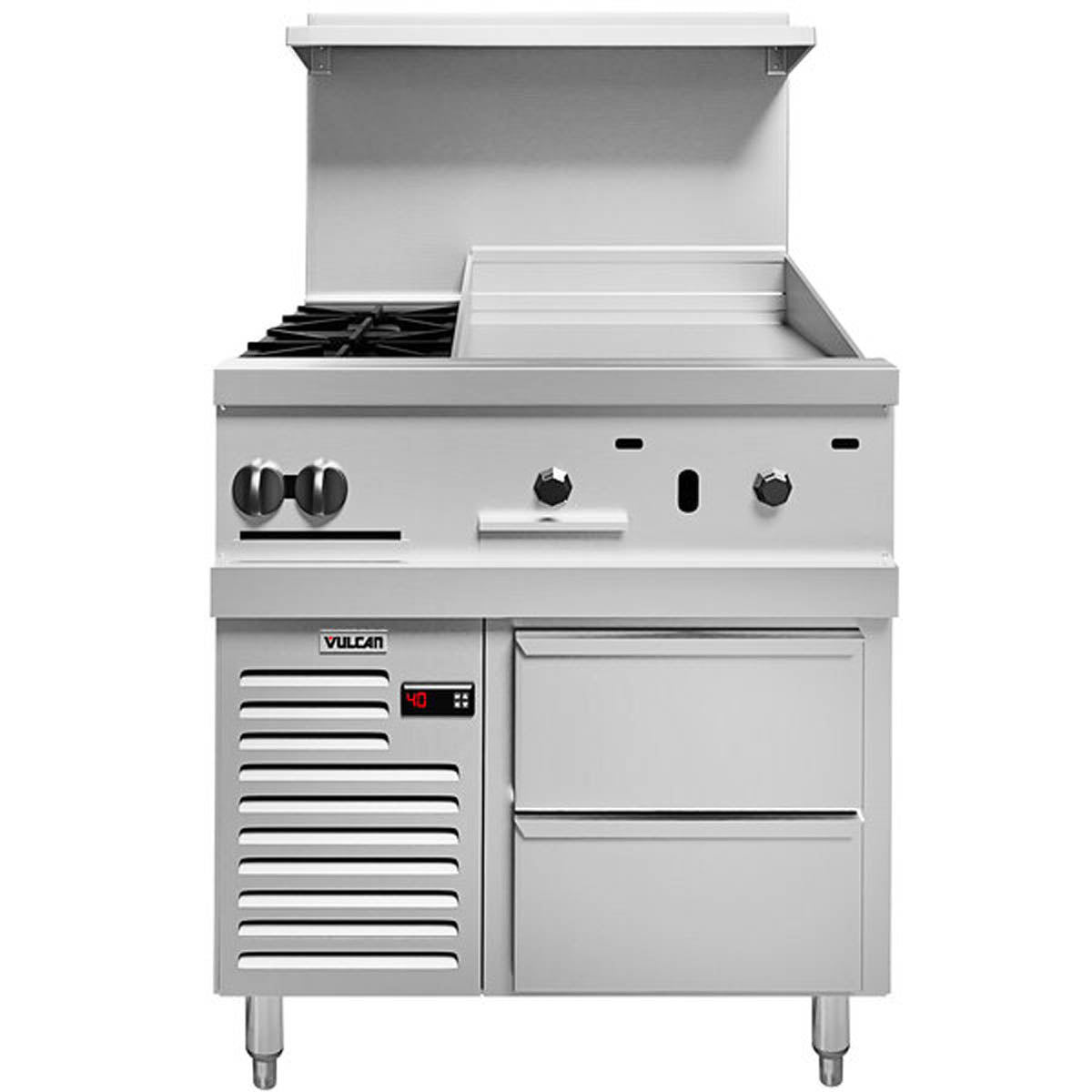

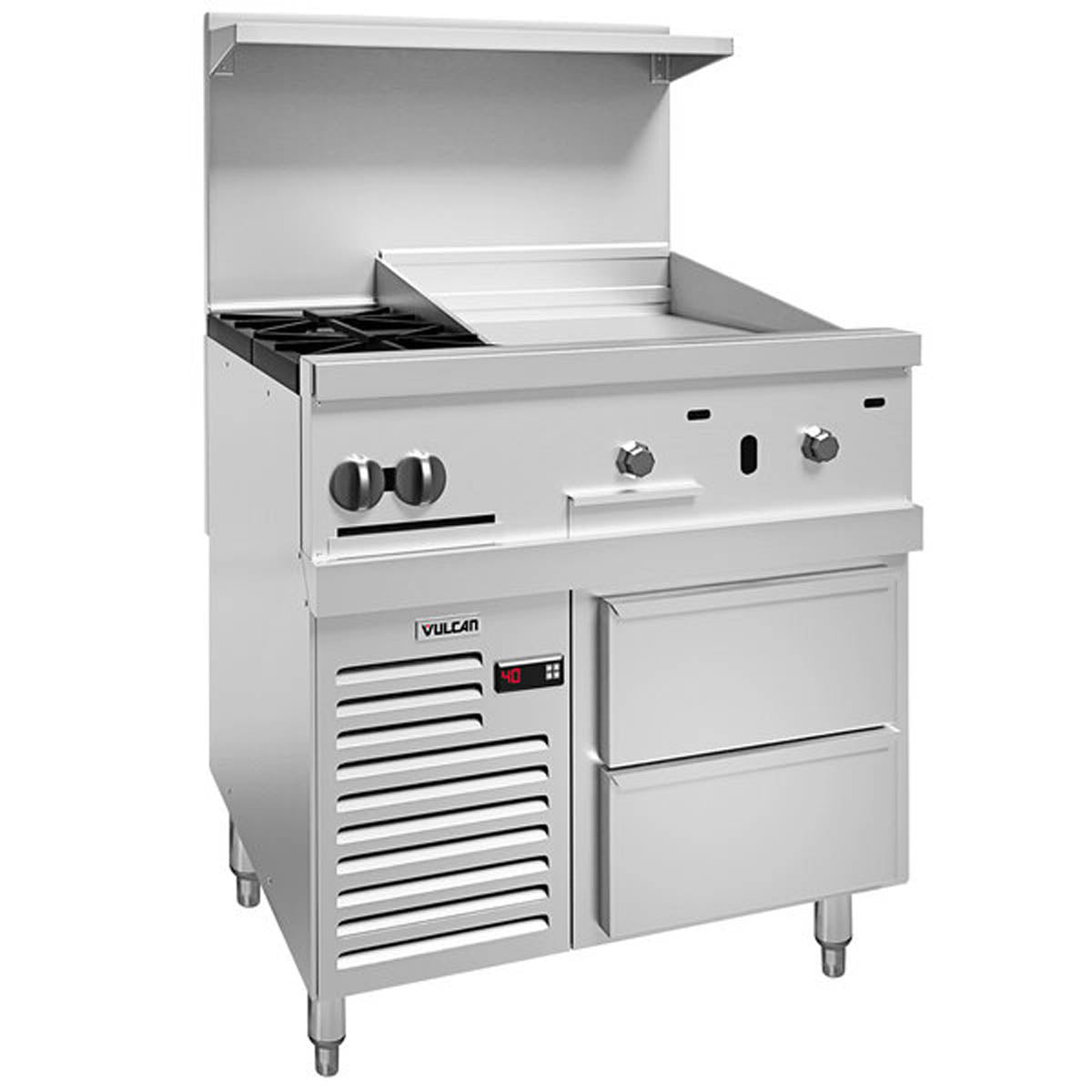

Vulcan 36R-2B24GT Commercial Gas Range
The Vulcan 36R-2B24GT is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 36 inches wide, 34 inches deep and 58 inches high. The top configuration is (2) open burners, (1) 24" griddle with thermostats. Its exterior specification is all stainless steel exterior.
Configuration and daily use
- Top: (2) open burners, (1) 24" griddle with thermostats
- Number of Burners: 2 burners
- Control Type: thermostatic control
- Base Type: refrigerated base
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | 36R-2B24GT |
| Weight | 750 lbs |
| Width | 36 in. |
| Depth | 34 in. |
| Height | 58 in. |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Number of Burners | 2 burners |
| Base Type | refrigerated base |
| Control Type | thermostatic control |
| Top Configuration | burner & griddle |
| Plate Thickness | .750" = 3/4" |
| Exterior Finish | all stainless steel exterior |
| Top | (2) open burners, (1) 24" griddle with thermostats |
| Vent | backriser with hi-shelf |
| Total BTU | 100,000 |
| Burner BTU | 30,000 |
| Griddle/Charbroiler BTU | 40,000 |
| Griddle/Charbroiler Location | right |
Planning your installation
Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
