Description

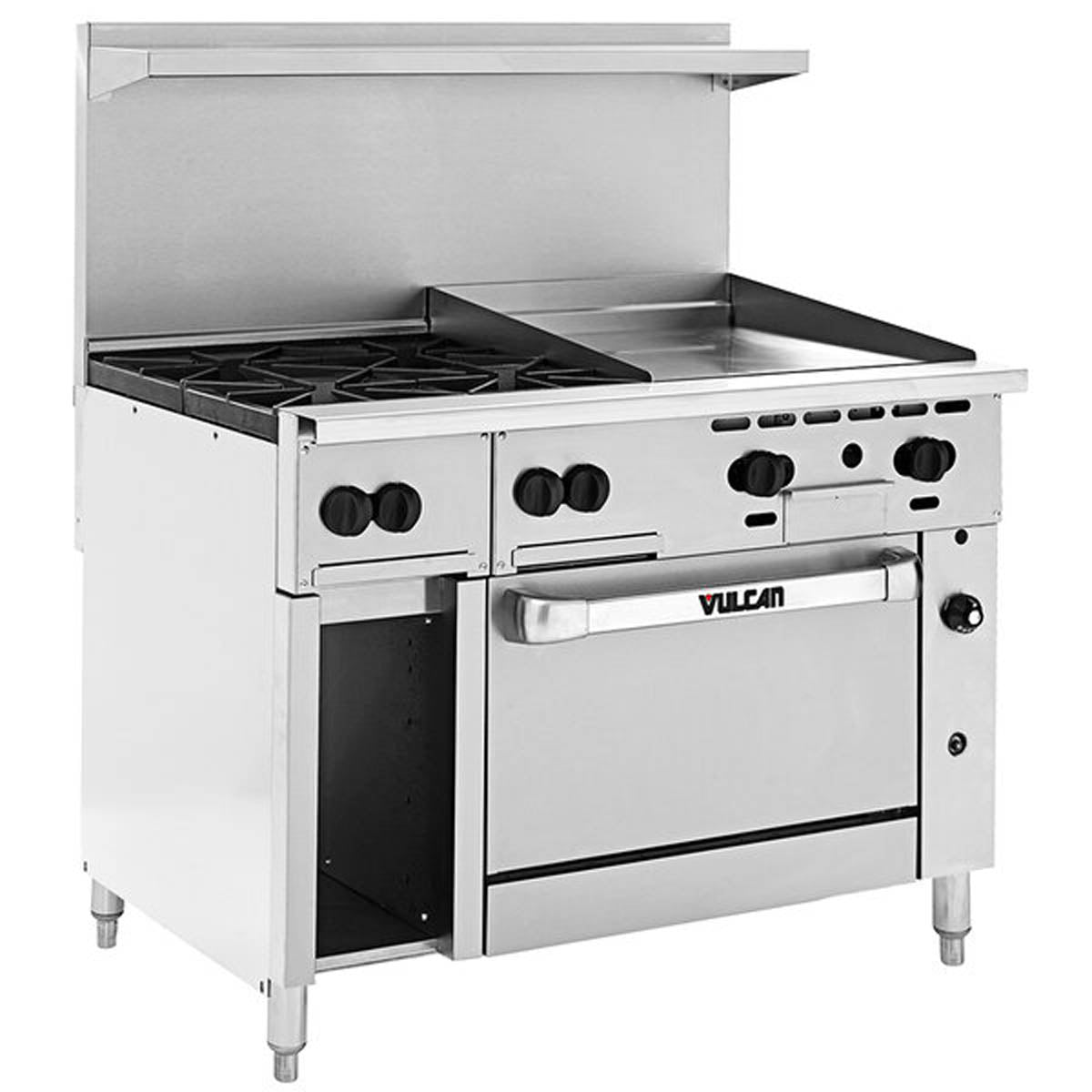

Vulcan 48S-4B24GT Commercial Gas Range
The Vulcan 48S-4B24GT is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 48 inches wide, 34 inches deep and 58 inches high. The top configuration is (4) open burners, (1) 24" griddle with thermostats. Its exterior specification is stainless steel front & sides.
Configuration and daily use
- Top: (4) open burners, (1) 24" griddle with thermostats
- Number of Burners: 4 burners
- Number Of Ovens: 1
- Oven Type: standard oven
- Control Type: thermostatic control
- Base Type: oven & storage base
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | 48S-4B24GT |
| Weight | 720 lbs |
| Width | 48 in. |
| Depth | 34 in. |
| Height | 58 in. |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Number of Burners | 4 burners |
| Base Type | oven & storage base |
| Oven Type | standard oven |
| Number Of Ovens | 1 |
| Control Type | thermostatic control |
| Top Configuration | burner & griddle |
| Plate Thickness | .750" = 3/4" |
| Exterior Finish | stainless steel front & sides |
| Top | (4) open burners, (1) 24" griddle with thermostats |
| Vent | backriser with hi-shelf |
| Total BTU | 195,000 |
| Burner BTU | 30,000 |
| Griddle/Charbroiler BTU | 40,000 |
| Griddle/Charbroiler Location | right |
Planning your installation
Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
