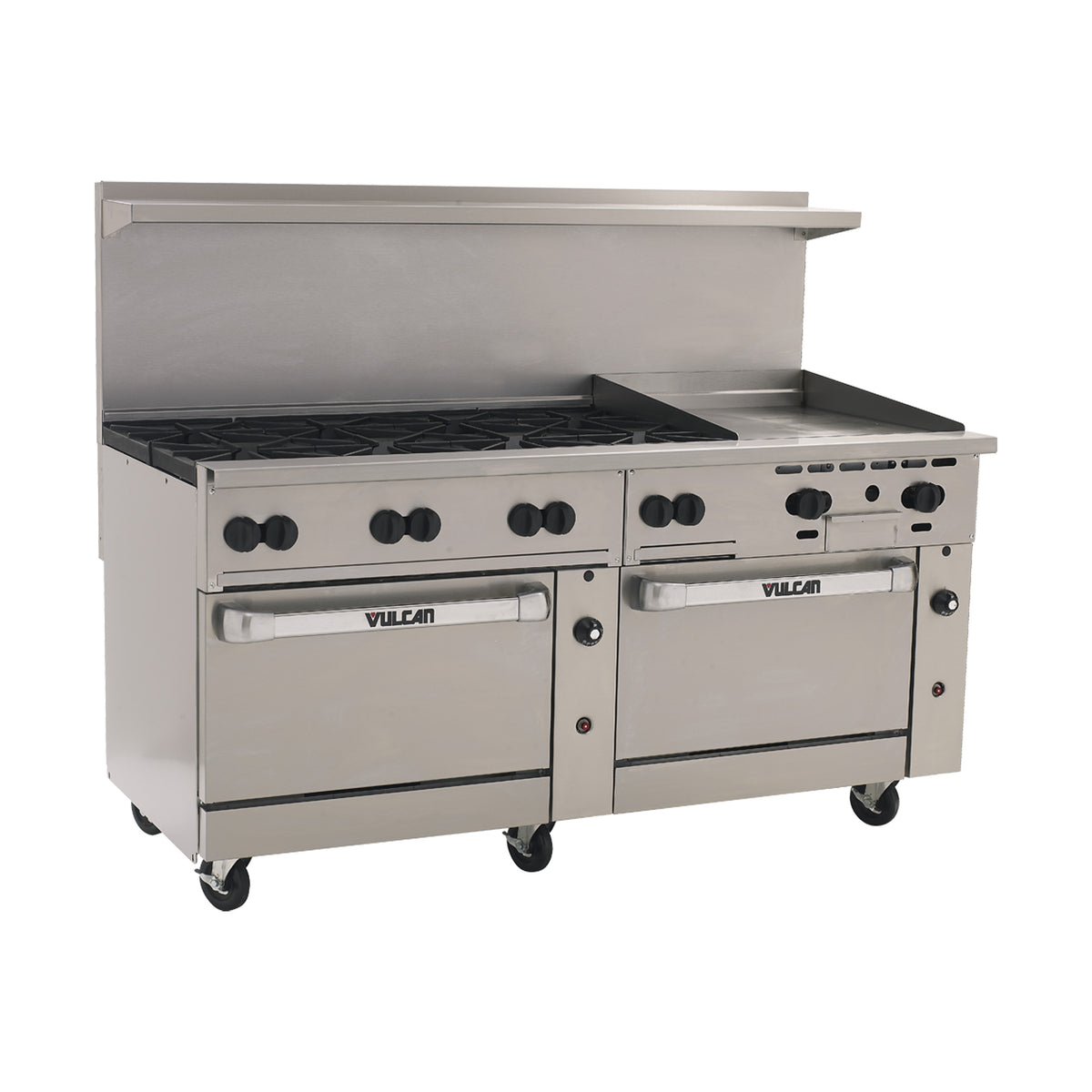

Vulcan 72SC-8B24GT Commercial Gas Range
The Vulcan 72SC-8B24GT is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 72 inches wide, 34 inches deep and 72 inches high. The top configuration is (8) open burners, (1) 24" griddle with thermostats. Its exterior specification is stainless steel front & sides.
Configuration and daily use
- Top: (8) open burners, (1) 24" griddle with thermostats
- Number of Burners: 8 burners
- Number Of Ovens: 2
- Oven Type: standard & convection oven
- Control Type: thermostatic control
- Base Type: oven base
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | 72SC-8B24GT |
| Weight | 1110 lbs |
| Width | 72 in. |
| Depth | 34 in. |
| Height | 72 in. |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Number of Burners | 8 burners |
| Base Type | oven base |
| Oven Type | standard & convection oven |
| Number Of Ovens | 2 |
| Control Type | thermostatic control |
| Top Configuration | burner & griddle |
| Plate Thickness | .750" = 3/4" |
| Exterior Finish | stainless steel front & sides |
| Top | (8) open burners, (1) 24" griddle with thermostats |
| Vent | backriser with hi-shelf |
| Total BTU | 350,000 |
| Burner BTU | 30,000 |
| Oven BTU | 35,000 & 35,000 |
| Griddle/Charbroiler BTU | 40,000 |
| Griddle/Charbroiler Location | right |
Planning your installation
Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
