Description

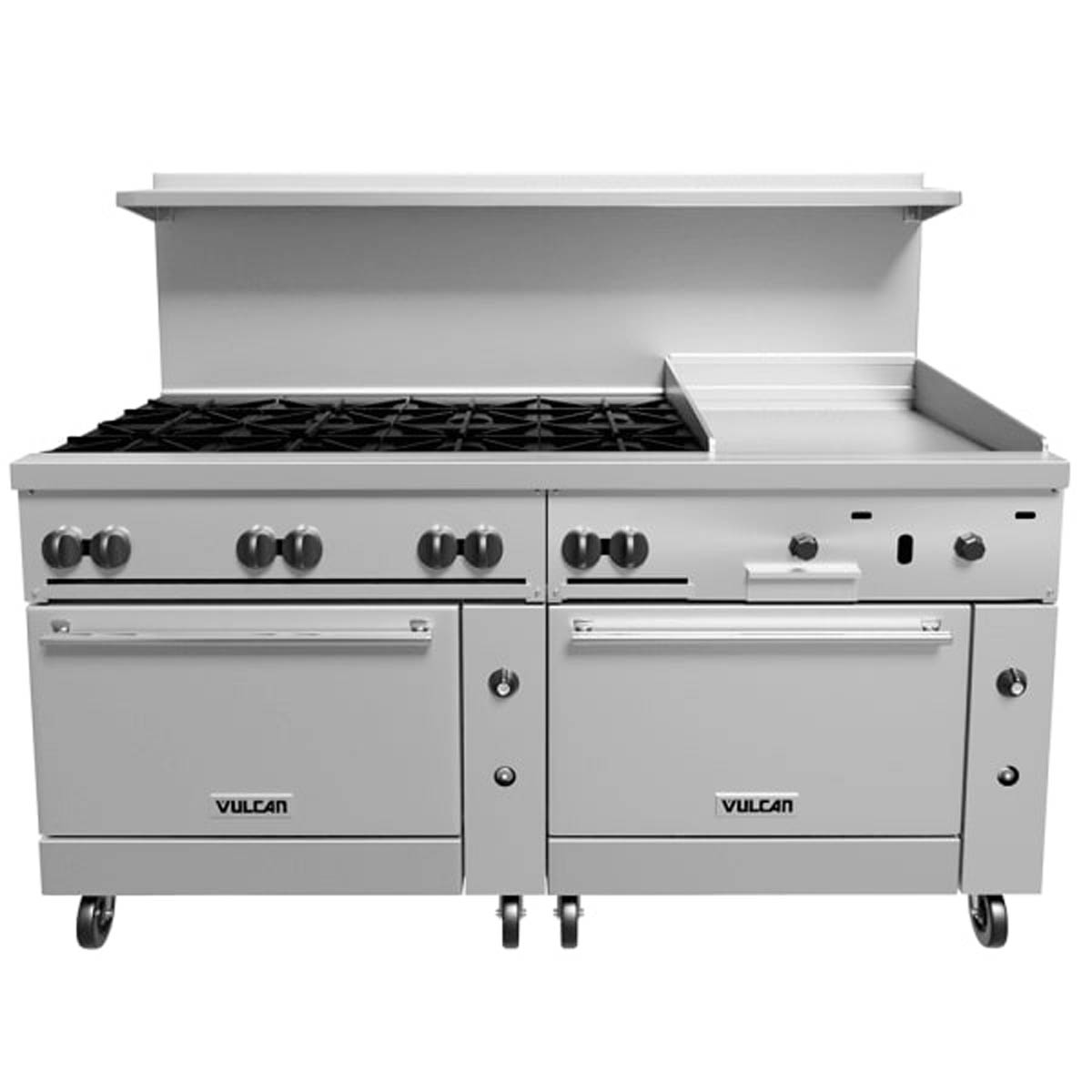

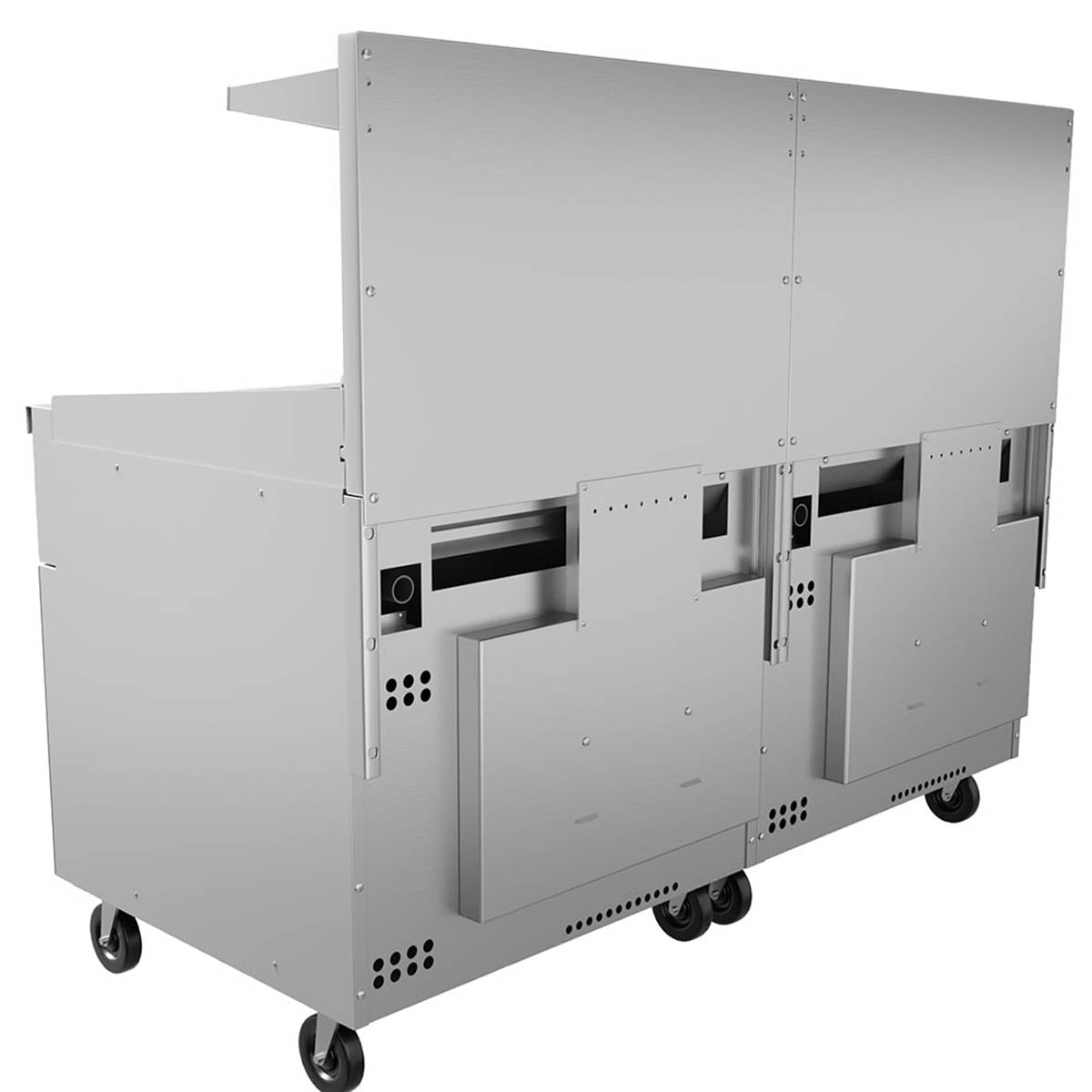

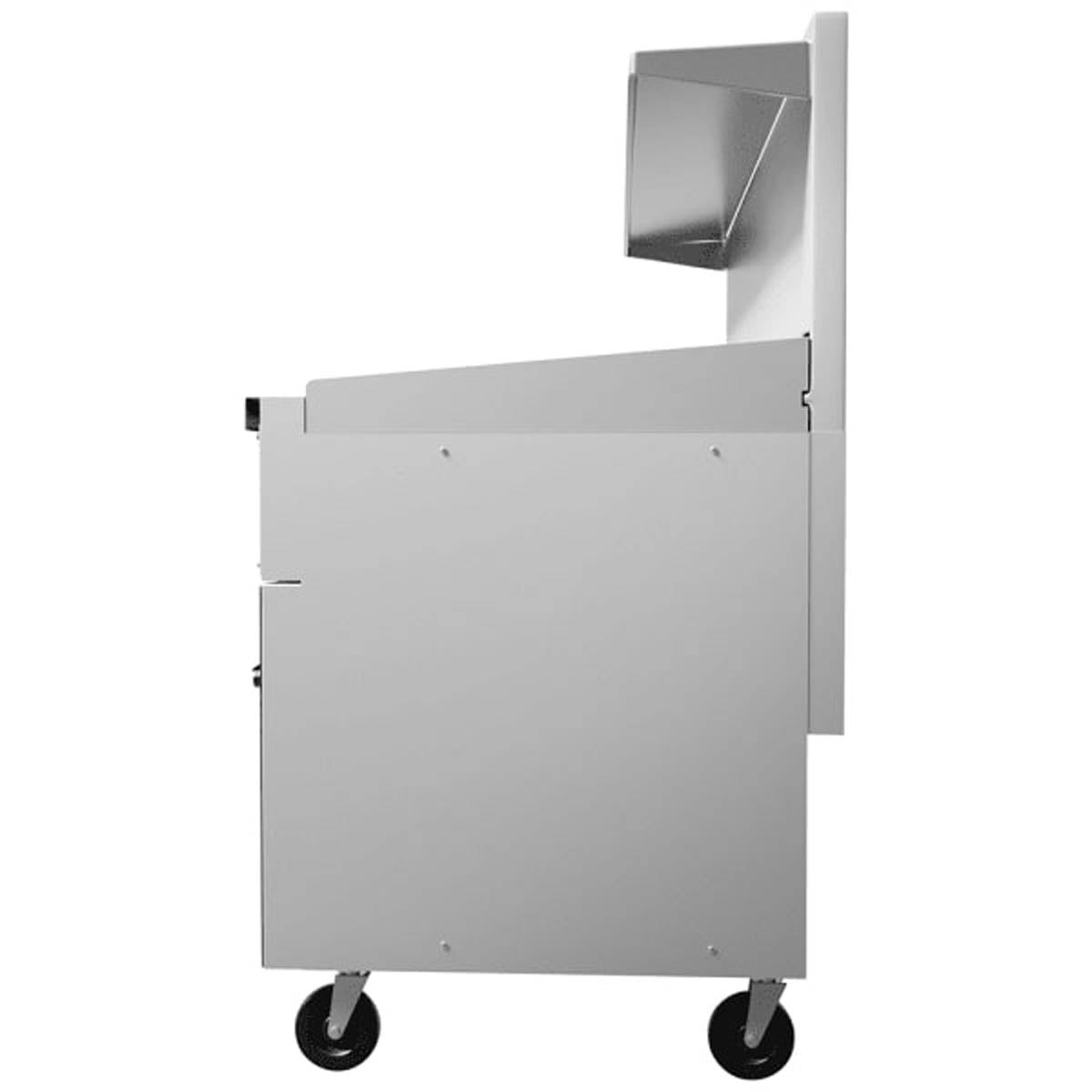

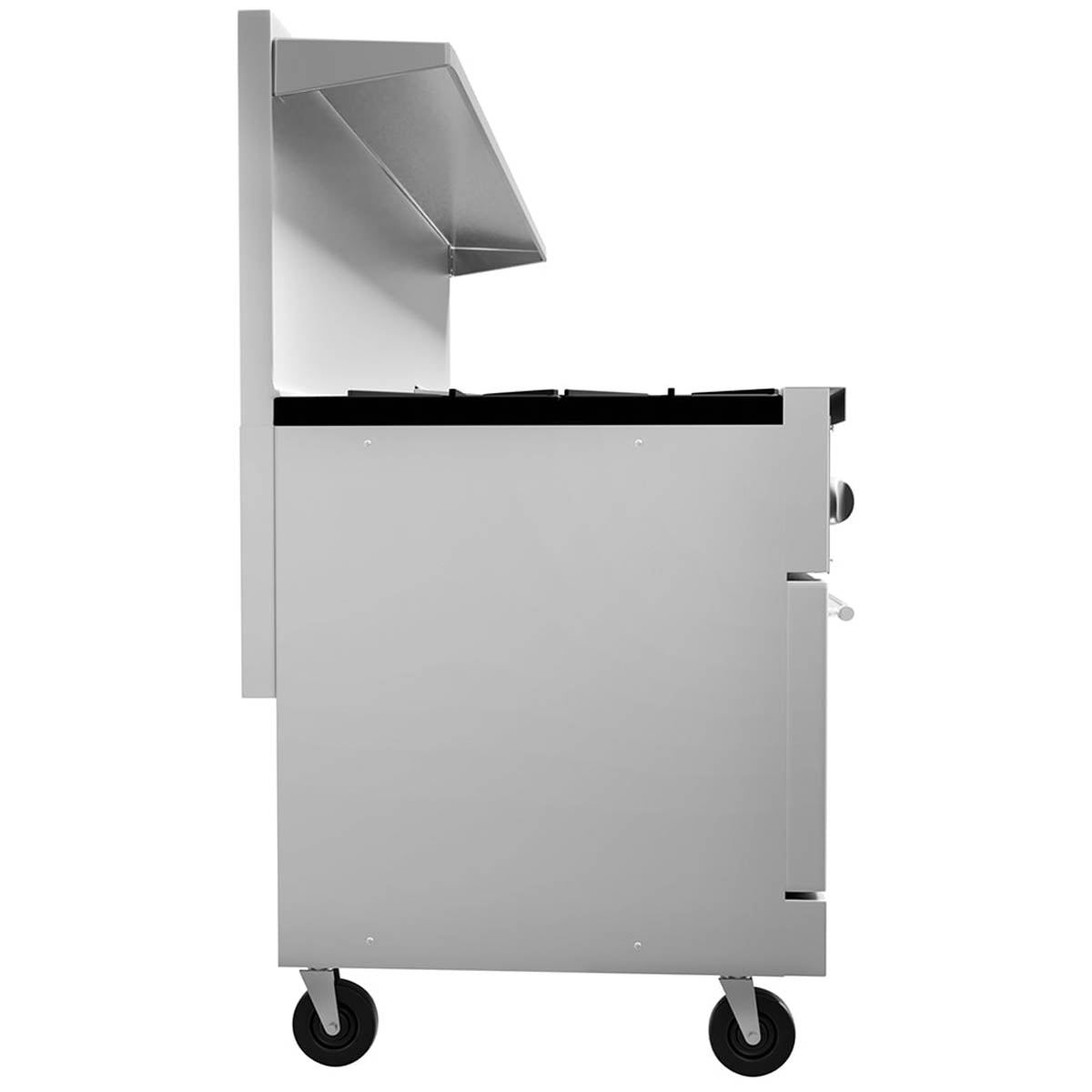

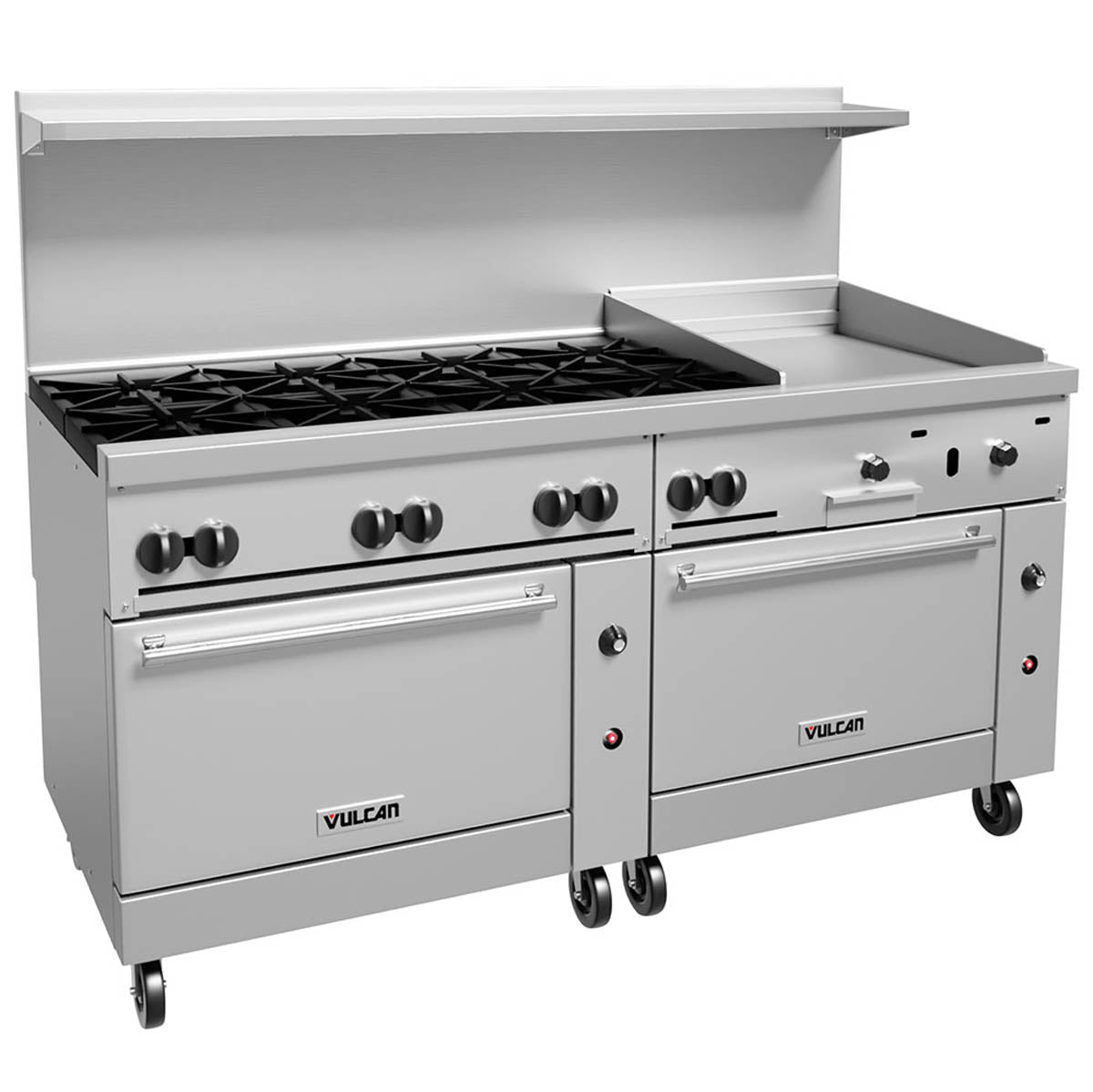

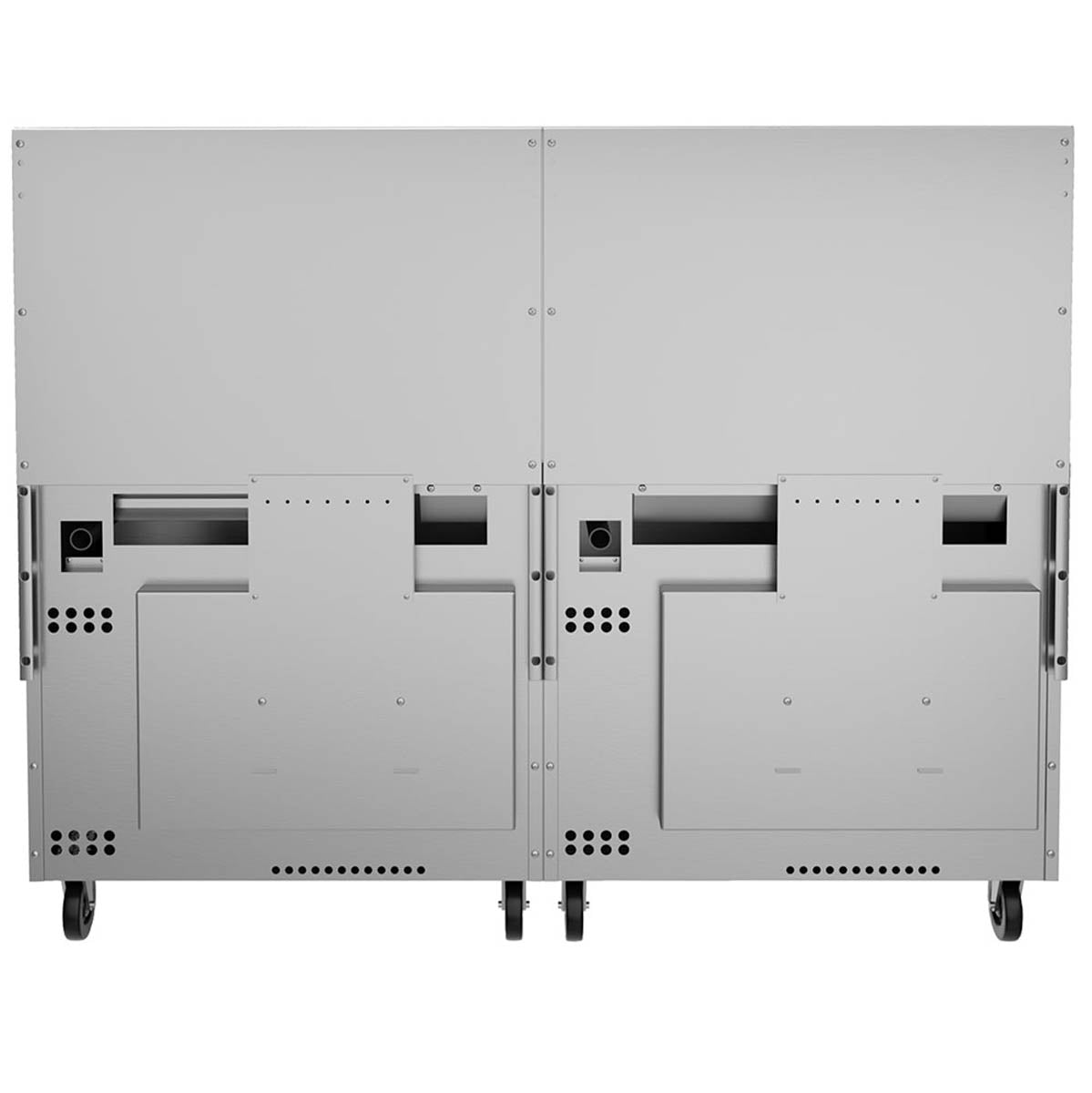

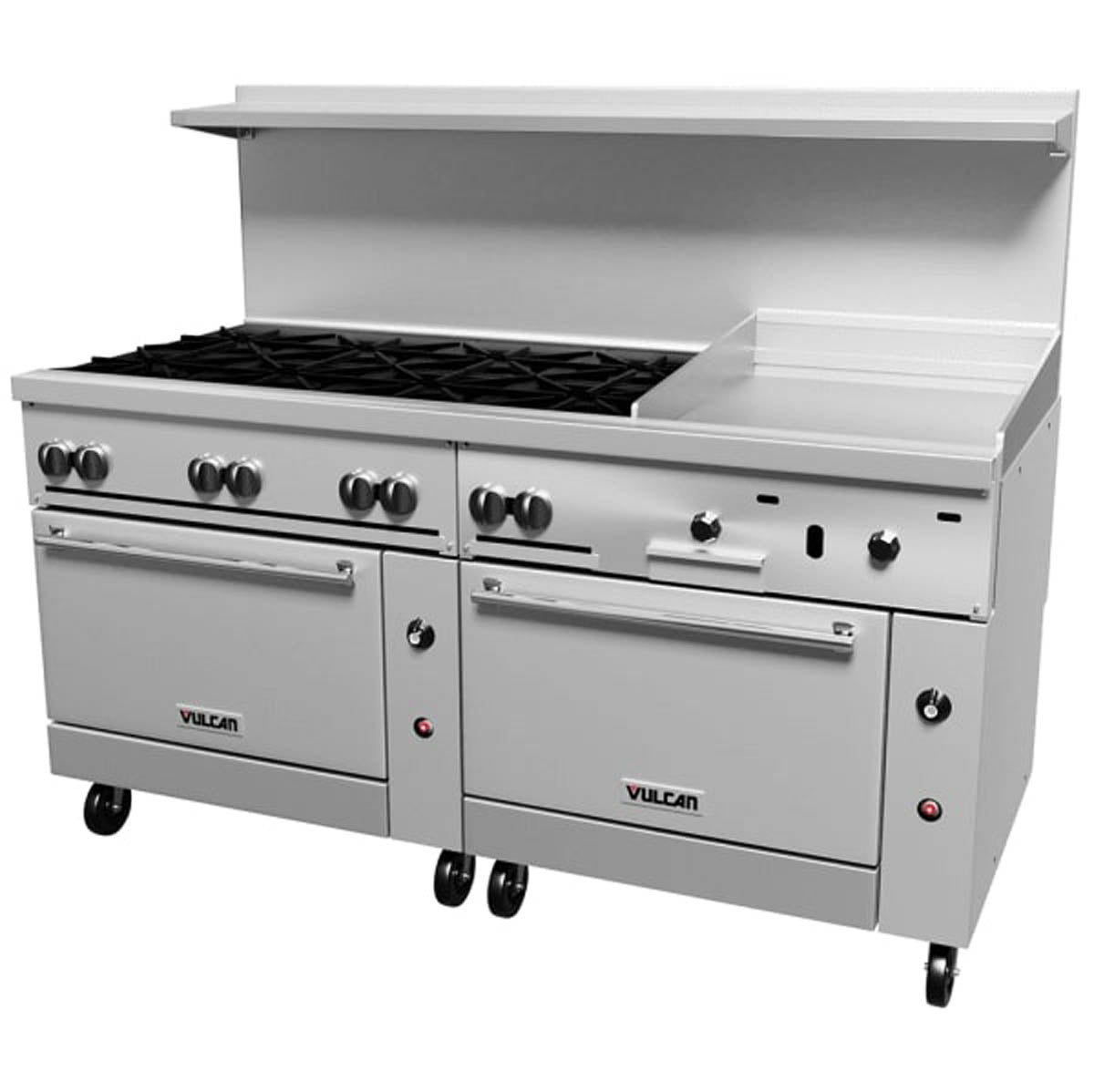

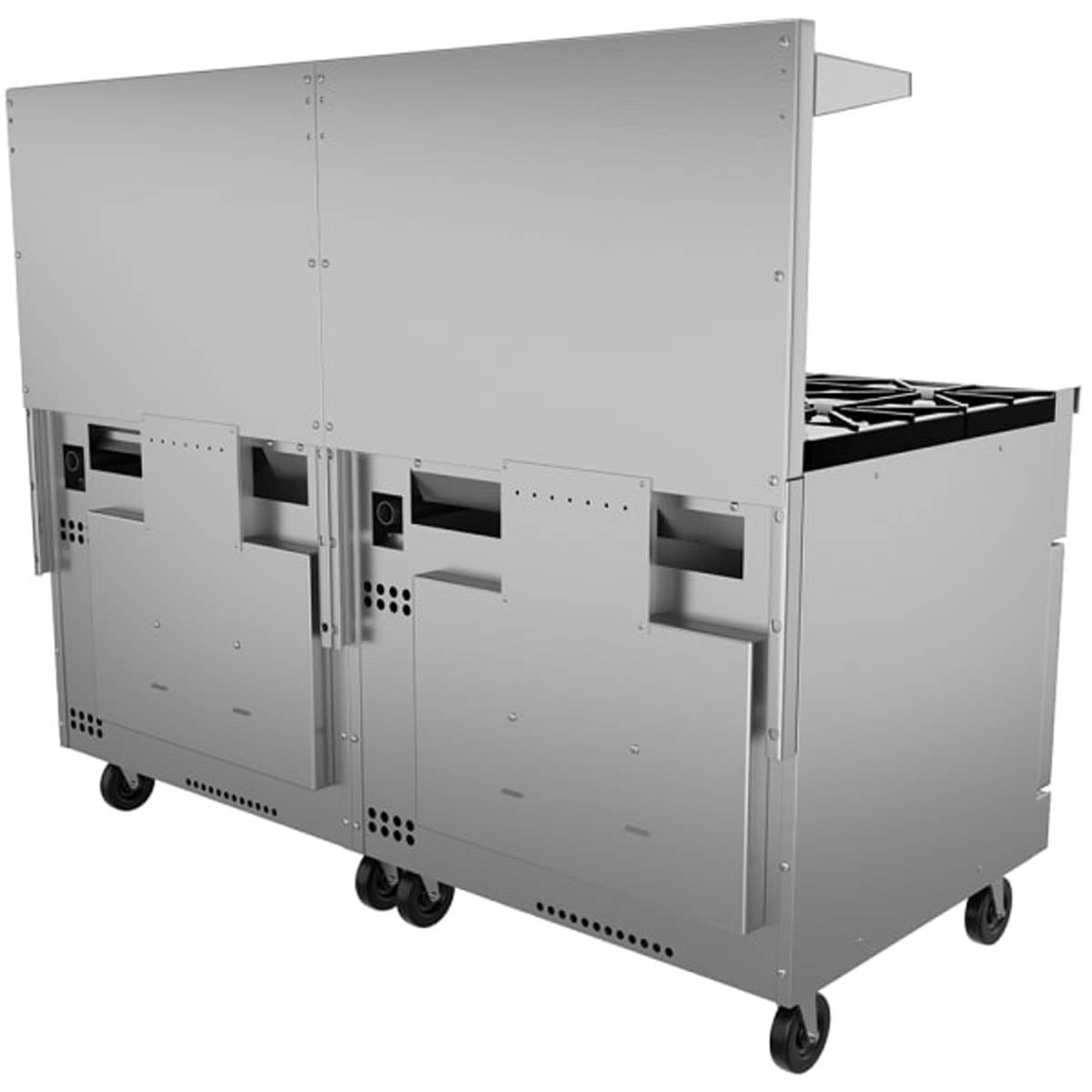

Vulcan 72SS-8B24G Commercial Gas Range
The Vulcan 72SS-8B24G is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 72 inches wide, 34 inches deep and 58 inches high. The top configuration is (8) open burners, (1) 24" griddle. Its exterior specification is stainless steel front & sides.
Configuration and daily use
- Top: (8) open burners, (1) 24" griddle
- Number of Burners: 8 burners
- Number Of Ovens: 2
- Oven Type: standard oven
- Control Type: manual control
- Base Type: oven base
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | 72SS-8B24G |
| Weight | 1050 lbs |
| Width | 72 in. |
| Depth | 34 in. |
| Height | 58 in. |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Number of Burners | 8 burners |
| Base Type | oven base |
| Oven Type | standard oven |
| Number Of Ovens | 2 |
| Control Type | manual control |
| Top Configuration | burner & griddle |
| Plate Thickness | .750" = 3/4" |
| Exterior Finish | stainless steel front & sides |
| Top | (8) open burners, (1) 24" griddle |
| Vent | backriser with hi-shelf |
| Total BTU | 350,000 |
| Burner BTU | 30,000 |
| Griddle/Charbroiler BTU | 40,000 |
| Griddle/Charbroiler Location | right |
Planning your installation

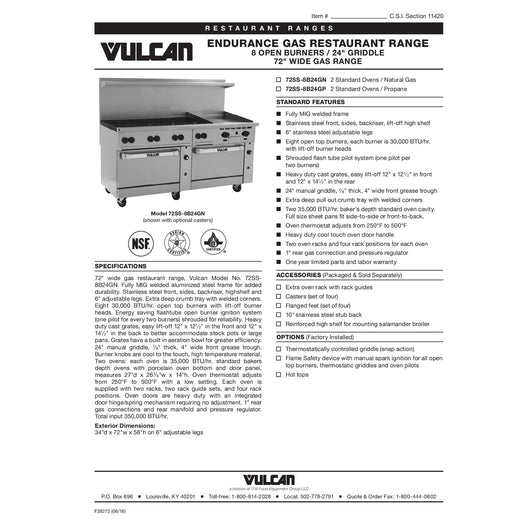

Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
