Description

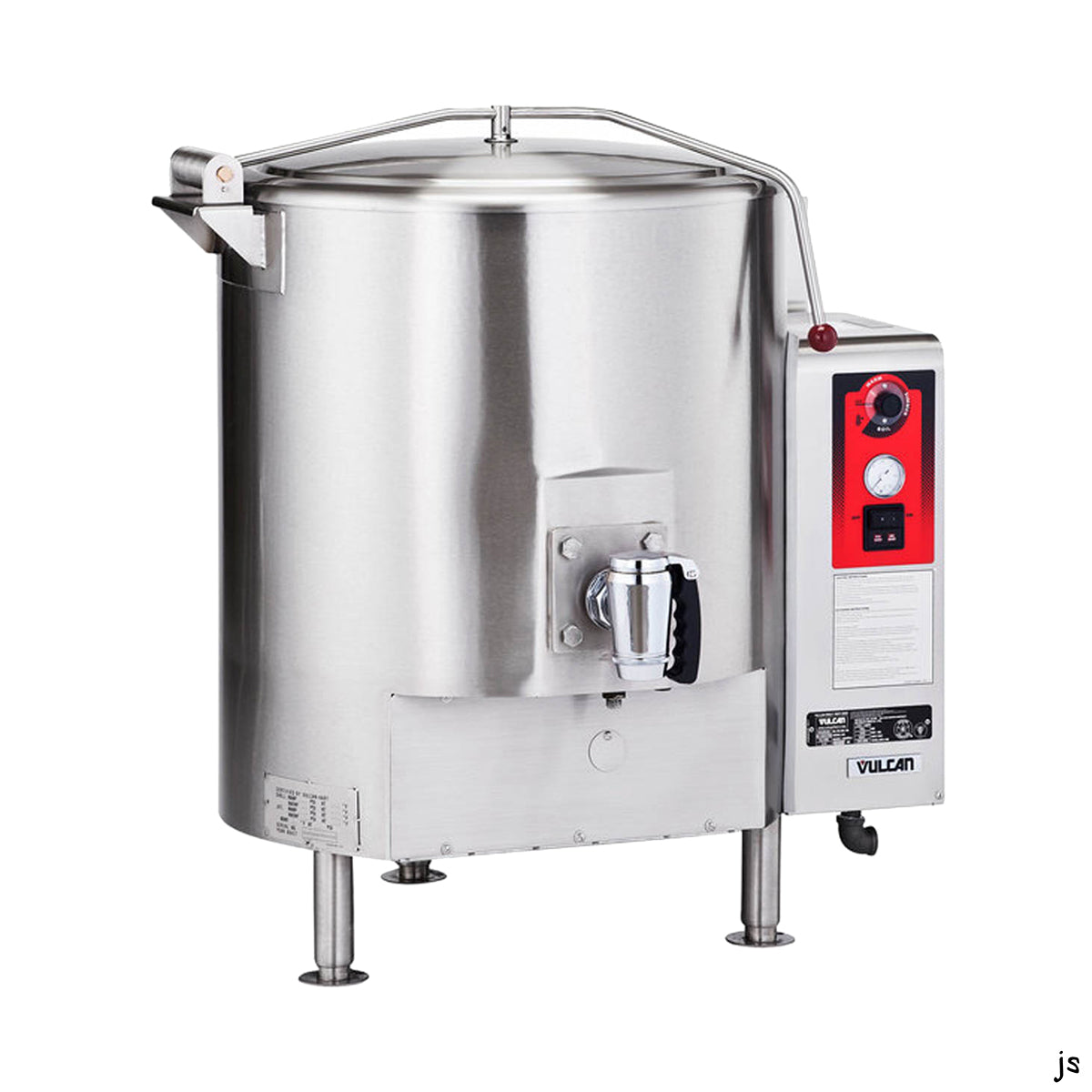

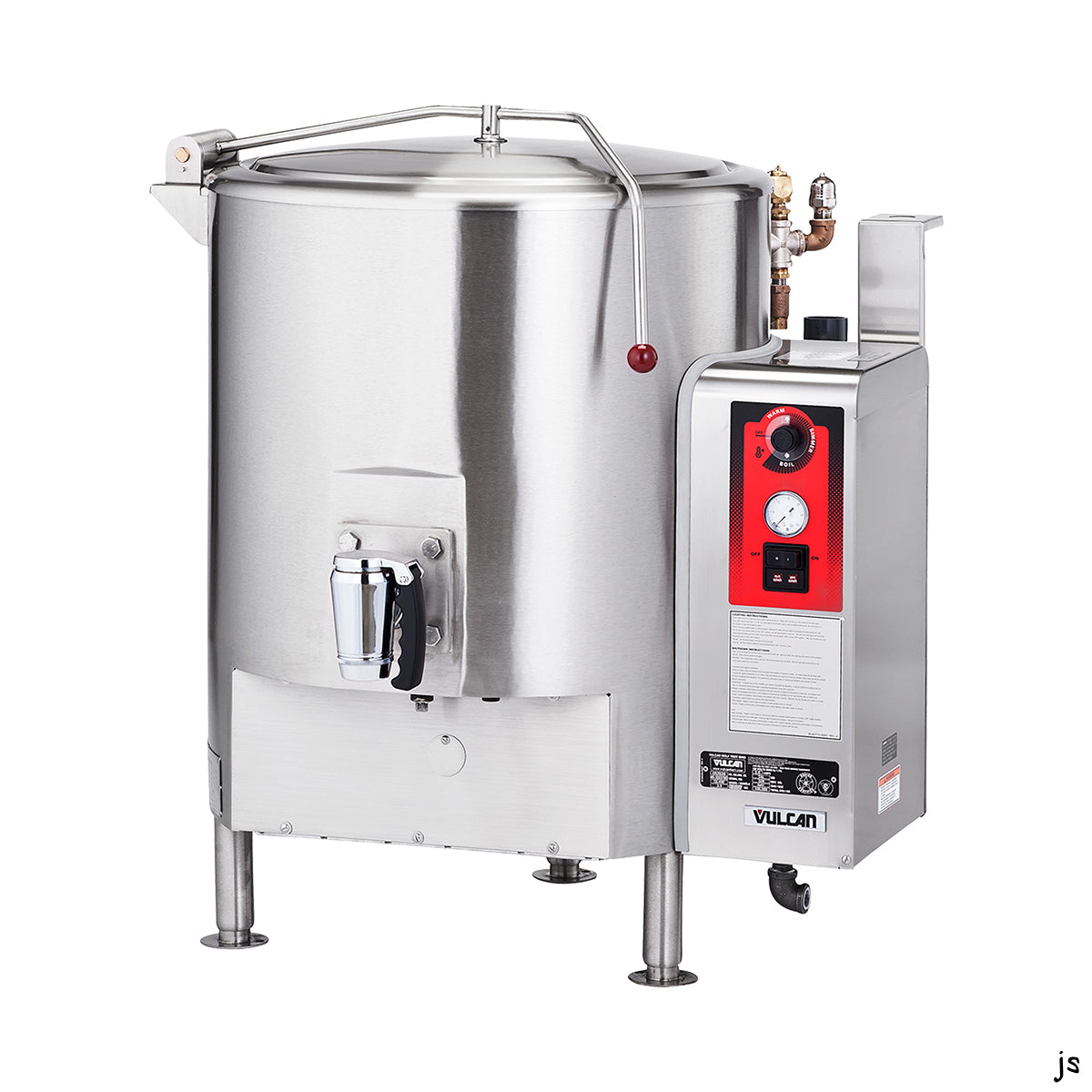

Vulcan EL80 Electric Steam Kettle
The Vulcan EL80 is an electric steam kettle. Plan batch preparation of soups, sauces and similar liquid foods around the listed kettle capacity and operating configuration. The unit measures 58.5 inches wide, 41.5 inches deep and 40 inches high.
Configuration and daily use
- Capacity (gallons): 80 gallons
- Operation Type: stationary
- Base Type: tri-leg
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | EL80 |
| Weight | 734 lbs |
| Width | 58.5 in. |
| Depth | 41.5 in. |
| Height | 40 in. |
| Product Type | standard kettle |
| Installation Type | floor model |
| Power Type | electric |
| Operation Type | stationary |
| Jacket Type | full steam jacket |
| Number of Kettles | single |
| Base Type | tri-leg |
| Kettle Liner | 316 stainless steel |
| Voltage | 208, 240, 480, 440, 380, 415 V (configuration options) |
| Phase | 3 |
| Capacity (gallons) | 80 |
Planning your installation
Compare stationary or tilting operation, jacket type, utilities and discharge arrangements for your workflow. Review the applicable manufacturer documents for clearance, utility and installation instructions.
