Description

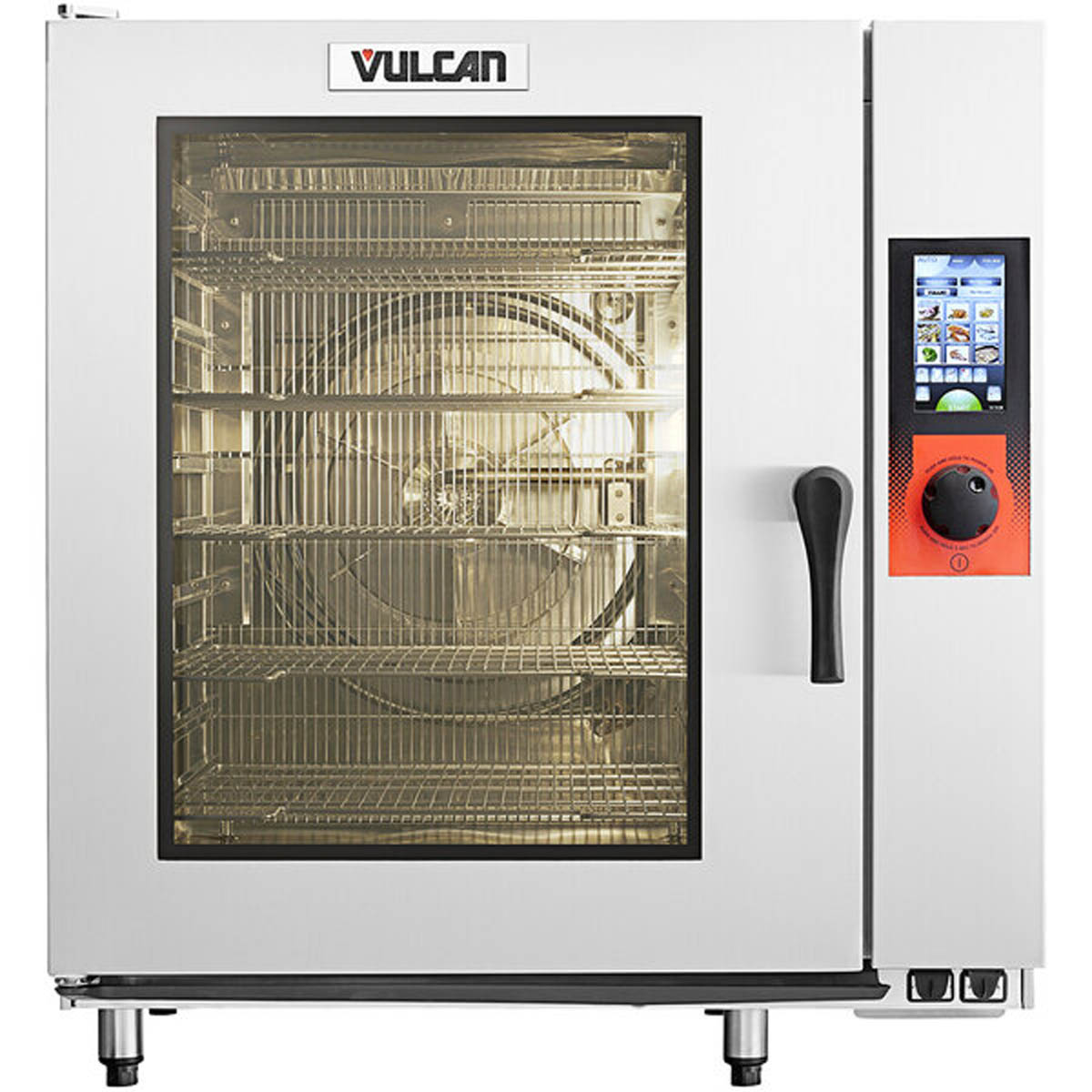

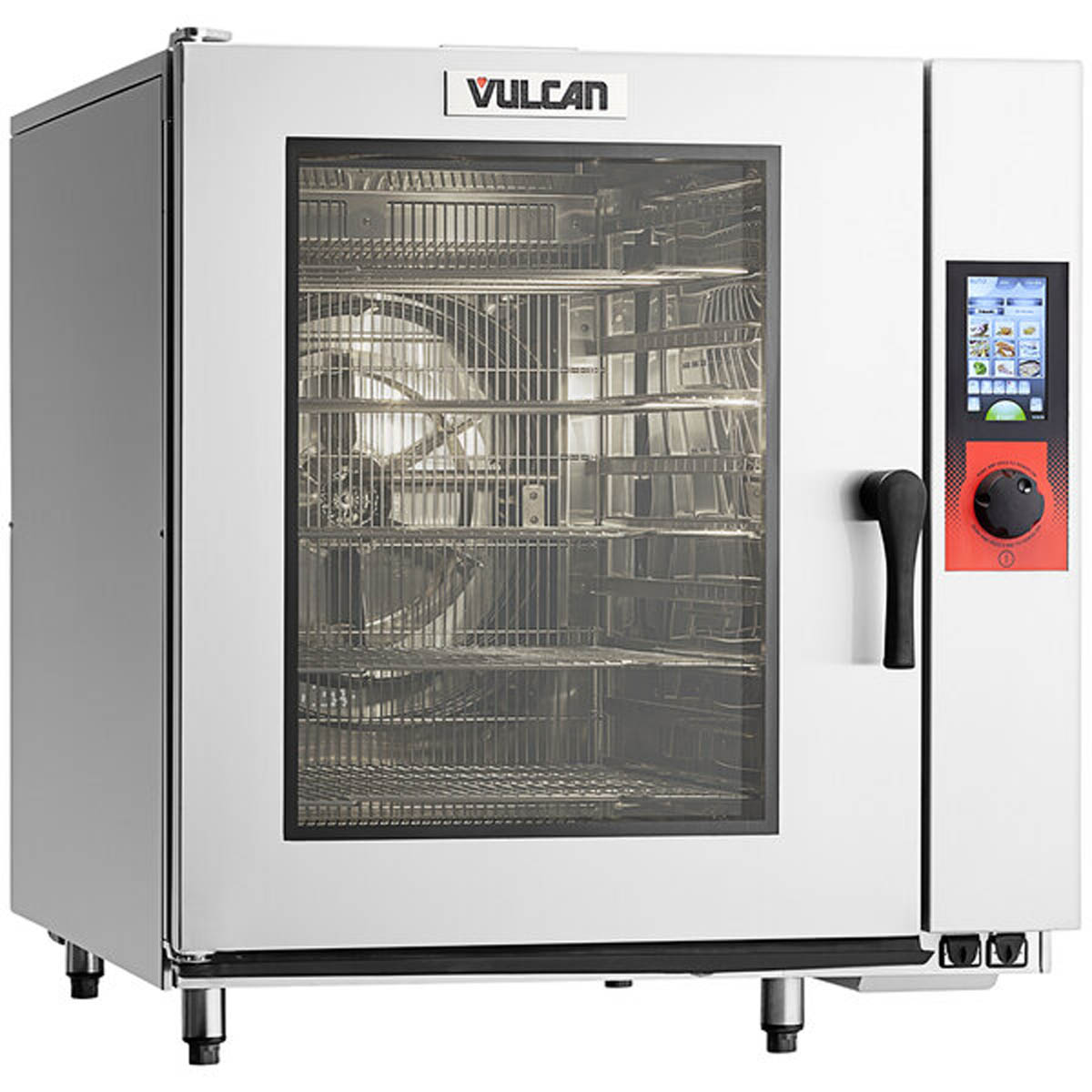

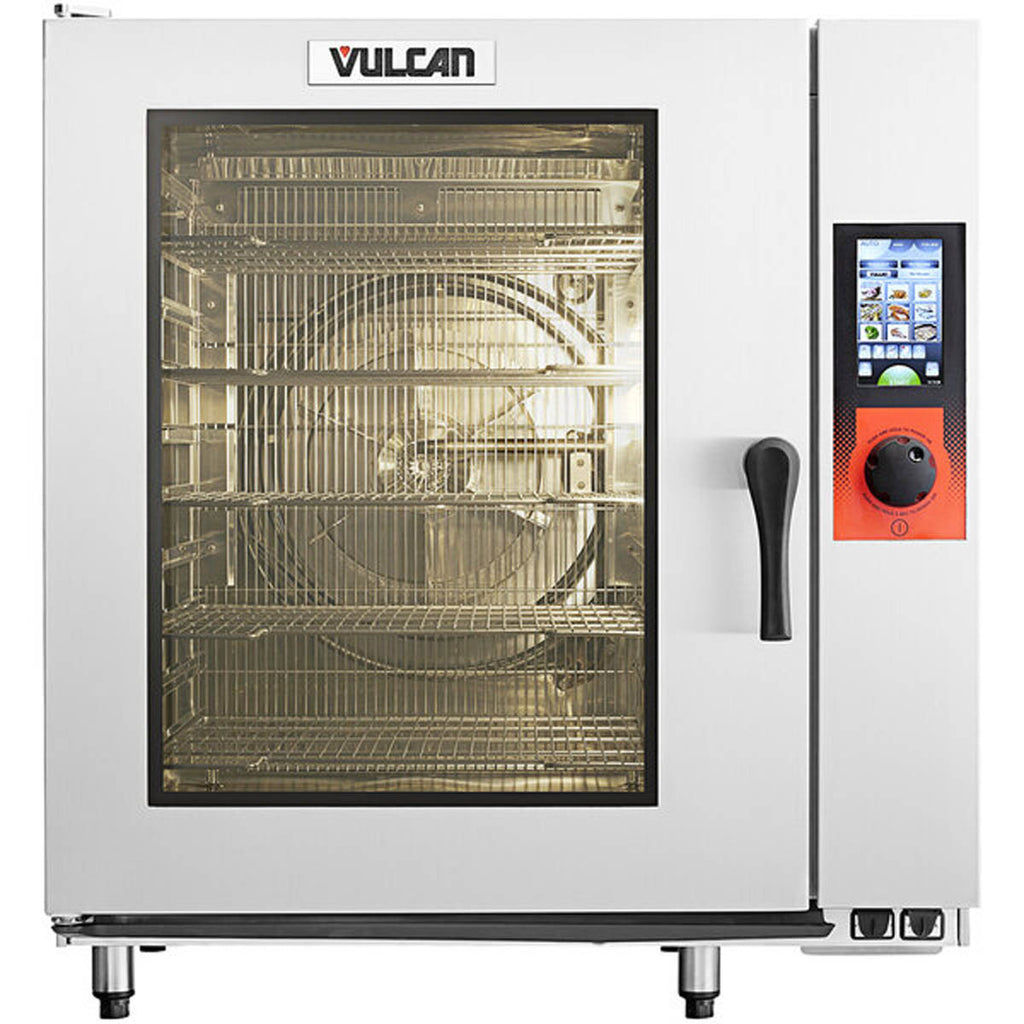

Vulcan TCM-102E-480 Electric Combi Oven
The Vulcan TCM-102E-480 is an electric combi oven. Combine convection and steam cooking in a commercial oven to support a varied production menu. The unit measures 36.22 inches wide, 46.1 inches deep and 42.08 inches high. Operation uses touchscreen controls.
Configuration and daily use
- Control Type: touchscreen controls
- Steam Source: boilerless
- Sheet Pan Capacity (18" x 26"): 10
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | TCM-102E-480 |
| Weight | 377 lbs |
| Width | 36.22 in. |
| Depth | 46.1 in. |
| Height | 42.08 in. |
| Installation Type | floor model |
| Power Type | electric |
| Steam Source | boilerless |
| Size | half size |
| Control Type | touchscreen controls |
| Voltage | 480 V |
| Certifications | NSF, cULus |
| Phase | 3 |
| Steam Table Pan Capacity (12" x 20" / GN 1/1) | 20 |
| Sheet Pan Capacity (18" x 26") | 10 |
Planning your installation
Compare pan format, controls, water treatment and utility requirements before selecting the installation location. Review the applicable manufacturer documents for clearance, utility and installation instructions.
