Description

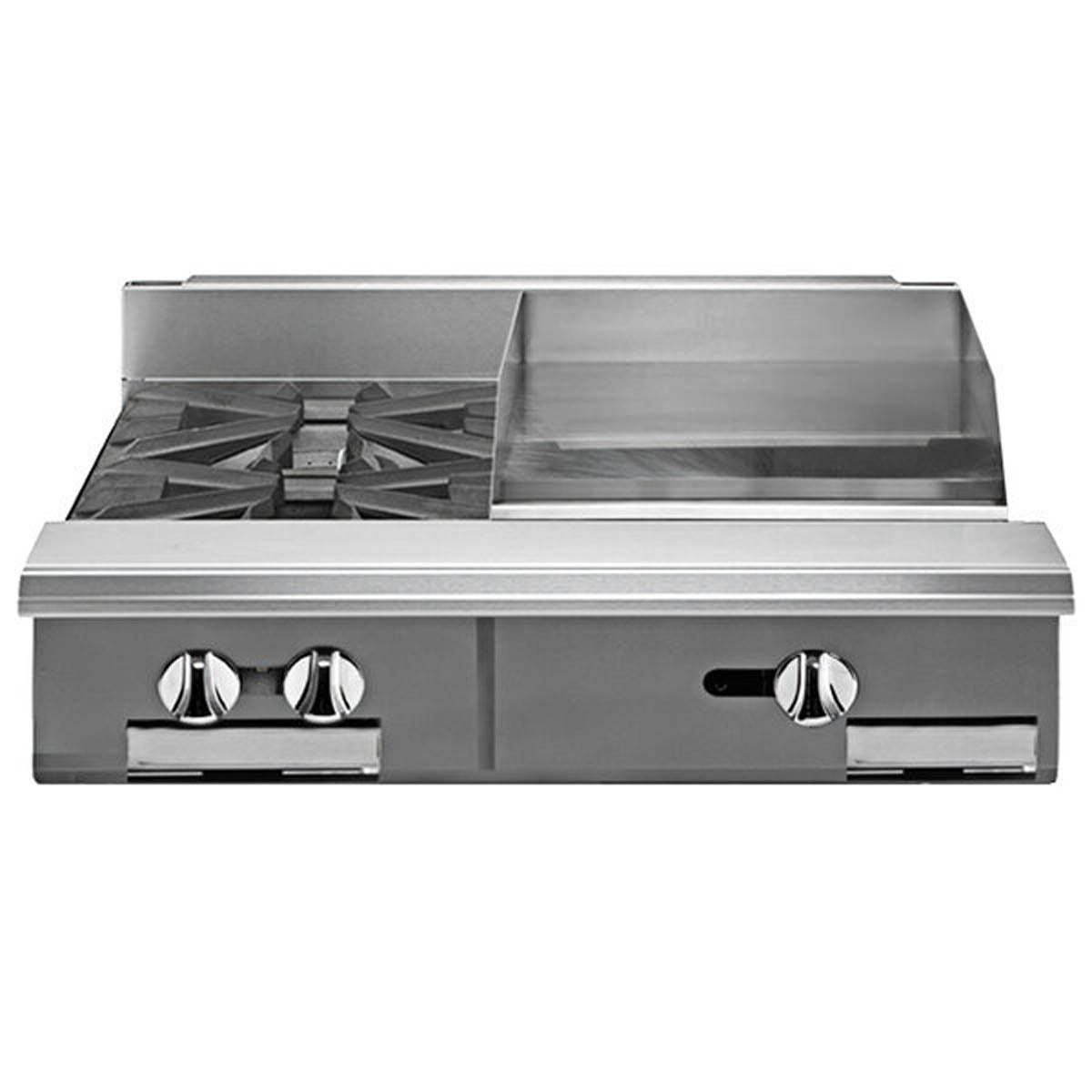

Vulcan V2BG8T Commercial Gas Range
The Vulcan V2BG8T is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 36 inches wide, 36.75 inches deep and 13.75 inches high. The top configuration is (2) open burners, (1) 18" griddle with thermostats. Its exterior specification is stainless steel front & sides.
Configuration and daily use
- Top: (2) open burners, (1) 18" griddle with thermostats
- Number of Burners: 2 burners
- Control Type: thermostatic control
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | V2BG8T |
| Weight | 332 lbs |
| Width | 36 in. |
| Depth | 36.75 in. |
| Height | 13.75 in. |
| Installation Type | modular |
| Range Type | heavy duty/modular range |
| Number of Burners | 2 burners |
| Control Type | thermostatic control |
| Top Configuration | burner & griddle |
| Plate Thickness | .750" = 3/4" |
| Exterior Finish | stainless steel front & sides |
| Top | (2) open burners, (1) 18" griddle with thermostats |
| Total BTU | 100,000 |
| Burner BTU | 35,000 |
| Griddle/Charbroiler BTU | 30,000 |
| Griddle/Charbroiler Location | right |
Planning your installation

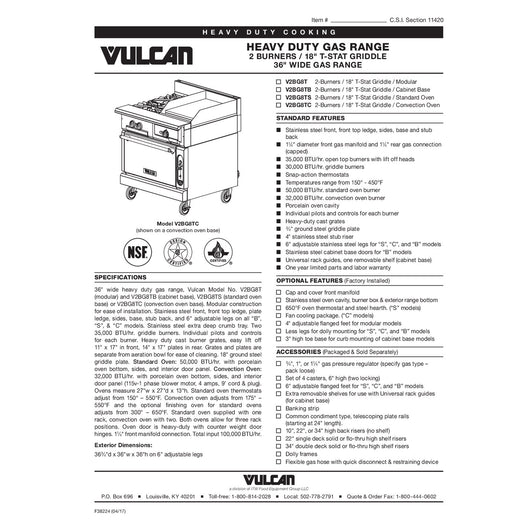

Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
