Description

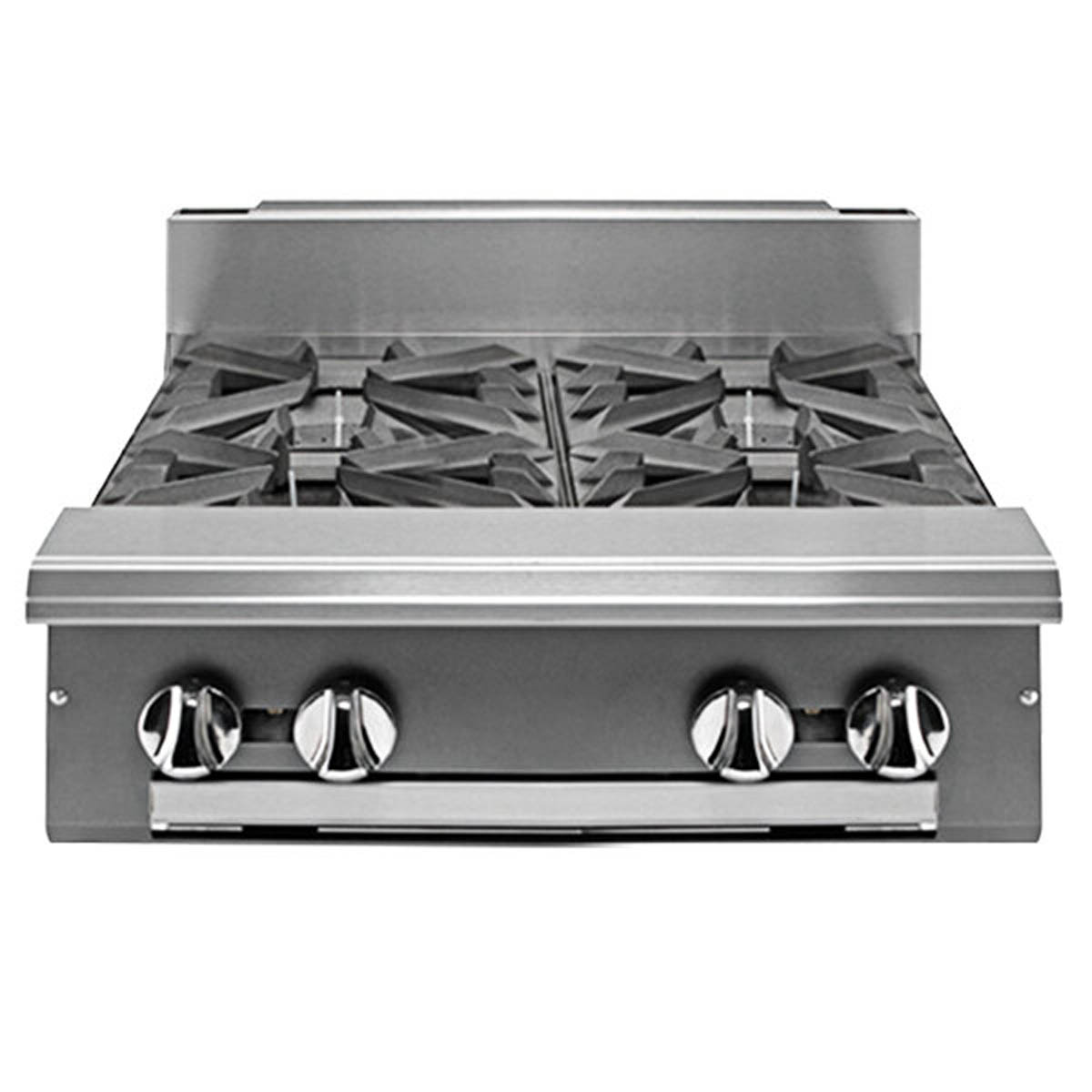

Vulcan V4B24 Commercial Gas Range
The Vulcan V4B24 is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 24 inches wide, 36.75 inches deep and 13.75 inches high. The top configuration is (4) open burners. Its exterior specification is all stainless steel exterior.
Configuration and daily use
- Top: (4) open burners
- Number of Burners: 4 burners
- Control Type: manual control
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | V4B24 |
| Weight | 220 lbs |
| Width | 24 in. |
| Depth | 36.75 in. |
| Height | 13.75 in. |
| Installation Type | modular |
| Range Type | heavy duty/modular range |
| Number of Burners | 4 burners |
| Control Type | manual control |
| Top Configuration | burner |
| Exterior Finish | all stainless steel exterior |
| Top | (4) open burners |
| Total BTU | 140,000 |
| Burner BTU | 35,000 |
Planning your installation

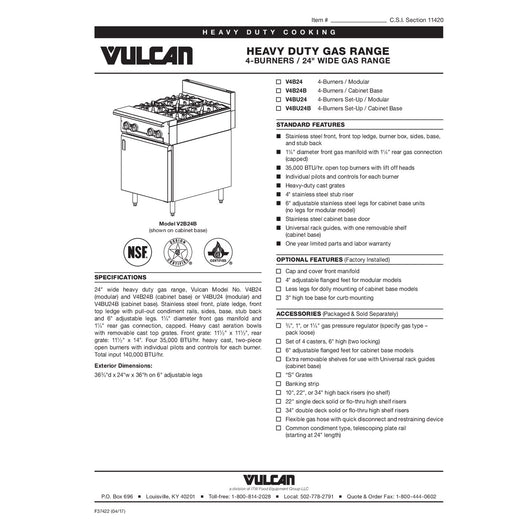

Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
