Description

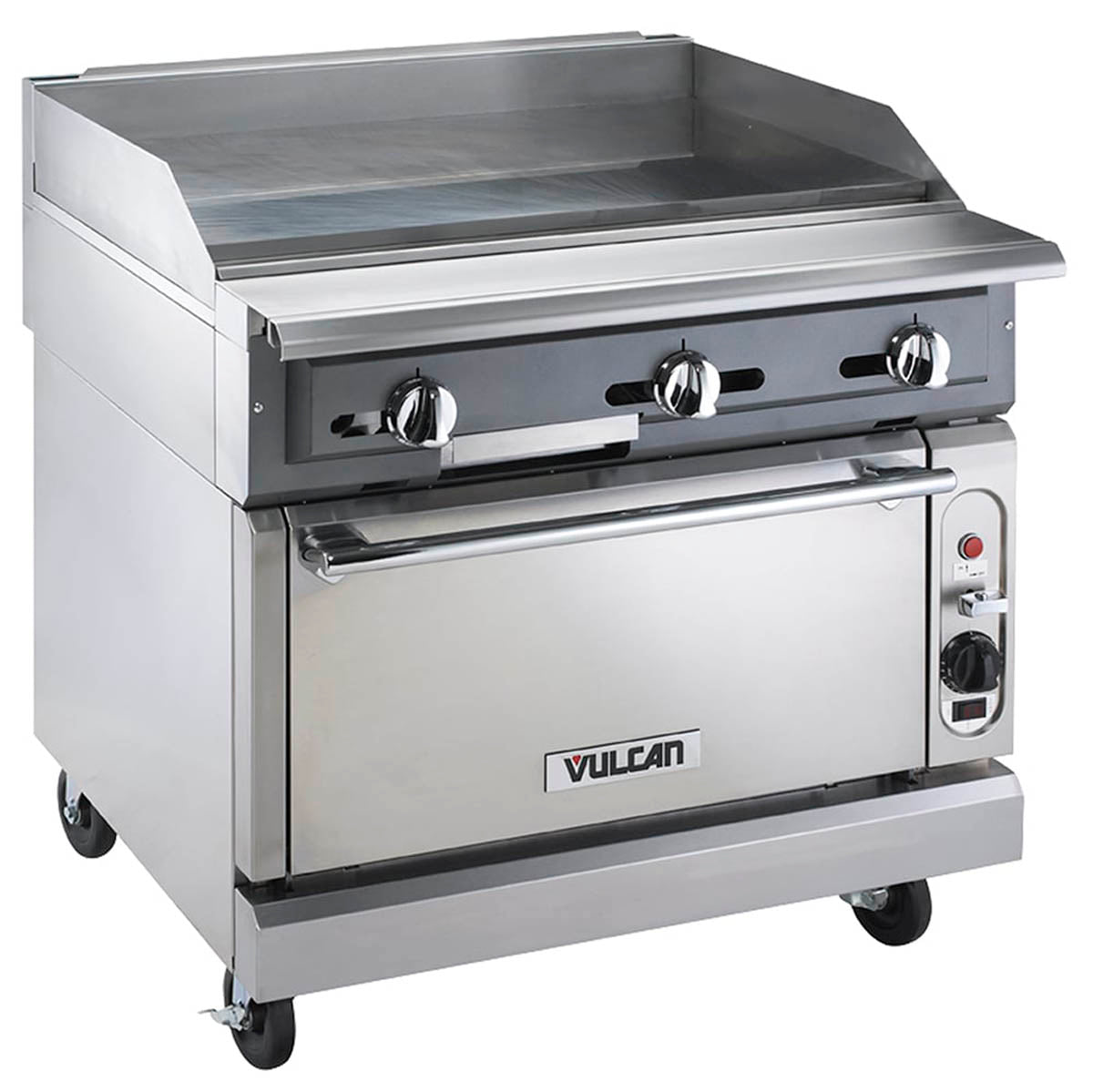

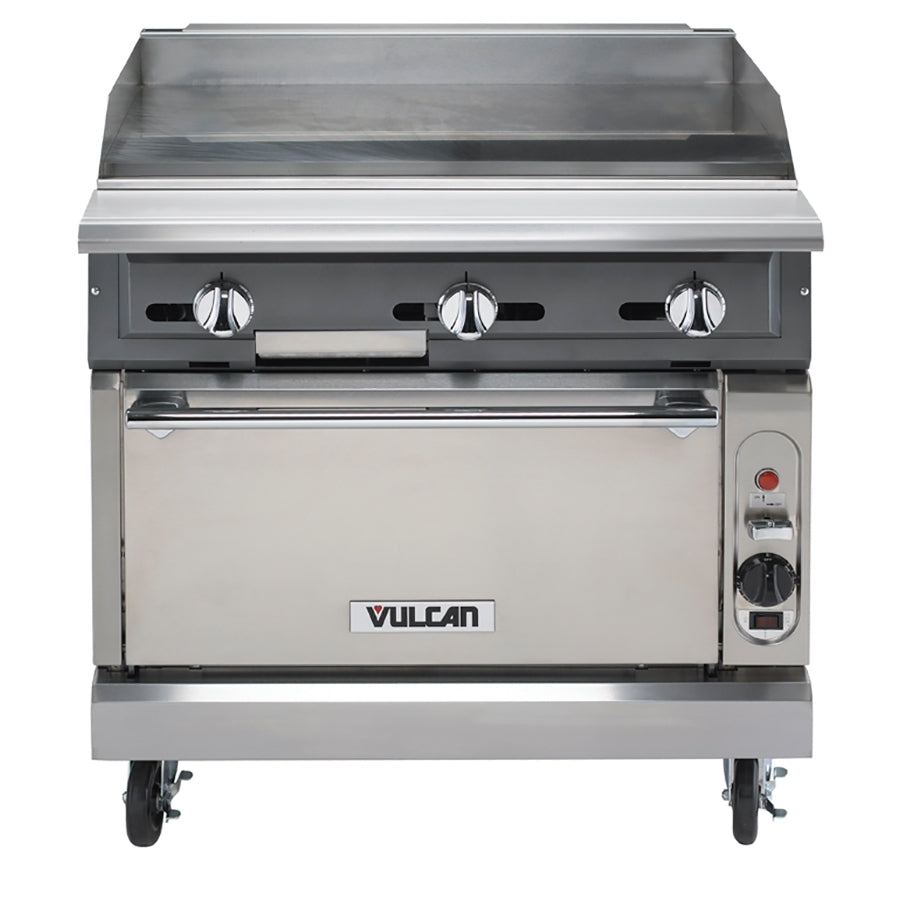

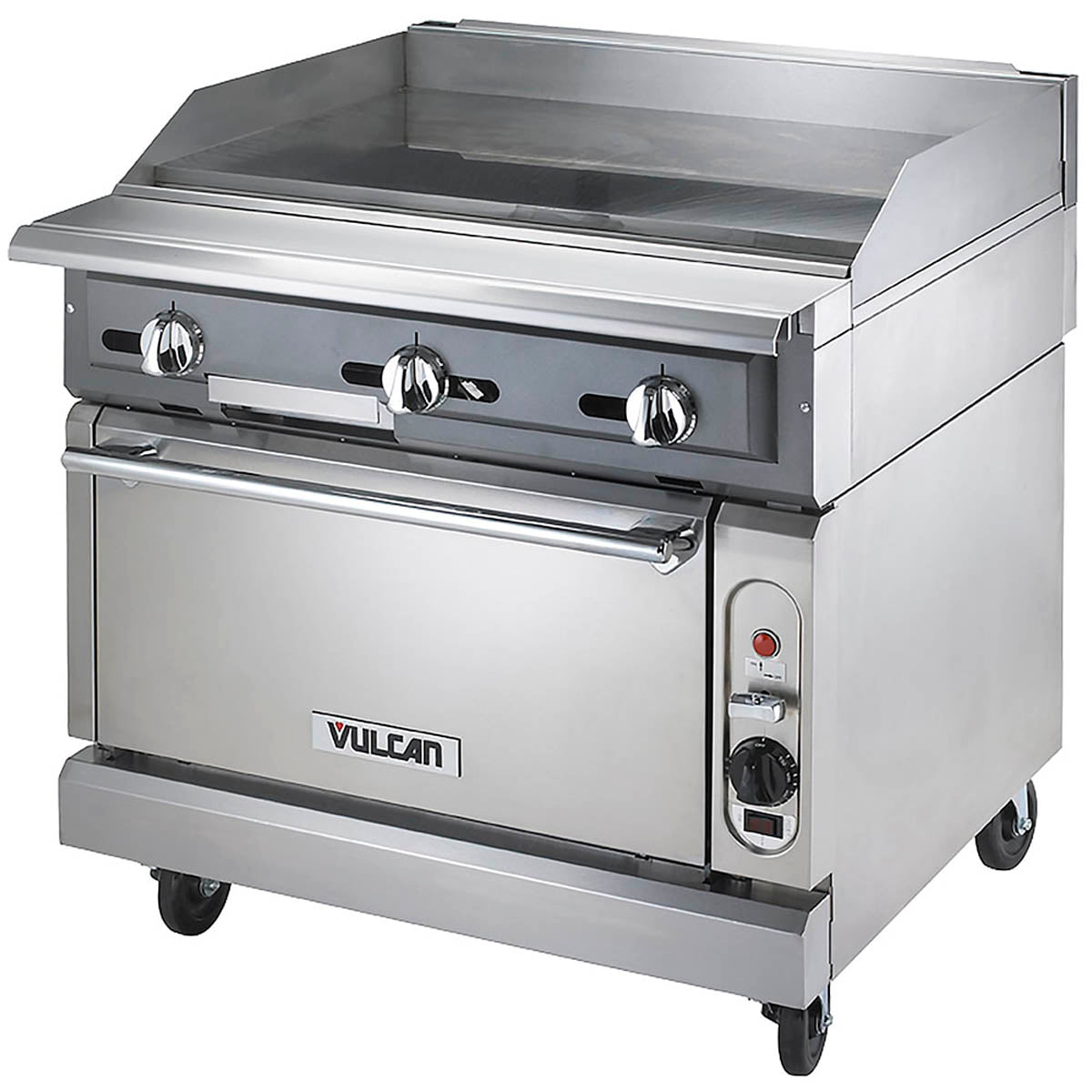

Vulcan VGM36B Commercial Gas Range
The Vulcan VGM36B is a commercial gas range. Build a cooking line around open-burner cookware tasks and the cooking surfaces or oven configuration specified below. The unit measures 36 inches wide, 36.75 inches deep and 40.5 inches high. The top configuration is (1) griddle. Its exterior specification is stainless steel front & sides.
Configuration and daily use
- Top: (1) griddle
- Control Type: manual control
- Base Type: cabinet/storage base
Technical specifications
| Manufacturer | Vulcan |
|---|---|
| Model / ordering code | VGM36B |
| Weight | 504 lbs |
| Width | 36 in. |
| Depth | 36.75 in. |
| Height | 40.5 in. |
| Installation Type | free standing |
| Range Type | heavy duty/modular range |
| Base Type | cabinet/storage base |
| Control Type | manual control |
| Top Configuration | griddle |
| Plate Thickness | .750" = 3/4" |
| Exterior Finish | stainless steel front & sides |
| Top | (1) griddle |
| Total BTU | 90,000 |
| Griddle/Charbroiler BTU | 90,000 |
| Griddle/Charbroiler Location | full surface |
Planning your installation
Compare the burner layout, oven type and gas connection with your menu and available ventilation. Review the applicable manufacturer documents for clearance, utility and installation instructions.
