Vulcan VP18 18-Pan Non-Insulated Heated Holding & Proofing Cabinet, Glass Door, Ambient to 190°F, 120V

Vulcan VP18 18-Pan Non-Insulated Heated Holding & Proofing Cabinet, Glass Door, Ambient to 190°F, 120V

VulcanSKU: VUL-VP18-QS-PLATINUM

Price:
Regular price$3,323.00

$3,323Free shipping included

  • Free shipping on this item
  • Warranty · 1-yr Limited Parts and Labor

Secure checkout

Apple Pay Diners ClubDiscoverGoogle Pay Mastercard Shop Pay Visa

Talk to an equipment specialist

Mon–Sat 8 AM–5 PM ET

Questions about size, power, delivery or a quote for several units?

Call

Will it fit · Will it plug in

Outside (W × D × H)25‑1/4" × 30‑3/4" × 71"
Power120V · 16.7 A · NEMA 5‑20P
Capacity18 Pans 18" x 26" or 36 Pans 12" x 20" x 2-3/4"
TemperatureAmbient to 190°F
Shipping weight236 lb.
ListedUL, NSF

Measure every doorway on the delivery path before you order.

Highlights

  • 18 x 18" x 26" or 36 x 12" x 20" pans; 10 pairs of tray slides included
  • Proof/hold switch, dial thermostat ambient to 190°F, thermometer
  • 1/2 gallon water pan, drip trough and removable condensation pan
  • Fan and air tunnel heat; full size glass door
  • 120V, 2,000 W, 16.7 A, NEMA 5-20 plug
  • 25-1/4" W x 30-3/4" D x 71" H on 5" casters, 2 with brakes
  • 20 gauge polished stainless; UL listed, NSF Standard 4

Specifications

ManufacturerVulcan
Model NumberVP18
SeriesNon-Insulated Heated Holding & Proofing Cabinet
Shipping Weight236 lb.
Width25-1/4"
Depth30-3/4"
Height71"
Capacity18 Pans 18" x 26" or 36 Pans 12" x 20" x 2-3/4"
RackingPan Supports Adjustable on 3" Centers, 10 Pairs of Tray Slides
Voltage120V
Phase1
Watts2,000 W
Amps16.7 A
Plug TypeNEMA 5-20P
Temperature RangeAmbient to 190°F
Control TypeDial Thermostat, Proof/Hold Switch, Fan On/Off Switch, Thermometer
Proofing1/2 Gallon Water Pan, Drip Trough, Removable Condensation Pan
Exterior20 Gauge Polished Stainless Steel, Non-Insulated
DoorFull Size Glass Door, Field Reversible
Casters5", 2 Swivel With Brakes, 2 Rigid
CertificationsUL, NSF
SanitationClassified by UL to NSF Standard 4
Warranty1 Year Limited Parts and Labor
Element Warranty10-Year Parts on Heating Elements After First Year

Resources & Documents

Specs

Manufacturer Vulcan
Model Number VP18
Series Non-Insulated Heated Holding & Proofing Cabinet
Shipping Weight 236 lb.
Width 25-1/4 Inches
Depth 30-3/4 Inches
Height 71 Inches
Capacity 18 Pans 18" x 26" or 36 Pans 12" x 20" x 2-3/4"
Racking Pan Supports Adjustable on 3" Centers10 Pairs of Tray Slides
Voltage 120 Volts
Phase 1
Watts 2,000 W
Amps 16.7 Amps
Plug Type NEMA 5-20P
Temperature Range Ambient to 190 Degrees F
Control Type Dial ThermostatProof/Hold SwitchFan On/Off SwitchThermometer
Proofing 1/2 Gallon Water PanDrip TroughRemovable Condensation Pan
Exterior 20 Gauge Polished Stainless Steel, Non-Insulated
Door Full Size Glass Door, Field Reversible
Casters 5", 2 Swivel With Brakes, 2 Rigid
Certifications UL, NSF
Sanitation Classified by UL to NSF Standard 4
Warranty 1 Year Limited Parts and Labor
Element Warranty 10-Year Parts on Heating Elements After First Year

Certifications

UL
NSF
Call

Description

One mobile cabinet that proofs dough and then holds hot food, with a glass door to watch the load.

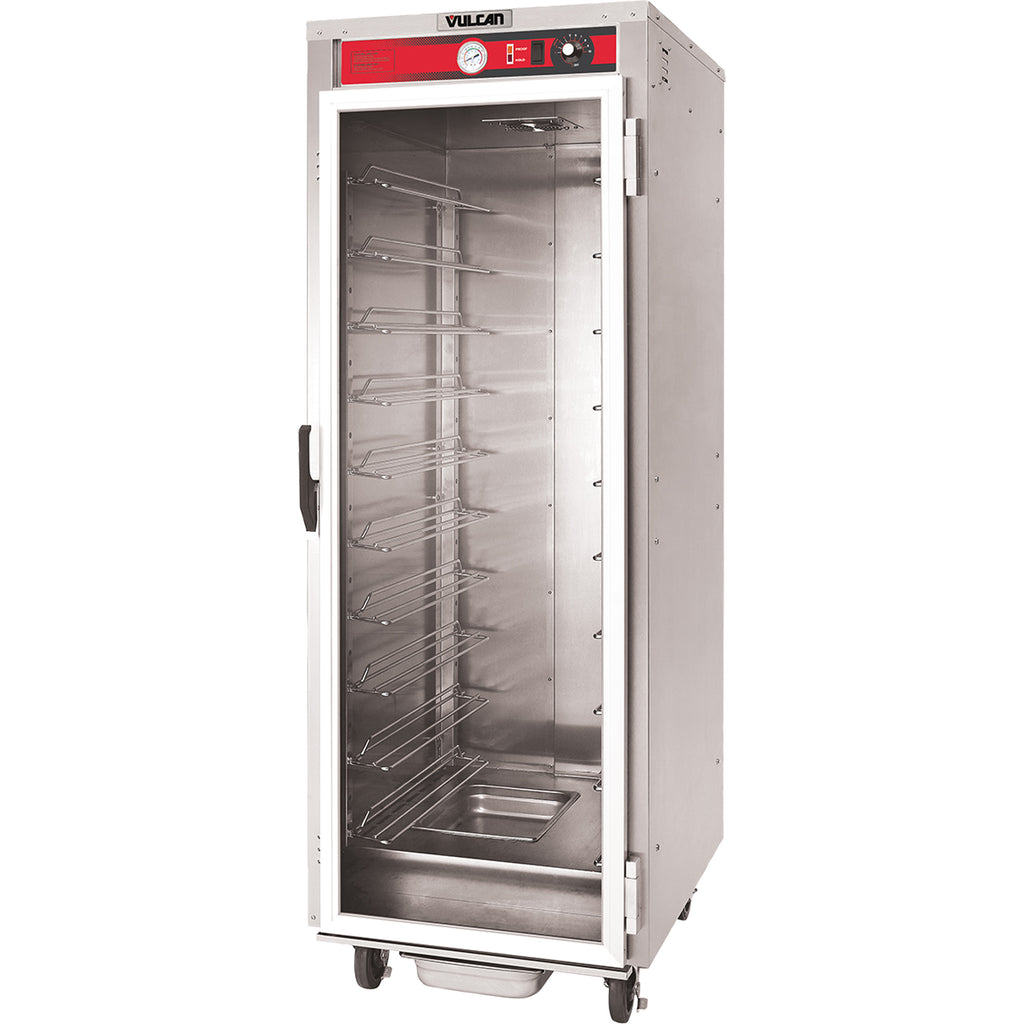

Vulcan VP18 glass door holding and proofing cabinet, front angle view

The Vulcan VP18 is a non-insulated heated holding and proofing cabinet for eighteen 18" x 26" sheet pans or thirty-six 12" x 20" pans. A switch changes it from proofing to holding, a 1/2 gallon water pan adds moisture for proofing, and a dial thermostat runs from ambient to 190°F. A fan and air tunnel spread the heat evenly.

Will it fit · Will it plug in

Outside size
25-1/4" W x 30-3/4" D x 71" H
Power
120V, single phase, 2,000 W, 16.7 A; top-mounted cord with NEMA 5-20 plug
Capacity
18 x 18" x 26" sheet pans or 36 x 12" x 20" x 2-3/4" pans
Shipping weight
236 lb.

The NEMA 5-20 plug needs a 20 amp, 120V receptacle.

Proof or hold

A switch changes the cabinet from proofing to holding; the dial thermostat adjusts from ambient to 190°F.

Moisture for proofing

A 1/2 gallon water pan, drip trough and removable condensation pan on the bottom of the cabinet.

Adjustable racking

Pan supports adjust on 3" centers and lift out for cleaning; ten pairs of tray slides are included.

Glass door

Full size glass door with field reversible heavy duty hinges, latch and gaskets shows the contents.

Top controls

Fan on/off switch, thermostat and thermometer sit on top, away from mops and feet.

Delivery and setup

  • Free shipping on this item. See our shipping policy for delivery details.
  • Plugs into a 120V NEMA 5-20 outlet; it draws 16.7 A.
  • Inspect the crate for damage before you sign, and note any damage on the delivery receipt.

Questions buyers ask

What outlet does it need?

A 120V, 20 amp receptacle for the NEMA 5-20 plug; it draws 16.7 A (2,000 W). Canadian units come with a 5-30 plug.

Can it proof dough?

Yes. A switch changes it from proofing to holding, and it includes a 1/2 gallon water pan for proofing.

How many pans fit?

Eighteen 18" x 26" sheet pans or thirty-six 12" x 20" x 2-3/4" steam table pans. It ships with ten pairs of tray slides.

Is it insulated?

No. It is a non-insulated cabinet.

What warranty does Vulcan give?

One year limited parts and labor. After the first year, a 10-year parts warranty on the heating elements.

18 Sheet PansOr 36 12" x 20" pans.
Proof or HoldSwitch, plus 1/2 gal water pan.
120V, 16.7 ANEMA 5-20 plug.
UL, NSF 4Per Vulcan's spec sheet.

Specs

Manufacturer Vulcan
Model Number VP18
Series Non-Insulated Heated Holding & Proofing Cabinet
Shipping Weight 236 lb.
Width 25-1/4 Inches
Depth 30-3/4 Inches
Height 71 Inches
Capacity 18 Pans 18" x 26" or 36 Pans 12" x 20" x 2-3/4"
Racking Pan Supports Adjustable on 3" Centers10 Pairs of Tray Slides
Voltage 120 Volts
Phase 1
Watts 2,000 W
Amps 16.7 Amps
Plug Type NEMA 5-20P
Temperature Range Ambient to 190 Degrees F
Control Type Dial ThermostatProof/Hold SwitchFan On/Off SwitchThermometer
Proofing 1/2 Gallon Water PanDrip TroughRemovable Condensation Pan
Exterior 20 Gauge Polished Stainless Steel, Non-Insulated
Door Full Size Glass Door, Field Reversible
Casters 5", 2 Swivel With Brakes, 2 Rigid
Certifications UL, NSF
Sanitation Classified by UL to NSF Standard 4
Warranty 1 Year Limited Parts and Labor
Element Warranty 10-Year Parts on Heating Elements After First Year

Certifications

UL
NSF
