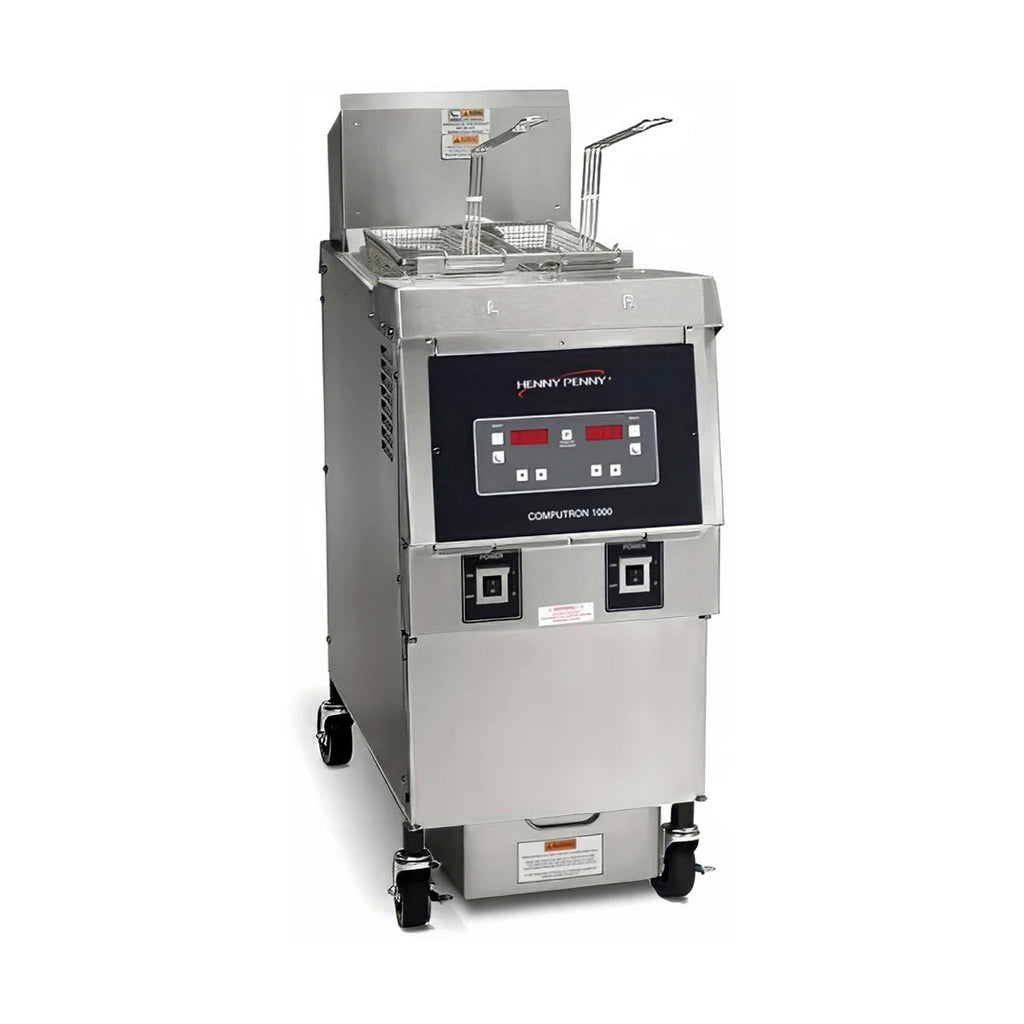

Henny Penny OFE321.11 17-3/8" 1-Well Electric Open Fryer, 65 lb. Oil, 14.4 kW, 208V 3-Phase, Computron 1000, Built-In Filtration
A 17-3/8" single-well electric open fryer with built-in filtration for high-volume frying.
The Henny Penny OFE321.11 is a 320 Series open fryer for quick-service kitchens, chicken programs, restaurants and caterers that fry in volume. Its full vat holds 65 lb. of oil, heated by immersed elements rated 14.4 kW. A built-in filter system filters the hot oil and returns it to the vat in minutes, and the Computron 1000 control handles cook timing. It stands 17-3/8" wide on 4 heavy-duty casters, 2 locking.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 17-3/8" width. Plan the electrical connection and the 30" of front space for the filter pan before delivery.
The filter system filters hot oil and returns it to the vat in minutes, so staff never carry hot oil. Frequent filtering extends oil life and keeps food quality steady.
Immersed elements, 14.4 kW per well, bring the oil back to temperature quickly between loads.
The Computron 1000 is a simple programmable control with an LED time and temperature display and up/down arrows.
Heavy-duty stainless steel vats with a cold zone below the elements, high-limit protection and a stainless steel cabinet on locking casters.
This configuration is 208V, 3-phase, 60 Hz. Each well needs its own connection, drawing 39.9 amps with a full vat. Henny Penny does not list a cord and plug for it, so plan on a qualified electrician.
It is 17-3/8" wide, 37-3/8" deep and 44" high. Leave 30" in front to remove the filter pan. It ships crated at 40" x 25" x 53".
65 lb. (30 L) of oil. The cold zone below the elements helps extend oil life.
No. It is a programmable digital control with an LED time and temperature display and simple up/down arrows.
The fryer filters the hot oil and returns it to the vat in minutes, with no separate pump or pan to handle. It ships with a filter screen and filter envelope; Henny Penny does not cover filter system failures caused by non-OEM filters.
Henny Penny covers parts for 2 years and labor, including up to 200 miles round-trip travel, for 1 year from installation; baskets are covered for 90 days. The fry pot is covered up to 7 years from manufacture: fully replaced for the first 3 years, then replaced or credited with freight and labor on the owner. Register the fryer online with Henny Penny within 10 days of installation or the warranty is not honored.
Specs
| Manufacturer | Henny Penny |
|---|---|
| Model Number | OFE321.11 |
| Base Model | OFE-321 |
| Configuration Code | .11 |
| Series | 320 Series Electric Open Fryer |
| Quantity | 1/Each |
| Shipping Weight | 281 lb. |
| Crated Size | 40" L x 25" D x 53" H31 cu. ft. |
| Width | 17-3/8 Inches |
| Depth | 37-3/8 Inches |
| Height | 44 Inches |
| Front Clearance | 30 Inches to Remove the Filter Pan |
| Voltage | 208 Volts |
| Phase | 3 |
| Hertz | 60 |
| Amps | 39.9 Amps per Well |
| Wiring | 3 Wires + GroundSeparate Electrical Connection for Each Well |
| Cord and Plug | Contact Henny PennyUnits Shipped Without Cord and Plug Need One Installed On Site by a Qualified Electrician |
| Heating | Immersed Electric Elements |
| Power | 14.4 kW |
| Capacity | 65 lb. Oil |
| Oil Capacity per Full Vat | 65 lb. or 30 L |
| Oil Capacity per Split Vat | 25 lb. or 12 L |
| Number of Wells | 1 |
| Vat Type | Full Vats |
| Cold Zone | Below the Heating Elements |
| Safety | High-Limit Temperature Protection |
| Controls | Computron 1000ProgrammableLED Time and Temperature DisplaySimple Up/Down Arrows |
| Filtration | Built-In, Filters and Returns Hot OilSingle Vat/Sequential Filter Pan |
| Fry Vats | Heavy-Duty Stainless Steel |
| Exterior | Stainless Steel |
| Casters | 4 Heavy-Duty Casters, 2 Locking |
| Ships With | Fry Baskets: 1 Full or 2 Half per Well, Chosen at Order1 Basket Support per VatFilter Screen and Filter Envelope |
| Henny Penny Options | Fryer Shortening ShuttleFry Well CoversFilter Rinse Hose or Direct Connect Shortening Disposal |
| Certifications | cULus, UL EPH, CE, ENERGY STAR |
| ENERGY STAR Listing | OFE-32#85% Cooking Energy Efficiency, 84% Split Vat |
| Warranty | 2 Years Parts, 1 Year Labor |
| Fry Pot Warranty | 7 Years |
| Warranty Detail | Labor and Up to 200 Miles Round-Trip Travel in Year 1Baskets 90 DaysRegister Online Within 10 Days of Installation |
| Fry Pot Coverage | Years 1-3: Replaced, Parts, Labor and Freight CoveredYears 4-7: Replaced or Credited, Owner Pays Freight and Labor |
