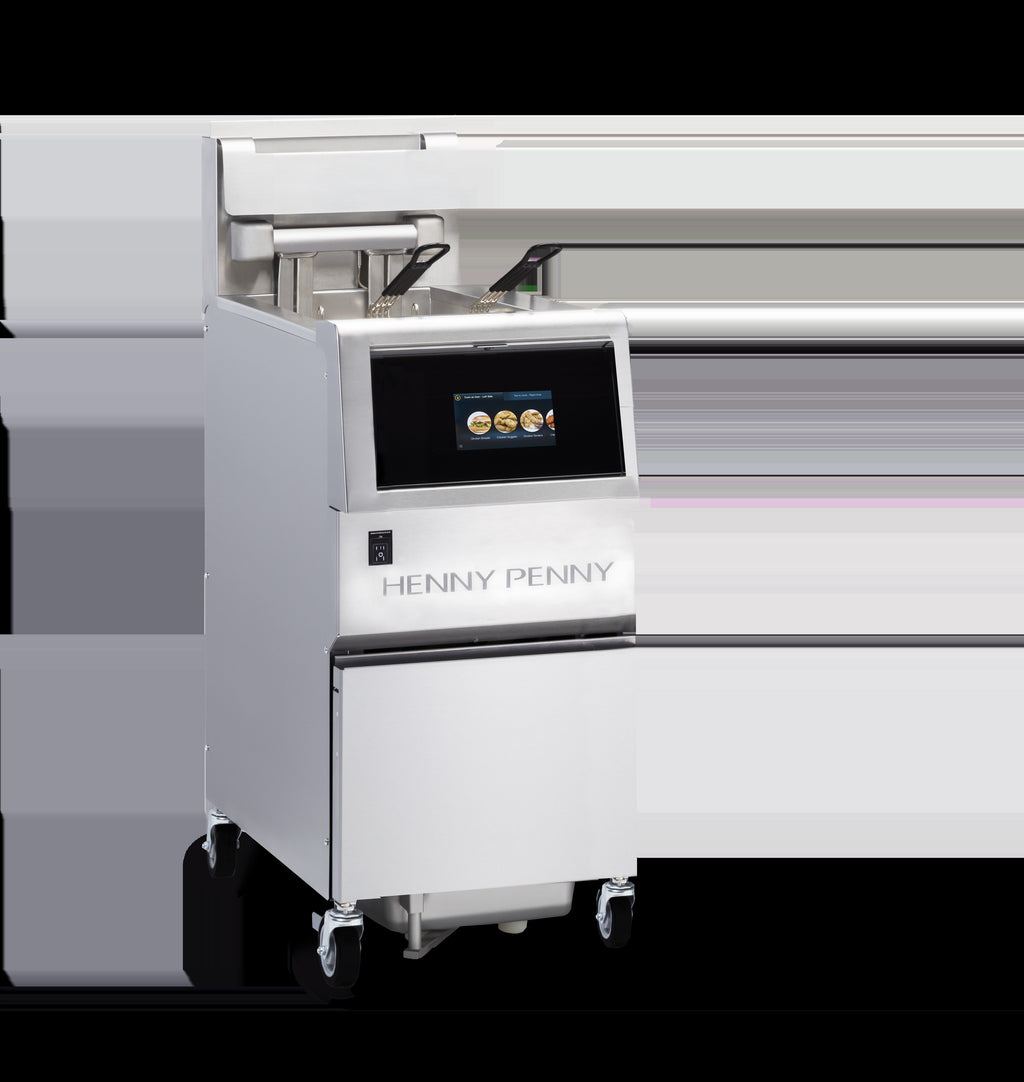

Henny Penny OFG511.0 16.63" F5 1-Well Gas Open Fryer, 30 lb Vat, 75,000 BTU, 7" Touchscreen, Auto Top-Off, Built-In Filtration, ENERGY STAR
A 1-well gas open fryer that cooks in 30 lb vats, tops off its own oil and filters a vat in as little as 3 minutes.
The Henny Penny OFG511.0 is the OFG 511 from the F5 series, made for restaurants and chains that fry all day and want to use less oil. Henny Penny says its 30 lb vats cook the same load as 50 lb vats with 40% less oil. The fryer has one well, 75,000 BTU/hr of gas heat, automatic oil top-off and a 7" touchscreen control, and it plugs into a standard 120V outlet.
Measure every doorway and turn on the delivery path; the narrowest side of the fryer is its 16.63" width, and the crate is 21" on its narrowest side.
Henny Penny says the 30 lb vats cook the same size load as 50 lb vats with 40% less oil (ASTM throughput tests).
A sensor keeps the oil at the right level by adding fresh oil from a jug-in-box or reservoir in the cabinet, which helps oil last longer.
Three touches or fewer start filtering; the 8 gal per minute pump drains, filters, rinses and returns hot oil in as little as 3 minutes.
A recessed 7" touch-and-swipe screen holds up to 99 cooking programs, with eco and preheat modes, load compensation and filter tracking; HennyLink connectivity is offered in the US and Canada.
A 0.75" gas connection for 75,000 BTU/hr (natural gas or LP), and a standard 120V outlet: the fryer draws 12.2 A on a NEMA 5-15P plug.
Henny Penny builds the F5 for natural gas or LP. Choose your gas in the options above the Add to Cart button.
The fryer is 16.63" wide, 36.9" deep and 46.58" high; the crate is 21" x 41" x 55" and weighs 340 lb. Measure the delivery path first. Leave 6" behind it, 2" at the sides next to combustible materials or other hot equipment, and 30" in front to remove the drain pan.
No. Henny Penny lists fry baskets as an additional charge (1 full or 2 half baskets per well); call us to add them to your order.
A sensor monitors the oil level in each vat and adds fresh oil from a jug-in-box or reservoir inside the cabinet, so the crew does not add oil by hand.
Yes. Bulk oil fill, disposal, or both are offered in the options above the Add to Cart button.
Henny Penny's limited warranty covers parts for 2 years and labor for 1 year from installation, and the fry pot for up to 7 years from manufacture: years 1-3 with parts, labor and freight covered, years 4-7 as a replacement pot or credit with freight and labor paid by the owner. Register the fryer on the Henny Penny website within 10 days of installation, or the warranty is not honored.
Specs
| Manufacturer | Henny Penny |
|---|---|
| Model Number | OFG511.0 |
| Base Model | OFG 511, F5 Series Open Fryer |
| Quantity | 1/Each |
| Shipping Weight | 340 lb. |
| Crated Size | 21" W x 41" D x 55" H |
| Crated Volume | 27 cu. ft. |
| Width | 16.63 Inches |
| Depth | 36.9 Inches |
| Height | 46.58 Inches |
| Required Clearances | Sides 2" from combustible materials or other heat-producing equipment, otherwise noneBack 6" for airflow and connectionsFront 30" to remove the drain panTop: flue duct must be free to discharge combustion gas |
| Fuel | Natural Gas or LP |
| BTU | 75,000 BTU/H |
| Burners | 4 |
| Heat Input | 19.8 kW |
| Gas Connection | 0.75 in. Gas Connection |
| Voltage | 120 Volts |
| Amps | 12.2 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Wire | 2+G |
| Number of Wells | 1 |
| Capacity | 30 lb per Full Vat |
| Oil Capacity | Full vat 30 lb, 16 qt or 15 LSplit vat 15 lb, 7.9 qt or 7.5 L |
| Controls | 7" Full-Color Touch-and-Swipe ScreenUp to 99 Cooking ProgramsEco and Preheat ModesLoad Compensation and Proportional ControlFilter TrackingMultiple LanguagesUSB Port per Well |
| Oil Top-Off | Automatic, from a jug-in-box or reservoir inside the cabinet |
| Filtration | Built-In Simple Touch Filtration, as little as 3 minutes per vat8 gal per minute filter pumpOil drain pan with 4 glides and a sensor that warns when it is not in place |
| Connectivity | HennyLink, US and Canada |
| Safety | High-Limit Temperature Protection with Reset Switch |
| Fry Vats | Heavy-Duty Stainless Steel |
| Exterior | Stainless Steel |
| Casters | 4 Heavy-Duty Casters, 2 Locking |
| Shipped with Unit | 1 basket support per vatInstallation and operating manual |
| Fry Baskets | Additional charge per Henny Penny: 1 full or 2 half baskets per well |
| Options on This Page | Bulk oil fill and/or disposalGas typeAltitude |
| Henny Penny Accessories Sold Separately | ODS 310 or ODS 460 oil disposal shuttleFry well coversPrime filter packets, HD pads or powderSmartFilter paperPrime CleanerOil dispensing jugGas line |
| Certifications | cULus, UL EPH, CE, ENERGY STAR |
| Warranty | 2 Years Parts, 1 Year Labor |
| Fry Pot Warranty | 7 Years |
| Warranty Terms | Parts 2 years and labor 1 year from installationLabor includes up to 200 miles round-trip travelBaskets 90 days |
| Fry Pot Coverage | Runs from the date of manufactureYears 1-3: replaced with parts, labor and freight coveredYears 4-7: replacement pot or credit, owner pays freight and labor |
| Warranty Registration | Register the fryer online with Henny Penny within 10 days of installation |
