Description

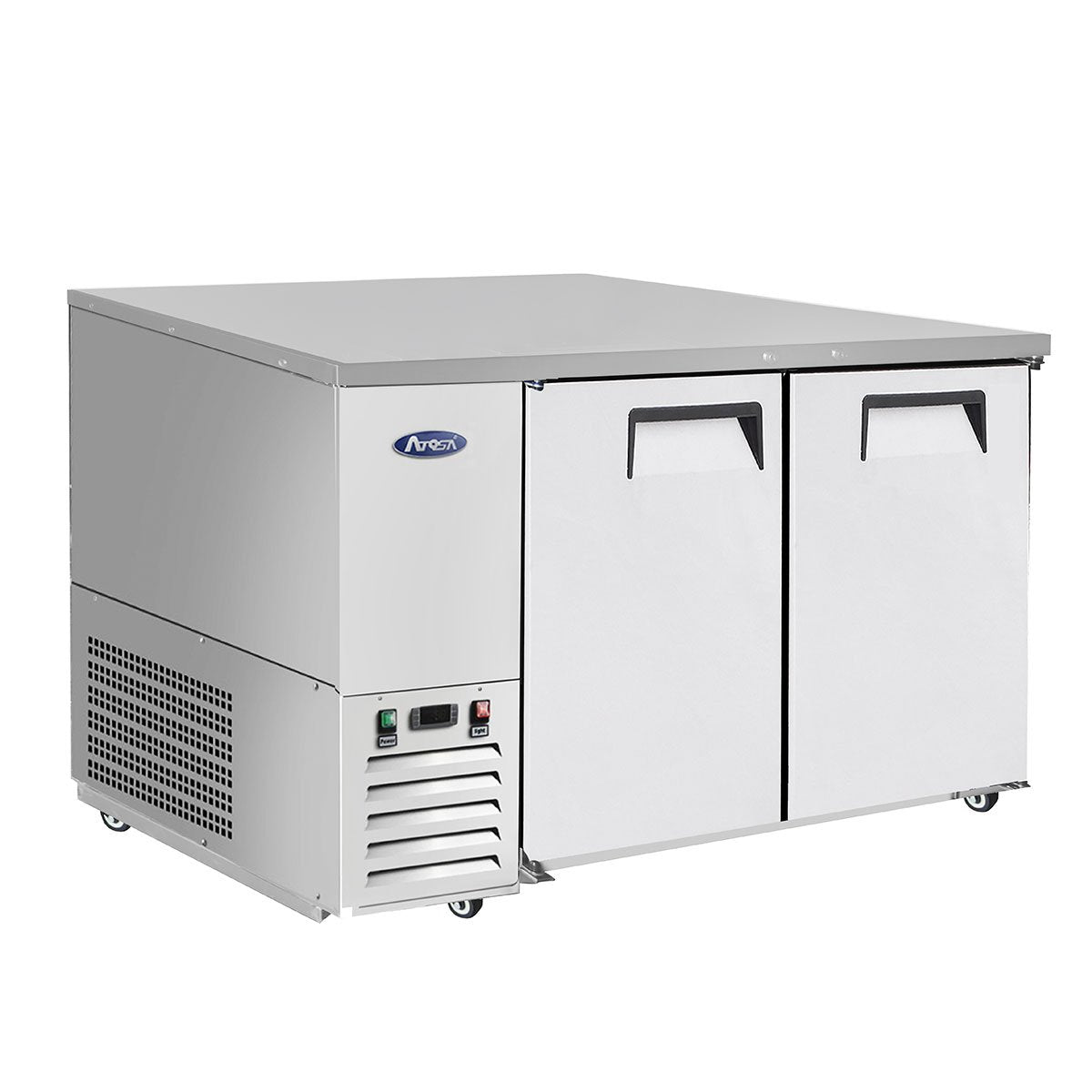

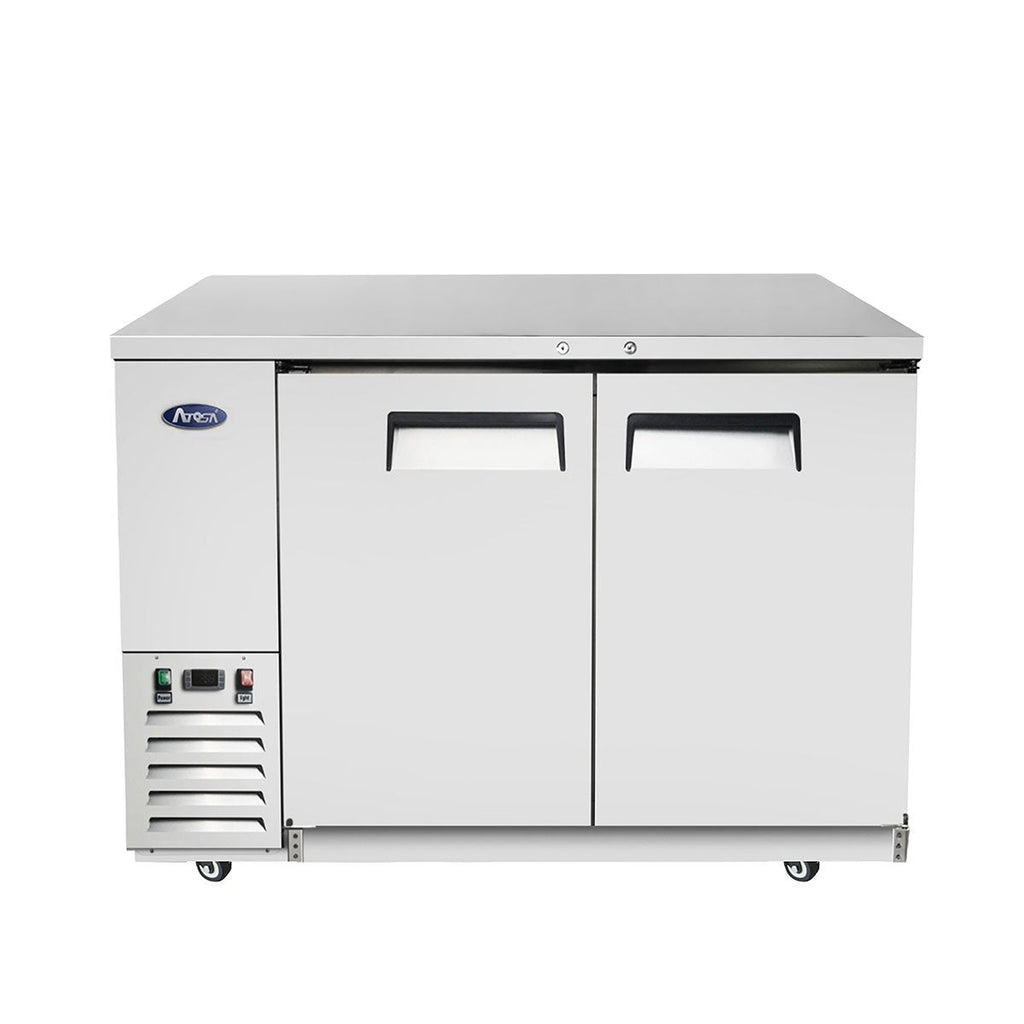

The Atosa MBB48GR is a 48-inch, two-door back bar cooler with 13.4 cubic feet of refrigerated storage held at 35°F to 38°F. It is built for bars, restaurants and cafes that need bottled beer, mixers and garnishes within arm's reach behind the counter. Stainless steel inside and out, R290 refrigerant and a slide-out compressor make it easy to keep clean and service.
Key Features
- 13.4 cu. ft. of storage behind two solid, locking doors keeps bottles, cans and backup stock secure after hours.
- Holds 35°F to 38°F, set and monitored on an electronic temperature controller mounted on the front panel.
- Embraco compressor running on R290, a natural hydrocarbon refrigerant.
- Slide-out compressor assembly gives technicians quick access for condenser cleaning and service.
- Stainless steel exterior and interior wipes down easily in a busy bar environment.

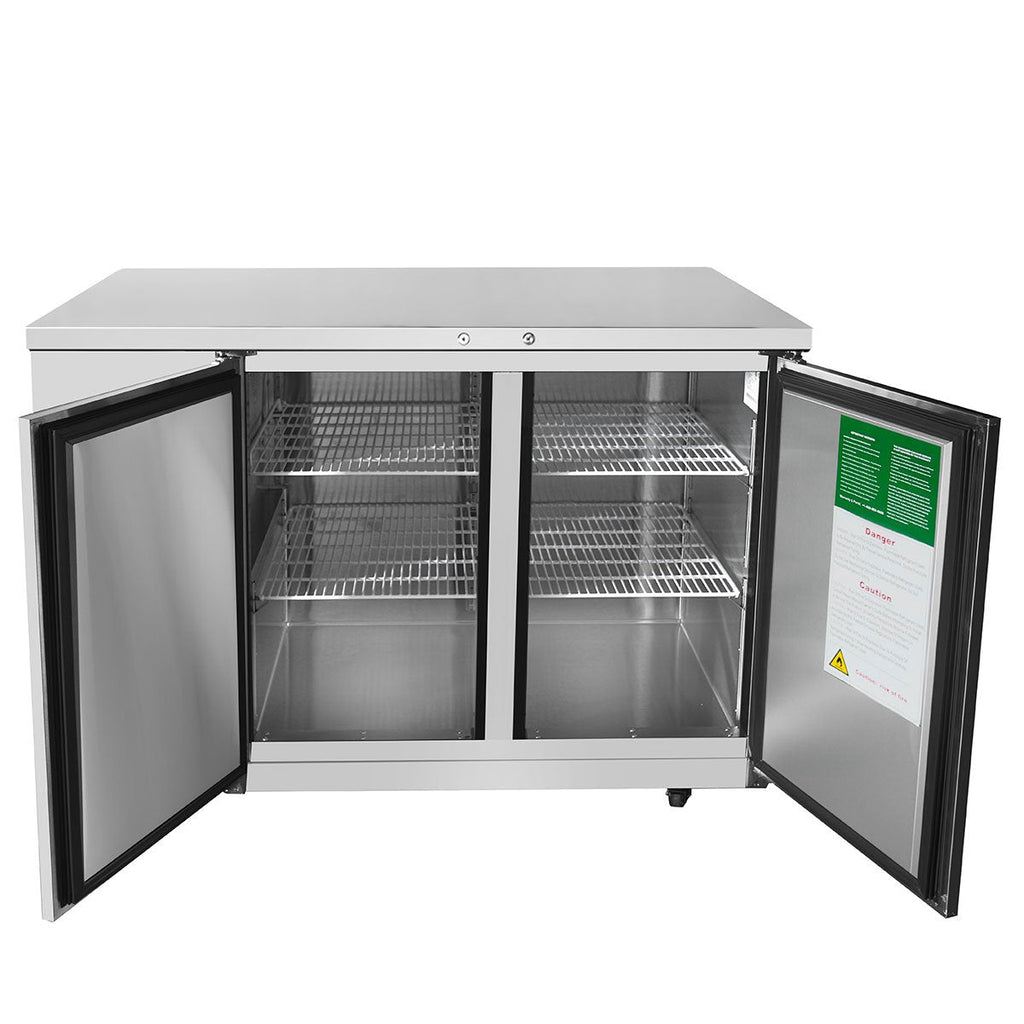

- Four pre-installed epoxy-coated shelves resist moisture and corrosion.
- Recessed door handles keep the front flush, and magnetic gaskets seal each door without latches.
- Interior lighting helps staff find product quickly during service.
- Ships on pre-installed 2.5 in casters; 1.2, 1.5, 4 or 5 in casters can be fitted to suit counter height.
- Plugs into a standard 115V outlet with a NEMA 5-15P cord, drawing 2.3 rated amps.
Specifications
| Model | MBB48GR |
|---|---|
| Product type | Back bar cooler, 2 solid swing doors |
| Exterior dimensions (W × D × H) | 48 in × 28-1/10 in × 40-1/8 in |

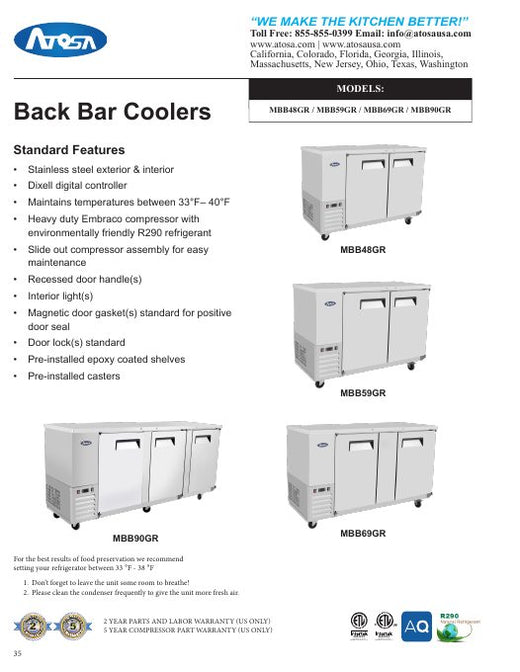

| Depth with doors open | 45-1/8 in (per spec sheet plan view) |
| Capacity | 13.4 cu. ft. |
| Doors | 2, solid, with locks |
| Shelves | 4 epoxy-coated wire shelves |
| Temperature range | 35°F – 38°F |
| Controller | Electronic temperature controller |
| Compressor | Embraco, 1/7 HP, slide-out assembly |
| Refrigerant | R290 (hydrocarbon) |
| Electrical | 115V / 60Hz / 1-phase |
| Rated current | 2.3 A |
| Input power | 260 W (per Atosa instruction manual) |
| Plug | NEMA 5-15P |
| Casters | 2.5 in, pre-installed (1.2, 1.5, 4 or 5 in casters can be fitted) |
| Construction | Stainless steel exterior and interior |
| Net / shipping weight | 192 lb / 240 lb |
| Certifications | ETL Listed, cETLus (UL 471; CSA C22.2 No. 120) |
| Warranty | 3 years parts and labor; 5 years on the compressor (Atosa) |
Ideal For
- Bars and taprooms storing bottled and canned beer under the back counter
- Restaurant bars keeping mixers, juices and garnishes cold near the service well
- Cafes and coffee bars holding milk and dairy alternatives at the espresso station
- Hotel lounges, clubs and event venues that need lockable cold storage
- Catering kitchens and banquet bars needing a mobile, plug-in cooler
Frequently Asked Questions
How much does the Atosa MBB48GR hold?
Atosa rates the MBB48GR at 13.4 cubic feet of storage across two sections, with four epoxy-coated shelves (two per section) installed at the factory.
What temperature does the MBB48GR hold?
The cooler is designed to maintain 35°F to 38°F, which is the range Atosa recommends for this back bar series. The set point is adjusted on the electronic controller on the front of the unit.
What power connection does it need?
The MBB48GR runs on 115V/60Hz/1-phase, draws 2.3 rated amps, and ships with a cord and NEMA 5-15P plug. Atosa's manual calls for a properly grounded outlet and advises against extension cords or adapters.
How much clearance does it need for ventilation?
Atosa's instruction manual shows at least 20 cm (about 8 in) of open space above the unit and at least 5 cm (about 2 in) at the sides, and warns against blocking ventilation openings. Install it away from heat sources and direct sunlight.
Will it fit under a standard bar counter?
The cabinet measures 48 in wide, 28-1/10 in deep and 40-1/8 in high on its 2.5 in casters, so compare that height against the opening under your bar top and allow for the ventilation space Atosa specifies.
How do I keep the MBB48GR running efficiently?
Atosa recommends cleaning the condenser regularly (the manual suggests about every four months) and wiping the interior and exterior with a mild detergent and a soft cloth. The compressor assembly slides out to make that service easier.
