Description
The Atosa MCF8705GR is a 27-inch, one-section glass door merchandiser refrigerator with 19.1 cu. ft. of capacity and a bottom-mounted R290 refrigeration system. It is built for convenience stores, cafés, delis and bars that need to keep bottled drinks and grab-and-go items visible and held between 35°F and 38°F. It runs on standard 115V power with a NEMA 5-15P plug, so it can go wherever a regular outlet is available.
Key Features
- 19.1 cu. ft. of storage on four pre-installed epoxy-coated wire shelves, with extra shelves available (part W0402394, includes 4 shelf clips)
- Double-pane glass door and LED interior lighting put product on display while helping hold temperature
- Bottom-mount Embraco compressor using R290 natural refrigerant; the low-mounted condensing unit is easy to reach for cleaning and service
- Electronic temperature controller holds 35°F–38°F, the range Atosa recommends for food preservation
- Self-closing door closes on its own when opened 90° or less and stays open past 90° for restocking
- Standard door lock helps control access to drinks and inventory
- Recessed door handle and magnetic door gasket for a clean front and a tight seal
- Stainless steel exterior and interior for durability and easy wipe-down
- Four 4-inch pre-installed casters (two with brakes) for moving the unit to clean behind it
- Plugs into a standard 115V outlet with the included NEMA 5-15P cord

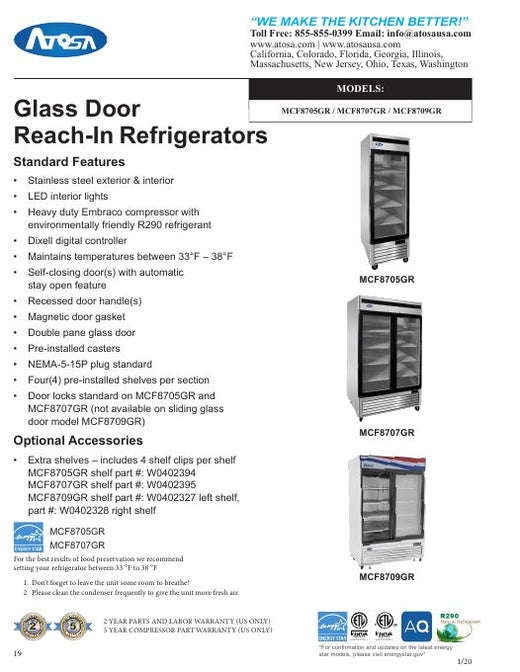

Specifications
| Model | MCF8705GR |
|---|---|
| Type | Bottom-mount, one glass door merchandiser refrigerator |
| Door hinge | Right-hand (left-hand version: MCF8705GRL) |
| Exterior dimensions (W × D × H) | 27 × 31 7/10 × 83 1/10 in (27 × 31.7 × 83.1 in) |
| Depth with door open | 56 in (per manufacturer plan view) |
| Capacity | 19.1 cu. ft. |
| Doors | 1 swing glass door, double pane, with lock |
| Shelves | 4 epoxy-coated wire shelves (extra shelf part W0402394) |
| Temperature range | 35°F – 38°F |
| Controller | Electronic temperature controller |
| Compressor | Embraco, 1/7 HP, bottom mount |
| Refrigerant | R290 (3.9 oz charge per owner's manual) |
| Electrical | 115V / 60 Hz / 1-phase |
| Rated current | 2.1 A |
| Input power | 250 W (per owner's manual) |
| Plug | NEMA 5-15P (15A/125V) |
| Casters | 4 in, pre-installed (2 with brakes) |
| Lighting | LED interior |
| Construction | Stainless steel exterior and interior |
| Net / gross weight | 293 lb / 326 lb |
| Certifications | cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation, ENERGY STAR |
| Warranty | 3 years parts and labor; 5 years compressor parts |
Ideal For
- Convenience stores and gas station markets merchandising canned and bottled beverages
- Cafés, delis and bakeries displaying grab-and-go drinks, salads and sandwiches
- Bars and restaurants that need a visible back-of-house or front-of-house beverage cooler
- Hotel markets, office pantries and cafeterias offering self-serve cold items
Frequently Asked Questions
What are the dimensions of the Atosa MCF8705GR?
The exterior measures 27 in wide × 31 7/10 in deep × 83 1/10 in high. With the door open, Atosa's plan view shows an overall depth of 56 in, so plan aisle space accordingly.
What temperature does the MCF8705GR hold?
It maintains 35°F to 38°F, which is also the setting range Atosa recommends for best food preservation.
What power and plug does it need?
It runs on 115V/60Hz/single-phase, draws 2.1 A, and comes with a NEMA 5-15P plug (15A/125V) for a standard outlet.
How much clearance does it need?
Atosa asks that the unit be given room to breathe and that ventilation openings be kept clear, but the spec sheet does not list a specific clearance figure. Follow the owner's manual and leave ventilation openings unobstructed.
Does the door lock, and which side is it hinged on?
Yes, a door lock is standard. The MCF8705GR is hinged on the right; Atosa offers the same cabinet with a left-hand hinge as model MCF8705GRL.
How do I keep it running efficiently?
Atosa recommends cleaning the interior monthly with a food-safe detergent and cleaning the condenser with a dry brush or vacuum about every 4 months.
